Buy Tripp Lite Monitor wall mount Zubehör TFT/LCD-TV 1 Display(s) 33,0 cm (13") - 68,6 cm (27") Black Tiltable

Wall mounting bracket for monitors by Tripp Lite, black colour, suitable for various screen sizes, robust metal construction.

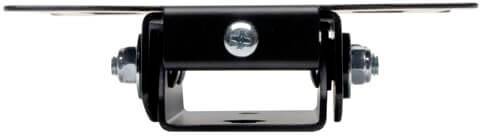

Metal bracket with screws and joints for adjusting or securing objects to flat surfaces.

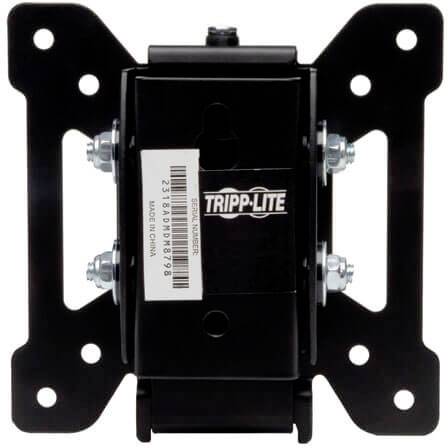

'Tripp Lite' Black Metal Wall Mount with Screw Holes and Mounting Hardware, Suitable for Screen Mounting.

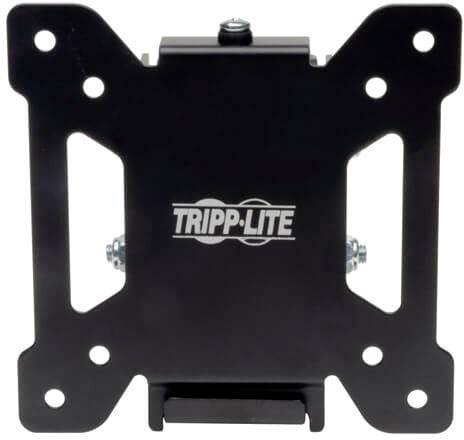

Black Tripp Lite monitor mount, square-shaped, with mounting holes.

1/5

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 42.01 / piece)

€ 42.01

plus VAT.

Report legal concerns

Tripp Lie tilting wall bracket for 13 "to 27" TVs and monitors DWT1327S

Highlights & Details

Holder type: TiltableSupports VESA standards up toSuitable for displays sized (range): 33,0 cm (13") - 68,6 cm (27")Load capacity (max.) 40 kg

Technical specifications

Product type: Monitor wall mount

Suitable for: 33,0 cm (13") - 68,6 cm (27")

Add-on displays: 1 Display(s)

Holder type: Tiltable

: No

Max. load capacity: 40 kg

: No

: 100 x 100 mm
100 x 75 mm
75 x 75 mm

Tilt range (bottom): -15°

Tilt range (top): 10°

Width: 196 mm

Height: 120 mm

Depth: 41 mm

Factory colour: Black

Weight: 410 g

Dim: (W x H x D) 196 x 120 x 41 mm

Suitable for: 33,0 cm (13")
33,8 cm (13,3")
34,3 cm (13,5")
35,3 cm (13,9")
35,6 cm (14")
35,8 cm (14,1")
38,1 cm (15")
38,4 cm (15,1")
39,1 cm (15,4")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
46,0 cm (18,1")
46,7 cm (18,4")
47 cm (18,5")
47,0 cm (18,5")
48 cm (18,9")
48,3 cm (19")
48,5 cm (19,1")
49,5 cm (19,5")
50,8 cm (20")
51,1 cm (20,1")
53,3 cm (21")
54,1 cm (21,3")
54,6 cm (21,5")
54,9 cm (21,6")
55,9 cm (22")
57,2 cm (22,5")
58,4 cm (23")
59,9 cm (23,6")
60,5 cm (23,8")
61 cm (24")
61 cm (24")
61,2 cm (24,1")
62,2 cm (24,5")
63,5 cm (25")
66 cm (26")
66,0 cm (26")
68,6 cm (27")
Show more

Product type description: Zubehör TFT/LCD-TV

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2258335 Tripp Lite Monitor wall mount Zubehör TFT/LCD-TV 1 Display(s) 33,0 cm (13") - 68,6 cm (27") Black Tiltable

Description

With the VESA-compliant DWT1327S Tilt wall mount, you can wall mount your flat screen TV, monitor or other display. Ideal for classrooms, boardrooms, hotels, bars and restaurants, it fits most flat screens from 13 to 27 inches. An inclination function of -15 ° to +10 ° minimizes the glare and offers a comfortable view from several angles. The flat holder is hidden behind the display for an elegant, professional appearance. Robust all-metal frame with scratch-resistant powder coating supports up to 88 pounds. Supplied fully assembled and can be quickly mounted on the wall using the supplied hardware. Complies with VESA-compatible displays with one of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm.

This text is machine translated.

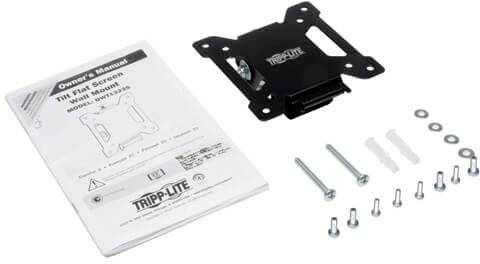

Scope of delivery

DWT1327S tilting wall bracket for 13 "to 27" TVs and monitors
(4) M4 screws
(4) M5 screws
(4) D5 washers
(2) Anchor bolts
(2) Concrete anchor
User manual.
