TRIX H0 22774 H0 series 110 electric locomotive of DB
EAN:
Part number:
Item no:
Highlights & Details
H0 series 110 electric locomotive of DB
- Newly designed pantographs of the DBS 54 type
- Pantographs can be raised/lowered digitally
- Driver's cab lighting is digitally switchable
- Buffer height according to NEM
- Kinematic driven close couplers
- Digital decoder with extensive operating and sound functions
- DCC, mfx and RailCom-enabled
Technical specifications
- Manufacturer part #
22774
- Size
H0
- Power supply system
Digital DC Sound
- LoB/LoC
189 mm
- Connector
NEM pocket with close coupling shifting link
- Type (carriage)
Chassis + metal body
- Train company
DB
- Ditch lights
Three directional ditch lights, two red tail lamps
- Type
Electric locomotive
- Era
IV
- Age category
15 years and over
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045626 TRIX H0 22774 H0 series 110 electric locomotive of DB
Description

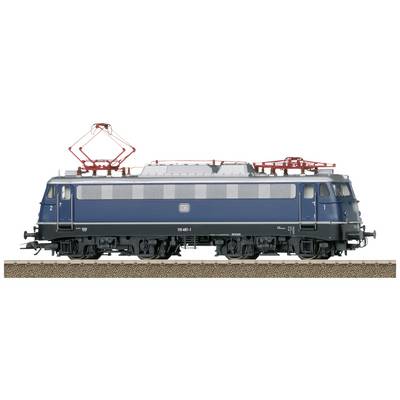

Model: Electric locomotive series 110 of the German Federal Railways (DB). Engine box with aerodynamic front, the so-called crease, with continuous ventilation tape, circulating drip rail and front sided handle bars. Cobalt-blue basic color scheme. Operating number 110 461-1. Operating condition after 1978.

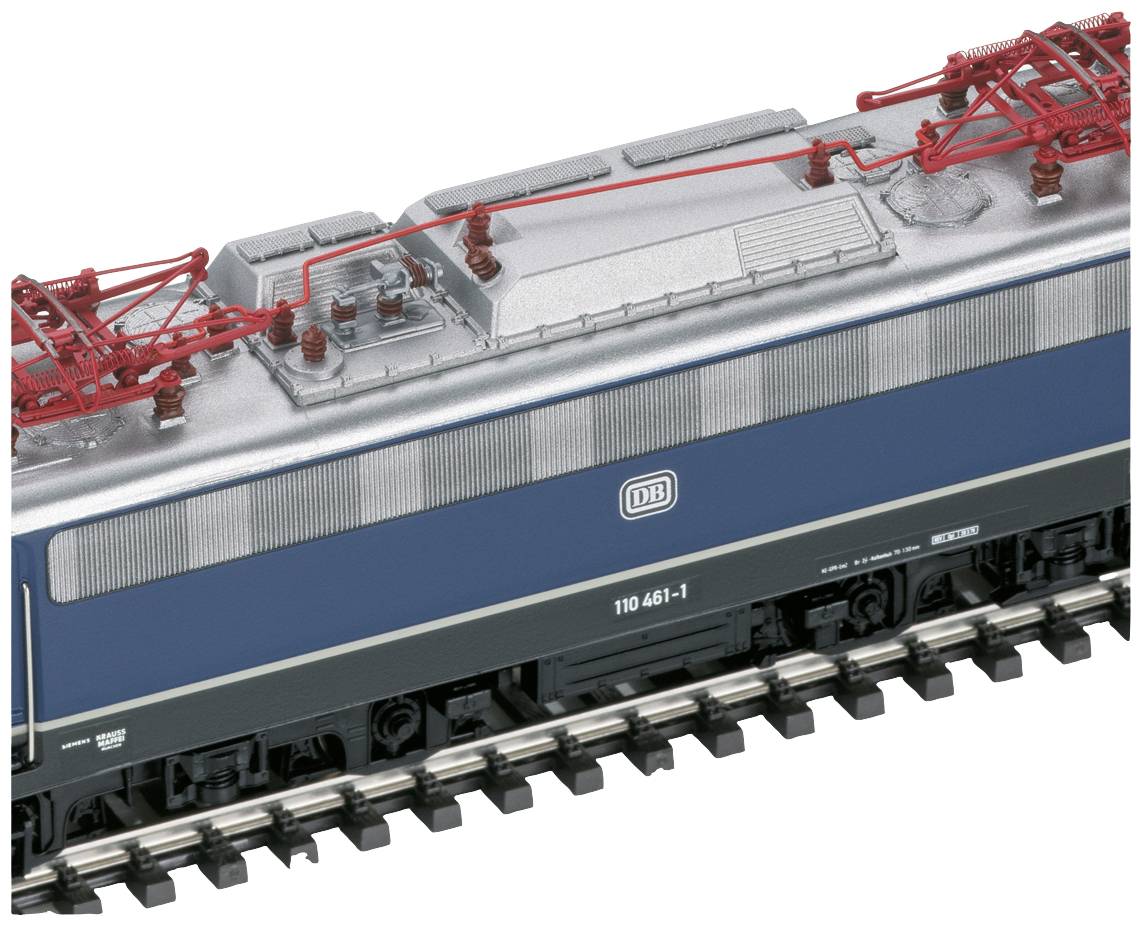

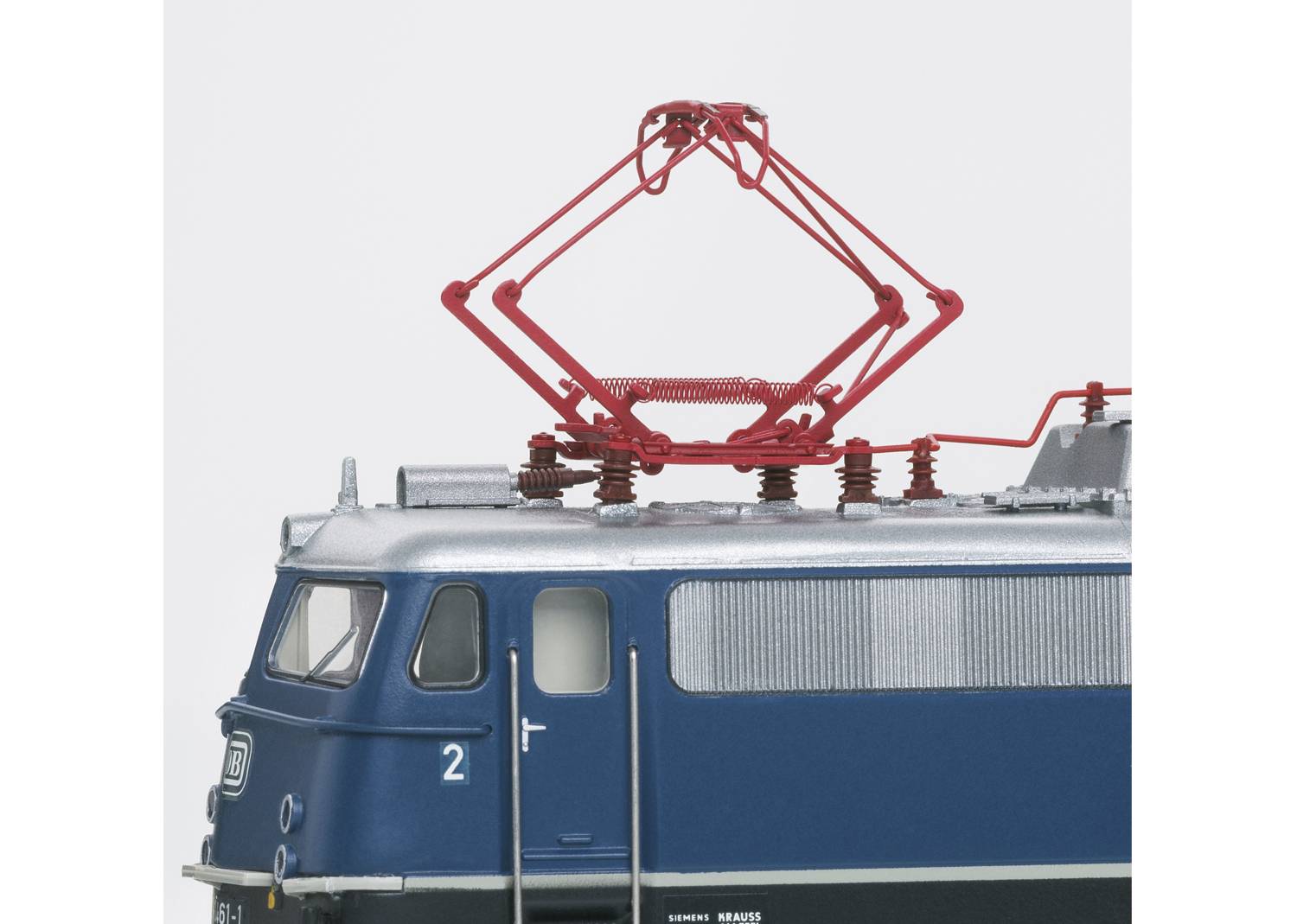

With digital decoder and a wide range of sound features. Regulated high-power drive with flywheel mass installed centrally. All four axles powered by cardan shafts. Traction tyres. Three-light spike signal changes depending upon the direction of travel and two red tail lights conventional in operation, can be switched digitally. Spike signal at loco-side 2 and 1 each can switched separately digitally. Double A light function. Driver's cab lighting is digitally switchable Lighting with maintenance-free warm white and red light emitting diodes (LED). Detailed roof structures with newly designed pantographs of the model DBS 54. Pantographs can be raised/lowered digitally. Many separately applied parts like handle bars, kicking and UIC sockets. Buffer height according to NEM. Kinematic driven close couplers. Brake lines and screw couplings are supplied as separately pluggable parts. Length over buffers 18.9 cm
You will find suitable express train wagons in the Märklin H0 assortment under article number 43914, 43925, 43934 and 43953 with the reference to the required exchange wheel sets. You will find this model in AC version in the Märklin H0 assortment under article number 39125.
