TRIX H0 23120 H0 Passenger wagon ABymb 411 LS of DB
EAN:
Part number:
Item no:
Highlights & Details
H0 Passenger wagon ABymb 411 LS of DB
Technical specifications
- Manufacturer part #
23120
- Size
H0
- Power supply system
DC
- LoB/LoC
282 mm
- Connector
Current-carrying coupler
- Interiors
Interior lighting built in
- Train company
DB
- Ditch lights
Two red tail lamps
- Type
Carriage
- Era
IV
- Age category
15 years and over
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2228920 TRIX H0 23120 H0 Passenger wagon ABymb 411 LS of DB
Description

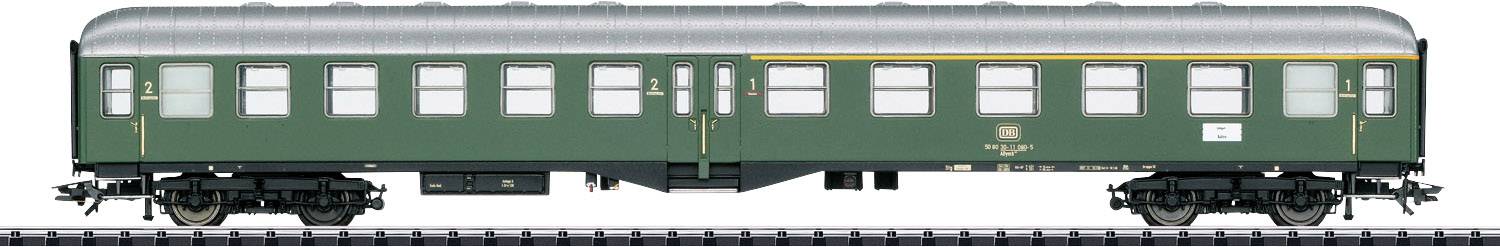

Passenger wagon 1./2. Class of the German Federal Railways (DB) for so-called light express trains (LS). Type ABymb 411. Colloquially also known as the "middle entry car". Design with small tail lights on the front and transmission windows at the entrances at the end of the wagon. Coloring in chromium oxide green. Operating condition circa 1969.
This text is machine translated.
This text is machine translated.
Features
- Standard built-in LED interior lighting and live couplings
- The interior lighting works in conjunction with the central entry control wagon and can be switched on and off digitally via a decoder in the control wagon
- A defined vehicle sequence is specified for this purpose
- Front red transparent tail light inserts at the ends of the wagon
- Type-specific designed chassis/under frame
- Bogies design Minden-Deutz heavy with double block brake
- Accessible Minimum radius 360 mm.
- For presentation in a display case, WC drop pipes and reversible control cables are included as separately pluggable parts
