TRU COMPONENTS 0805 SMD LED 0805 Blue 45 mcd 140 ° 20 mA 3.5 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
3.5 V
Forward current I(F)
20 mA
Type
SMD (wired)
Type
0805
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details
Wire SMS LEDs, form 0805
- Cable length 200 mm
- 0805-casing
Our service for you
Technical specifications
- Product type
SMD LED
- Type
Wired SMD-LED design 0805
- Factory colour
Blue
- Forward voltage U(F)
3.5 V
- Forward current I(F)
20 mA
- Type
SMD (wired)
- Type
0805
- Light intensity I(V)
45 mcd
- Radiation angle
140°
- Type
Clear
- Dim
(L x W x H) 2 x 1.25 x 1.1 mm
- Length
2 mm
- Width
1.25 mm
- Height
1.1 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2300488 TRU COMPONENTS 0805 SMD LED 0805 Blue 45 mcd 140 ° 20 mA 3.5 V
User & Safety Instructions
User & Safety Instructions 2300488 TRU COMPONENTS 0805 SMD LED 0805 Blue 45 mcd 140 ° 20 mA 3.5 V
Description

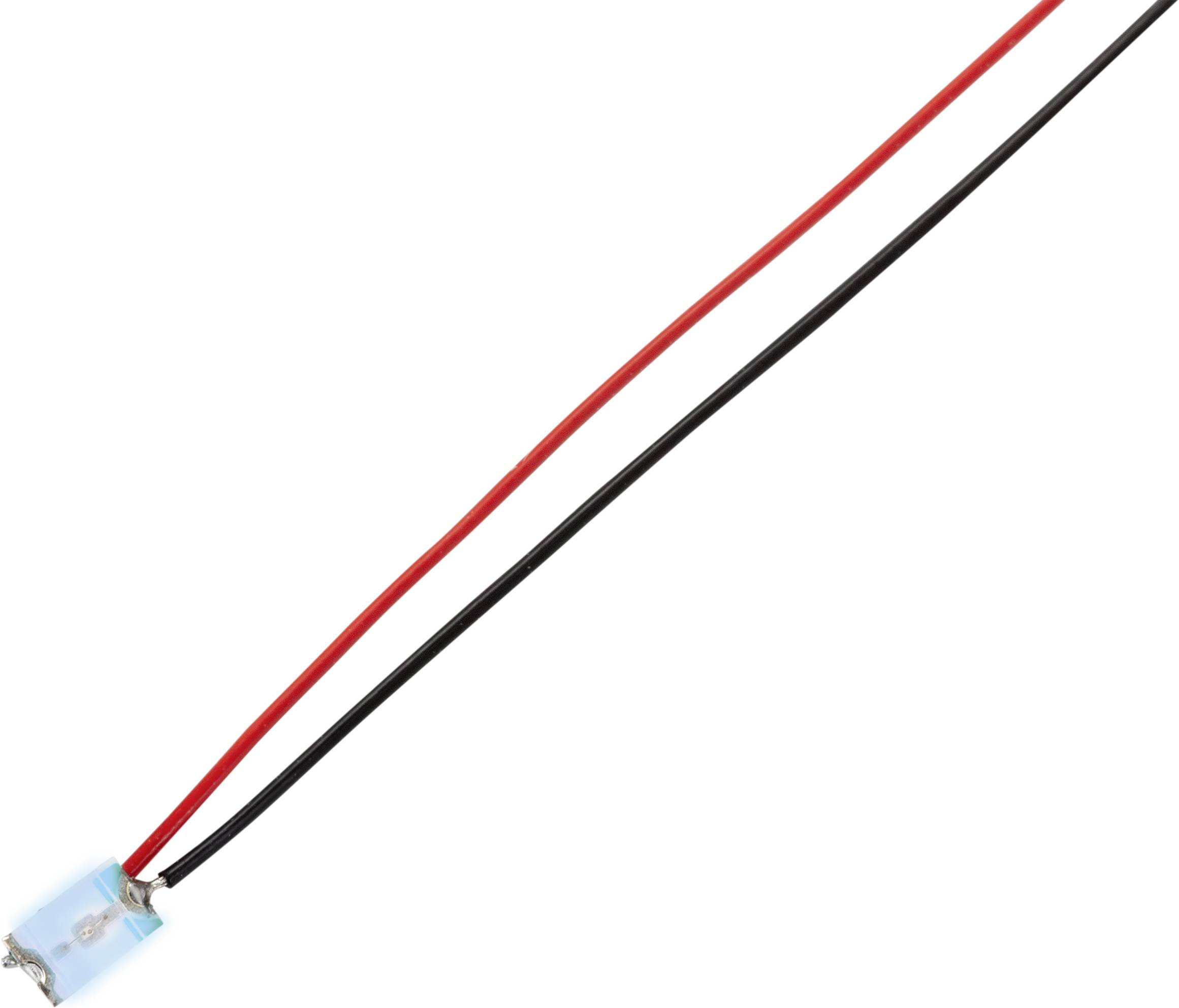

This SMD-LED in 0805-casing is suitable for use in modelling and model railways. The further processing becomes easy through the advantage that it is already pre-fabricated with a 200 mm long connection wire. The wire ends are galvanised.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
