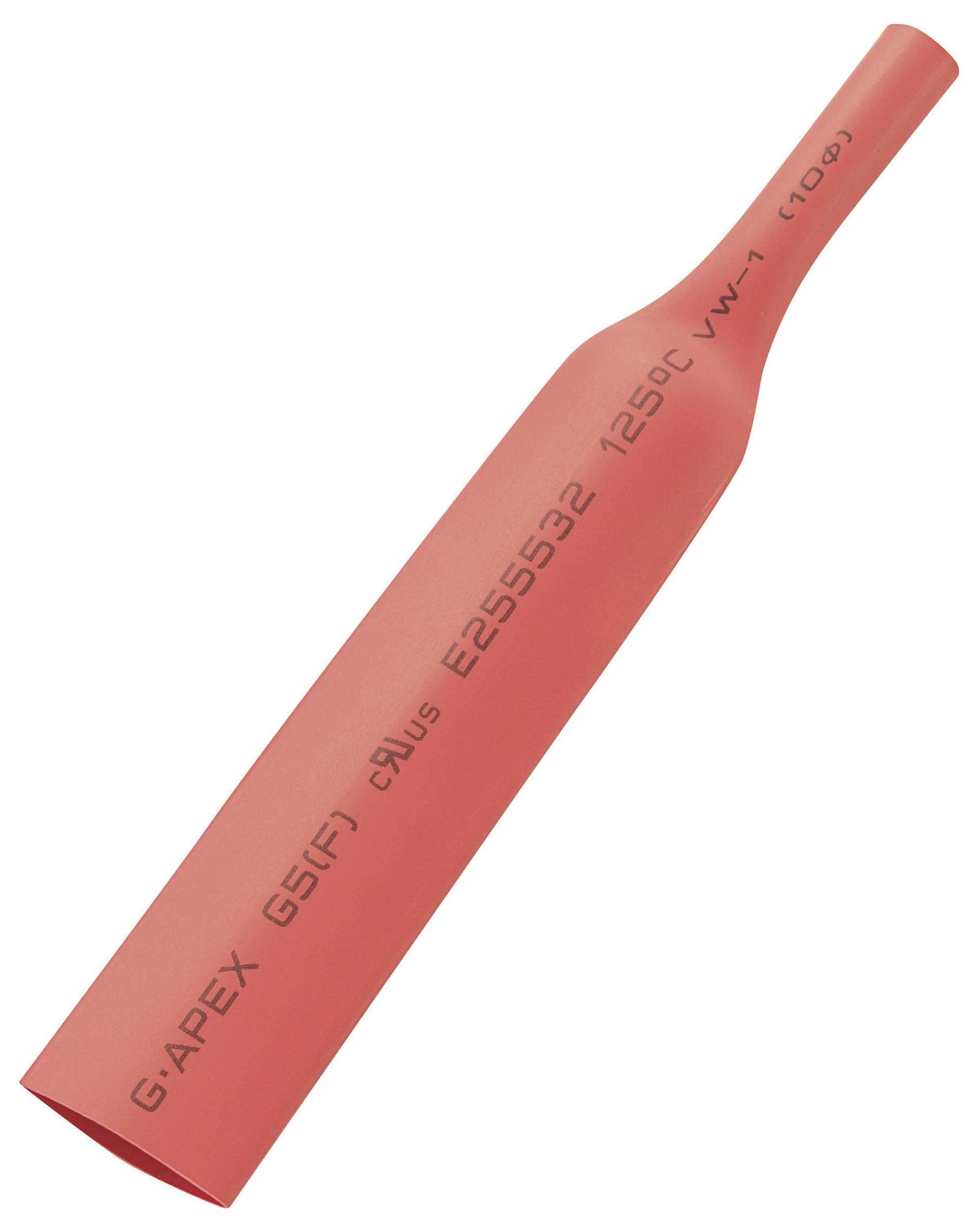

TRU COMPONENTS 1564457 Heatshrink w/o adhesive Red 2 mm 1 mm Shrinkage:2:1 15 m
EAN:
Part number:
Item no:
Product type
Heatshrink w/o adhesive
Nominal inside diameter (pre-shrinkage)
2 mm
Nominal diameter (post-shrinkage)
1 mm
Heatshrink features
Flame-retardant
Chemical-resistant
Highly flexible
Content
15 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.36
€ 5.45
5
1 M = € 0.34
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.36)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details

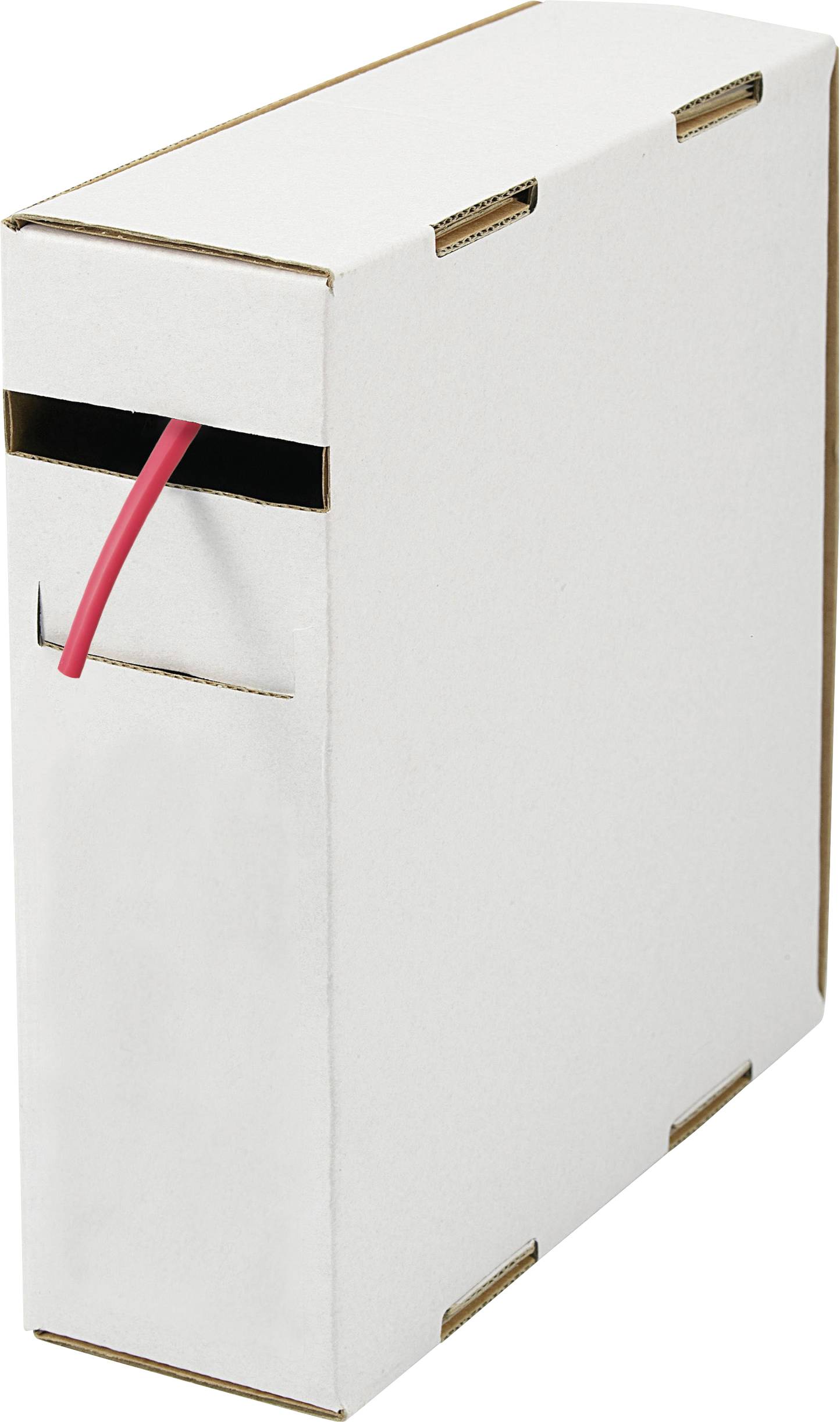

Heat Shrink Tubing In Dispenser Box, No Hot Melt Adhesive 15 m N/A

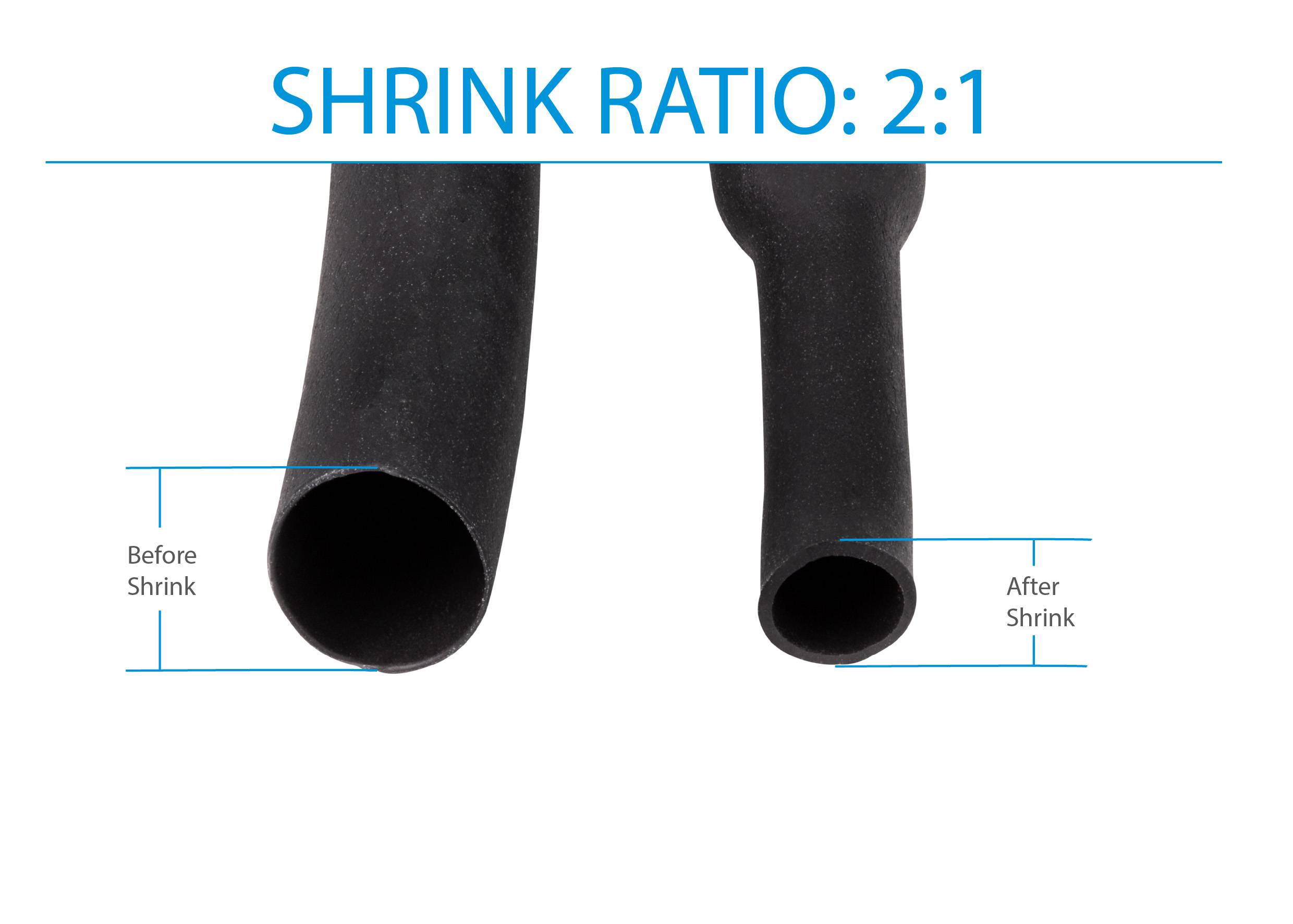

- Shrink ratio 2 : 1
Our service for you
Technical specifications
- Product type
Heatshrink w/o adhesive
- Nominal inside diameter (pre-shrinkage)
2 mm
- Nominal diameter (post-shrinkage)
1 mm
- Factory colour
Red
- Shrinkage
2:1
- Heatshrink features
Flame-retardant
Chemical-resistant
Highly flexible
- Content
15 m
- Shrink temperature (min.)
+70 °C
- Shrink temperature (max.)
+110 °C
- Min. temperature
-55 °C
- Max. temperature
+125 °C
- Manufacturer part #
1564457
- Halogen-free
No
- RoHS-compliant
Yes
- Type
B2G5-2 R
- Wall thickness (post-shrinkage)
0.34 mm
Documents & Downloads
Datasheet
Datasheet 1564457 TRU COMPONENTS 1564457 Heatshrink w/o adhesive Red 2 mm 1 mm Shrinkage:2:1 15 m
User & Safety Instructions
User & Safety Instructions 1564457 TRU COMPONENTS 1564457 Heatshrink w/o adhesive Red 2 mm 1 mm Shrinkage:2:1 15 m
Description
Thin-walled heat shrink tubing for insulation and marking. In a convenient dispenser box for ease of use. For cable marking, cable bundling and electrical insulation for cable connections.
