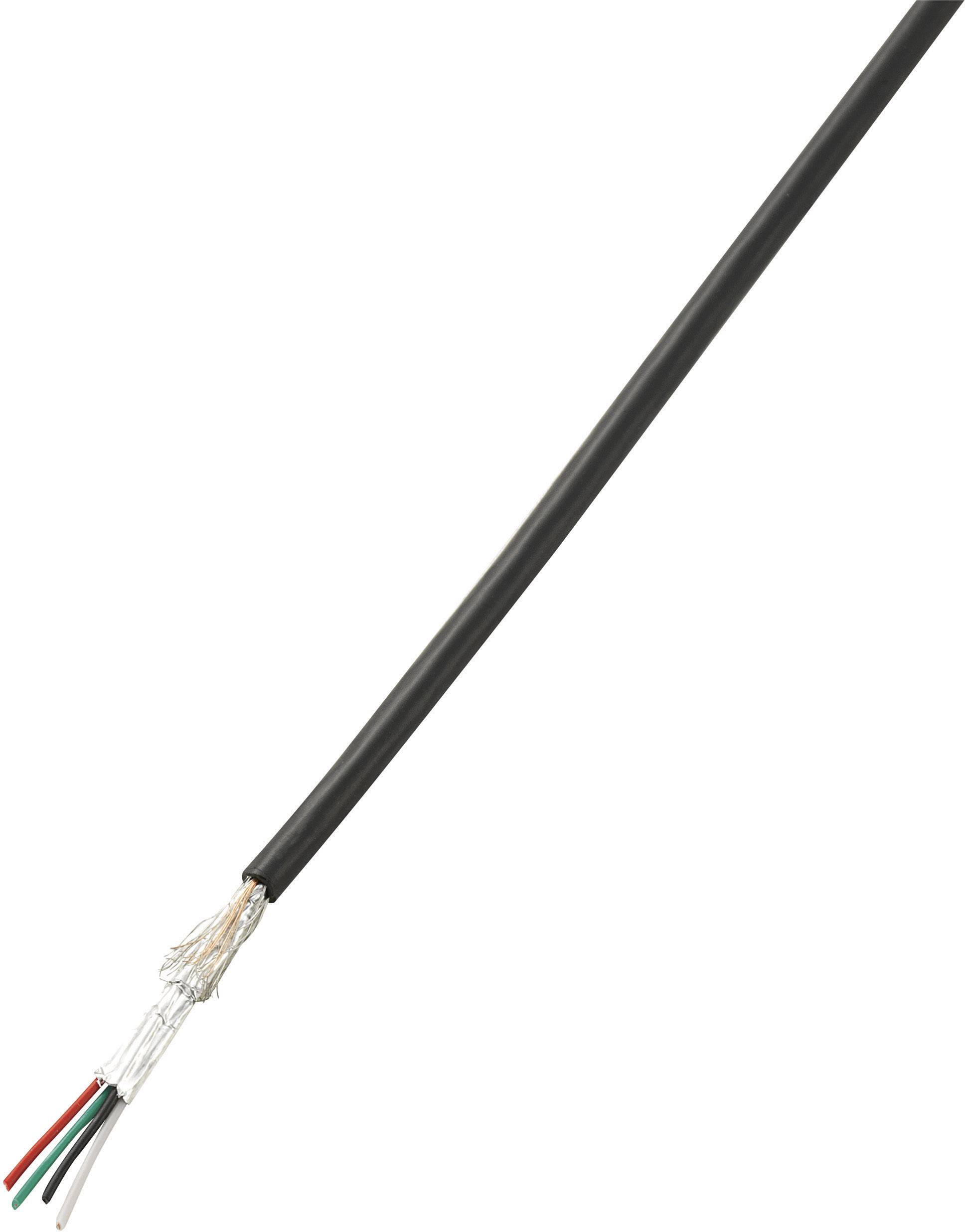

TRU COMPONENTS 1567123 USB cable 4 x 0.08 mm² Black 10 m
EAN:
Part number:
Item no:
Product type
USB cable
No. of leads
4 x
Cross section (each core)
0.08 mm²
Cross section
4 x 0.08 mm²
Outside Ø
4.50 mm
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.46
€ 4.61
5
1 M = € 0.43
€ 4.31
10
1 M = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.46)
€ 4.61
plus VAT.
14-day return policy included
Technical specifications
- Product type
USB cable
- No. of leads
4 x
- Cross section (each core)
0.08 mm²
- Cross section
4 x 0.08 mm²
- Outside Ø
4.50 mm
- Factory colour
Black
- Content
10 m
- Nominal voltage (details)
5 V DC
- AWG max.
28
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
1567123
- Insulation material
PVC
- Insulation
PVC
- Core layout
7 x 0.12 mm
- Type
USB 2.0/CCA
Documents & Downloads
Datasheet
Datasheet 1567123 TRU COMPONENTS 1567123 USB cable 4 x 0.08 mm² Black 10 m
User & Safety Instructions
User & Safety Instructions 1567123 TRU COMPONENTS 1567123 USB cable 4 x 0.08 mm² Black 10 m
Description
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
Scope of delivery
- Coil (10 m).
