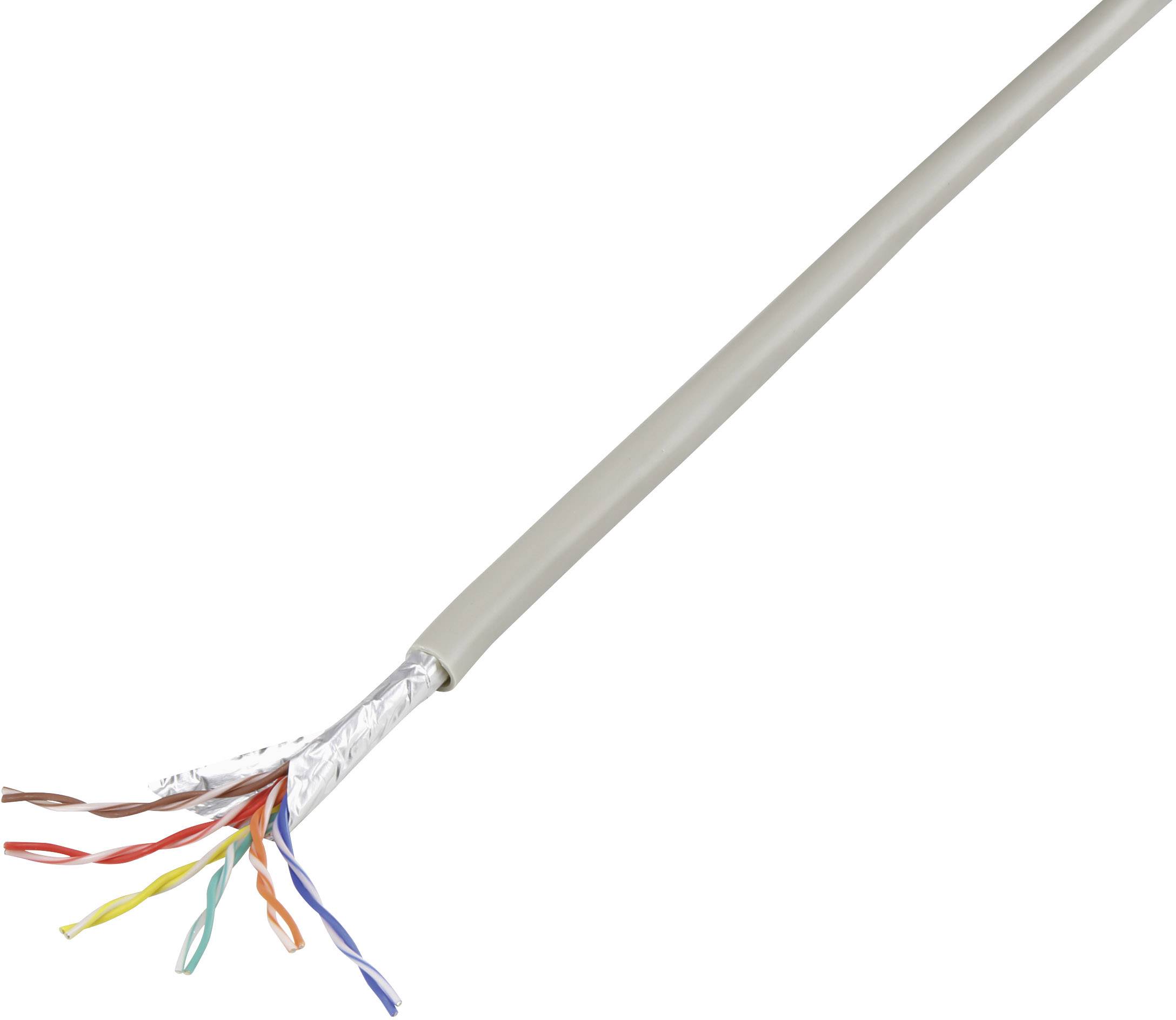

TRU COMPONENTS 1568142 Phone cord J-Y(ST)Y 6 x 2 x 0.6 mm Grey 25 m
EAN:
Part number:
Item no:
Cable type
J-Y(ST)Y
No. of leads
12 x
Cross section (each core)
0.6 mm
Content
25 m
Product type
Phone cord
64 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.57
€ 14.28
3
1 M = € 0.54
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.57)
€
Technical specifications
- Cable type
J-Y(ST)Y
- No. of leads
12 x
- Cross section (each core)
0.6 mm
- Cross section
6 x 2 x 0.6 mm
- Cable features
Shielded
CCAW
- Outside Ø
7 mm
- Factory colour
Grey
- Content
25 m
- Nominal voltage
48 V
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
1568142
- Insulation material
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+70 °C
- RoHS-compliant
- Type
Messaging cable J-Y(ST)Y
- Twisted pair cabling (part 1)
Yes (1)
- Plastic free packaging
Plastic-free packaging
- Product type
Phone cord
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1568142 TRU COMPONENTS 1568142 Phone cord J-Y(ST)Y 6 x 2 x 0.6 mm Grey 25 m
Description
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
Scope of delivery
- Coil (25 m).
