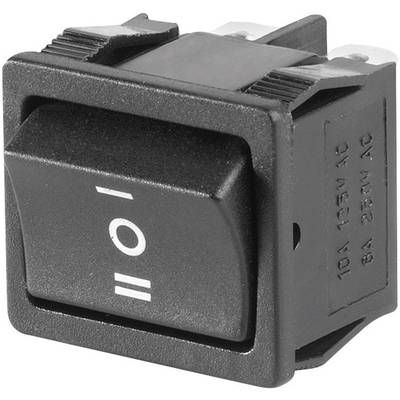

TRU COMPONENTS 1587521 Flip switch TC-R13-33D-02 250 V AC 6 A 2 x On/Off/On latch/0/latch 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
19.4 x 22.2 mm
Functions
latch/0/latch
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.53
10
8% = € 0.19
€ 2.34
25
10% = € 0.26
€ 2.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.53 / piece)
€ 2.53
plus VAT.
Highlights & Details
Toggle switch 250 Vac 6 A 2 x On/Off/On SCI R13-33D-02 latch/0/latch 1 pc(s)
Our service for you
Technical specifications
- Optional front panel cut-out (for front panel thicknesses): 19.6 x 22.2 mm (1.25 - 2 mm) or 20.2 x 22.2 mm (2 - 3 mm)
- Packaging type
Piece
- Product type
Flip switch
- Casing/button colour
Black
- Front panel cut-out
19.4 x 22.2 mm
- Functions
latch/0/latch
- Lighting type
None
- Switch position
2 x On/Off/On
- Print motif
I/0/II
- Material
Polyamide
- Connection
Type C CEE 7/16 plug 6.3 mm
- Contact resistance
50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
6 A
- Dielectric strength
1500 V/AC 1 minute
- Front panel cut-out
19.6 x 22.2 mm (1.25 - 2 mm) oder 20.2 x 22.2 mm (2 - 3 mm) mm
- Front panel thickness
1.25 mm
- Content
1 pc(s)
- Insulation resistance
100 MΩ/500 V DC
- RoHS-compliant
Yes
- Type
TC-R13-33D-02
Documents & Downloads
Datasheet
Datasheet 1587521 TRU COMPONENTS 1587521 Flip switch TC-R13-33D-02 250 V AC 6 A 2 x On/Off/On latch/0/latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1587521 TRU COMPONENTS 1587521 Flip switch TC-R13-33D-02 250 V AC 6 A 2 x On/Off/On latch/0/latch 1 pc(s)
Description
Rocker switch for 'snap-in' mounting. Approvals: UL, CSA, VDE.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
