TRU COMPONENTS 1587712 TC-R13-57A-05BK Pushbutton 250 V AC 0.5 A 1 x Off/(On) momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Solder tag
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.51
6
8% = € 0.12
€ 1.39
10
11% = € 0.17
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.51 / piece)
€ 3.02
plus VAT.
14-day return policy included
Highlights & Details

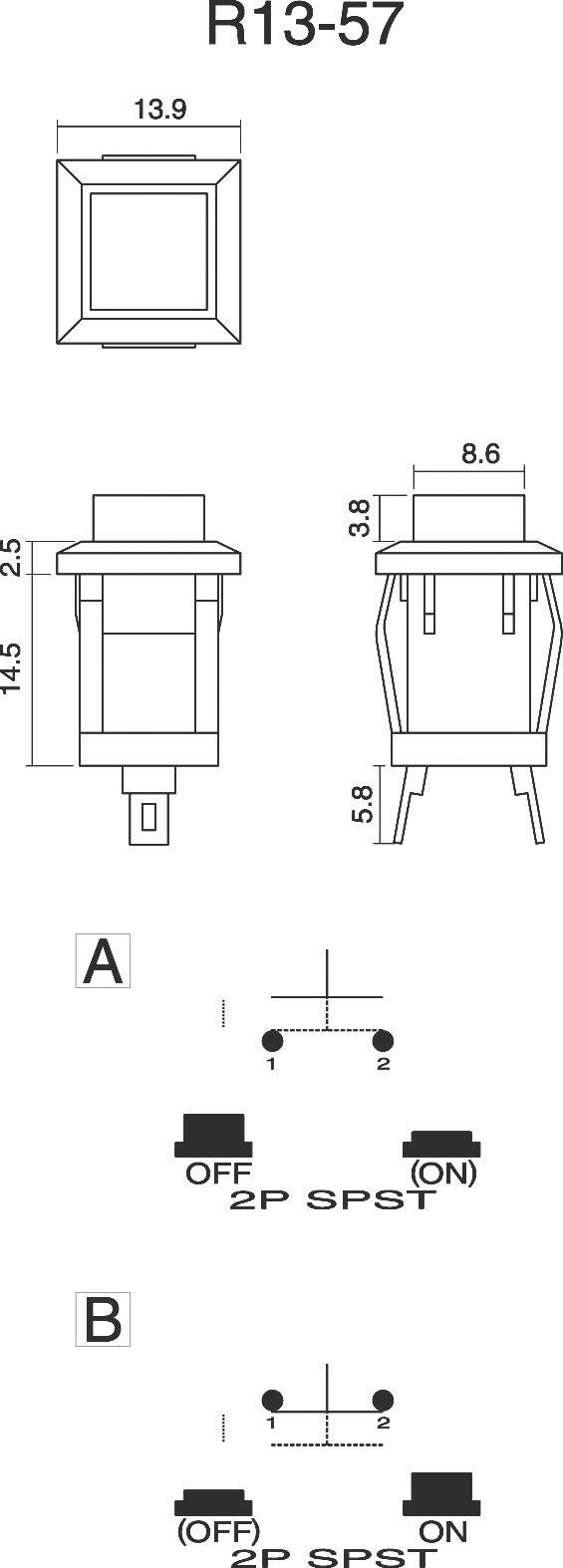

Pushbutton 250 Vac 0.5 A 1 x Off/(On) SCI R13-57A-05BK momentary 1 pc(s)
Our service for you
Technical specifications
- Product type
Pushbutton
- Switch/button features
Protruding
- Casing/button colour
Black
- Functions
momentary
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Material
Polyamide
- Connection
Solder tag
- Switching voltage
250 V AC
- Switching current (max.)
0.5 A
- Dielectric strength
1000 V/AC/60 s
- Content
1 pc(s)
- Insulation resistance
min 100 MΩ/500 V DC
- RoHS-compliant
Yes
- Front panel cut-out
11.3 x 12.6 mm
- Board thickness (max.)
3 mm
- Type
TC-R13-57A-05BK
Documents & Downloads
Datasheet
Datasheet 1587712 TRU COMPONENTS 1587712 TC-R13-57A-05BK Pushbutton 250 V AC 0.5 A 1 x Off/(On) momentary 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1587712 TRU COMPONENTS 1587712 TC-R13-57A-05BK Pushbutton 250 V AC 0.5 A 1 x Off/(On) momentary 1 pc(s)
Description
Pushbutton/switch for "snap-in" mounting
Hints
With description of switching position, the value in brackets are intended which deal with button function.
