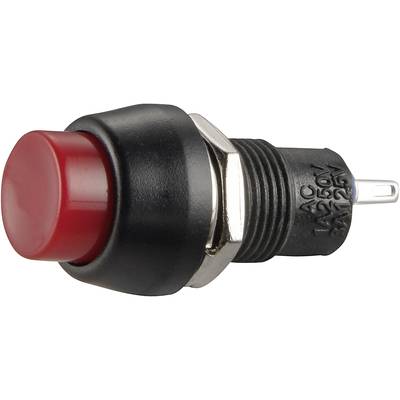

TRU COMPONENTS 1587724 TC-R13-84B-05RT Pushbutton switch 250 V AC 1 A 1 x Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton switch
Lighting type
None
Switch position
1 x Off/On
Contact type
1 maker
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.36
10
8% = € 0.18
€ 2.18
25
11% = € 0.25
€ 2.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.36 / piece)
€ 2.36
plus VAT.
14-day return policy included
Highlights & Details
Pushbutton switch 250 Vac 1 A 1 x Off/On SCI R13-84B-05RT latch 1 pc(s)
- UL, CSA.
Our service for you
Technical specifications
- Approvals UL, CSA
- Product type
Pushbutton switch
- Switch/button features
Protruding
- Casing/button colour
Red
- Functions
latch
- Lighting type
None
- Switch position
1 x Off/On
- Contact type
1 maker
- Material
Phenol
- Connection
Solder pins
- Contact resistance
max. 50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
1 A
- Dielectric strength
1500 V/AC/60 s
- Recess diameter
10.2 mm
- Content
1 pc(s)
- Insulation resistance
min 100 MΩ/500 V DC
- RoHS-compliant
Yes
- Board thickness (max.)
3 mm
- Type
TC-R13-84B-05RT
Documents & Downloads
Datasheet
Datasheet 1587724 TRU COMPONENTS 1587724 TC-R13-84B-05RT Pushbutton switch 250 V AC 1 A 1 x Off/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1587724 TRU COMPONENTS 1587724 TC-R13-84B-05RT Pushbutton switch 250 V AC 1 A 1 x Off/On latch 1 pc(s)
Description
Round button with guide groove for front panel mounting.
Hints
With description of switching position, the value in brackets are intended which deal with button function.
