TRU COMPONENTS 1587791 TC-PA102A1BK Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Pushbutton switch
Lighting type
None
Switch position
1 x On/On
Contact type
1 change-over
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.96
10
8% = € 0.23
€ 2.73
25
10% = € 0.31
€ 2.65
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.96 / piece)
€ 2.96
plus VAT.
14-day return policy included
Highlights & Details
Pushbutton switch 250 Vac 3 A 1 x On/On SCI PA102A1BK latch 1 pc(s)
- UL, CSA.
Our service for you
Technical specifications
- Approvals UL, CSA
- Packaging type
Single
- Product type
Pushbutton switch
- Switch/button features
Protruding
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
1 x On/On
- Contact type
1 change-over
- Material
Copper alloy
- Connection
Solder tag
- Contact resistance
50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Dielectric strength
1000 V/AC/60 s
- Recess diameter
6.2 mm
- Content
1 pc(s)
- Insulation resistance
(500 V/DC) 100 MΩ
- RoHS-compliant
Yes
- Board thickness (max.)
4 mm
- Switching current (inductive)
3 A
- Type
TC-PA102A1BK
Documents & Downloads
Datasheet

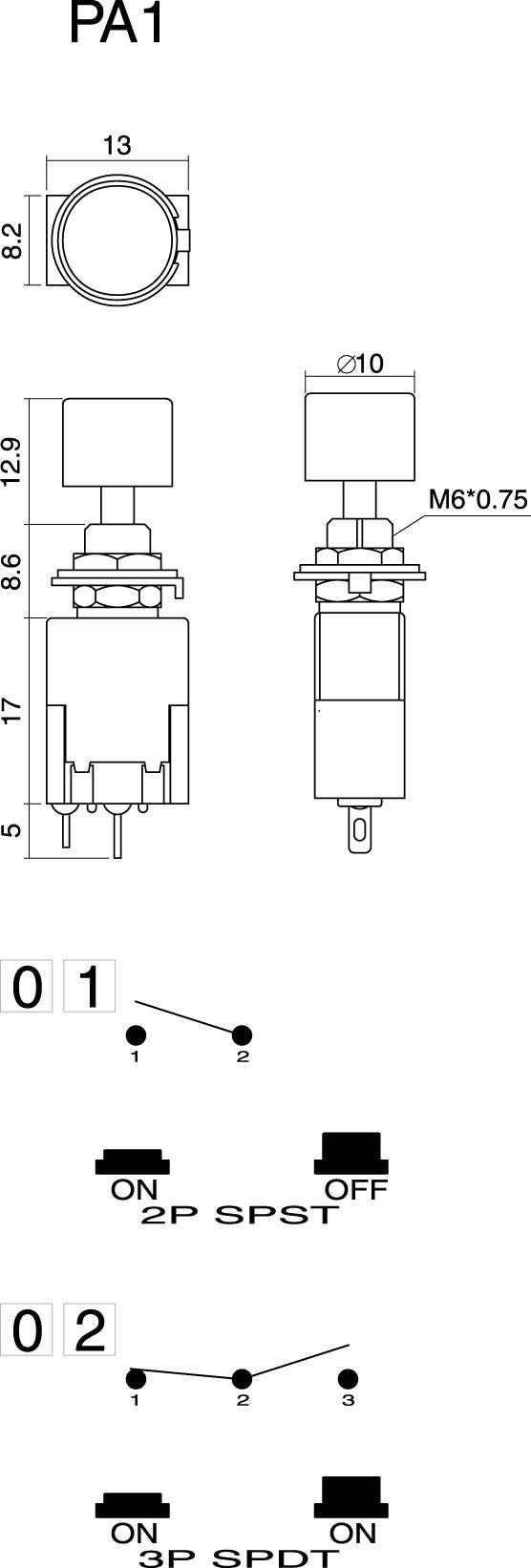

Datasheet 1587791 TRU COMPONENTS 1587791 TC-PA102A1BK Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1587791 TRU COMPONENTS 1587791 TC-PA102A1BK Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
Description
Contact and connection from copper silver alloy, surface silver. Epoxy resin-sealed against dust. moisture resistant. With keyway
Hints
With description of switching position, the value in brackets are intended which deal with button function.
