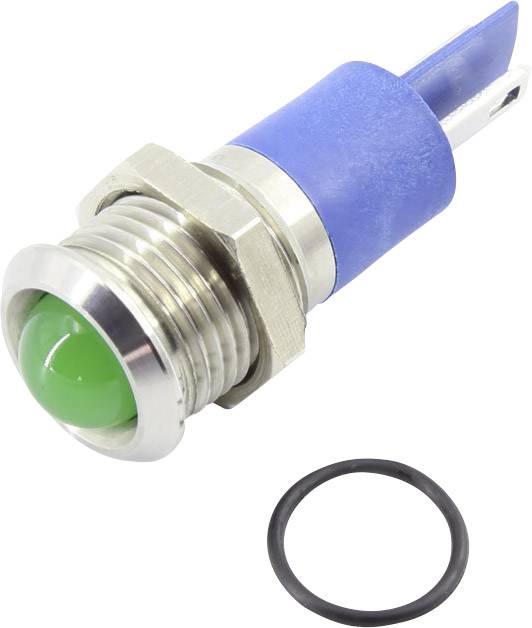

TRU COMPONENTS 1605978 LED indicator light Green 24 V DC/AC 150 mcd
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
24 V DC/AC
Operating current
15 mA
Recess diameter
12 mm
Light intensity I(V)
150 mcd
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details
LED indicator
Our service for you
Technical specifications
- Product type
LED indicator light
- Factory colour
Green
- Operating voltage
24 V DC/AC
- Operating current
15 mA
- Recess diameter
12 mm
- Mounting depth
38.5 mm
- Head Ø
13.5 mm
- Head height
4.5 mm
- Front panel thickness
6 mm
- Case colour
Stainless steel
- Mounting type
Screw and union
- Light intensity I(V)
150 mcd
- LED features
External reflector
- Connection
Soldering
- Dim
(Ø x L) 13.5 mm x 37 mm
- Length
37 mm
- (Ø)
13.5 mm
40000 h
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1605978 TRU COMPONENTS 1605978 LED indicator light Green 24 V DC/AC 150 mcd
User & Safety Instructions
User & Safety Instructions 1605978 TRU COMPONENTS 1605978 LED indicator light Green 24 V DC/AC 150 mcd
