TRU COMPONENTS 18-3705 Single contact 1x AA Through-hole (L x W x H) 9.5 x 13.6 x 14.7 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.31
9
6% = € 0.02
€ 0.29
15
13% = € 0.04
€ 0.27
30
16% = € 0.05
€ 0.26
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.31 / piece)
€ 0.93
plus VAT.
14-day return policy included
Highlights & Details

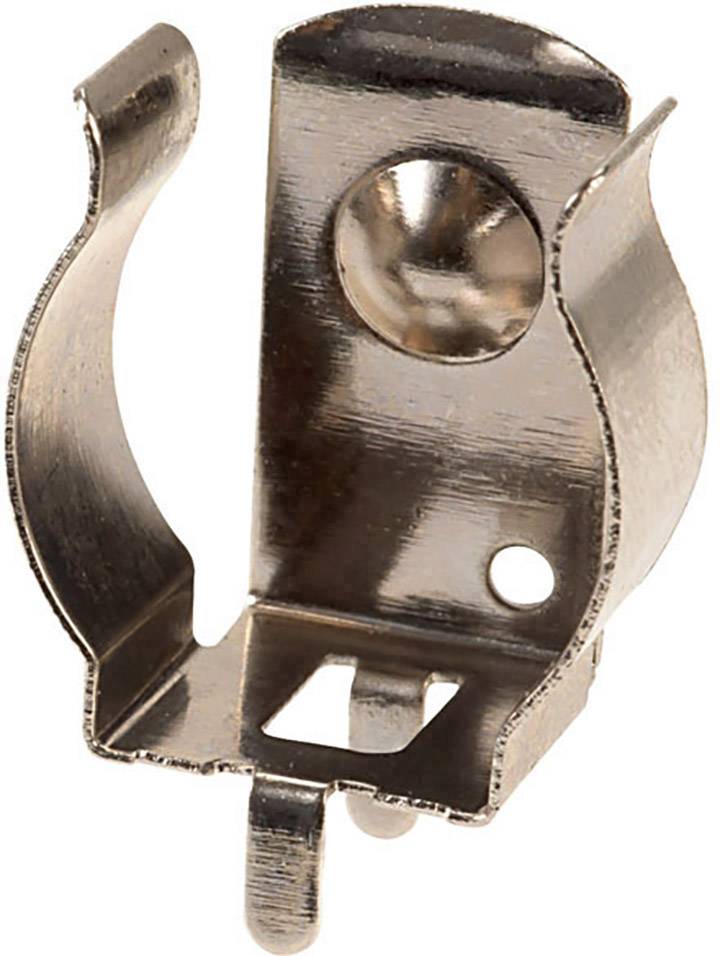

Snap-in clip for AA cell
- Reliable connections with a low contact resistance
- Manufactured from sprung steel with a nickel plated finish
- PCB to battery connection
- Shock and vibration resistant
- Unique snap-in mounting feature assures firm positioning
- Nickel-plated steel contact
- Battery clip adjusts and accept batteries with different overall lengths
Technical specifications
- Product type
Single contact
- Connector
Through-hole
- Dim
(L x W x H) 9.5 x 13.6 x 14.7 mm
- Suitable for battery size
AA
- Pin spacing
7.2 mm
- No. of cells
1
- Length
9.5 mm
- Width
13.6 mm
- Height
14.7 mm
- Material (details)
Spring steel, nickel plated
- Factory colour
Nickel
Documents & Downloads
Datasheet
Datasheet 1931707 TRU COMPONENTS 18-3705 Single contact 1x AA Through-hole (L x W x H) 9.5 x 13.6 x 14.7 mm
User & Safety Instructions
User & Safety Instructions 1931707 TRU COMPONENTS 18-3705 Single contact 1x AA Through-hole (L x W x H) 9.5 x 13.6 x 14.7 mm
Description
Snap-in battery clip for AAA battery, ideal for top-side PCB mounting.
