TRU COMPONENTS 6U07060403437 TC-13865036 Industrial-grade casing 60 x 40 x 30 ABS-PC Light grey 1 pc(s)
Part number:
Item no:
Product type
Industrial-grade casing
Material
ABS-PC
IP rating
IP65
Width
40 mm
Height
30 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Only 6 Piece(s) available
Highlights & Details

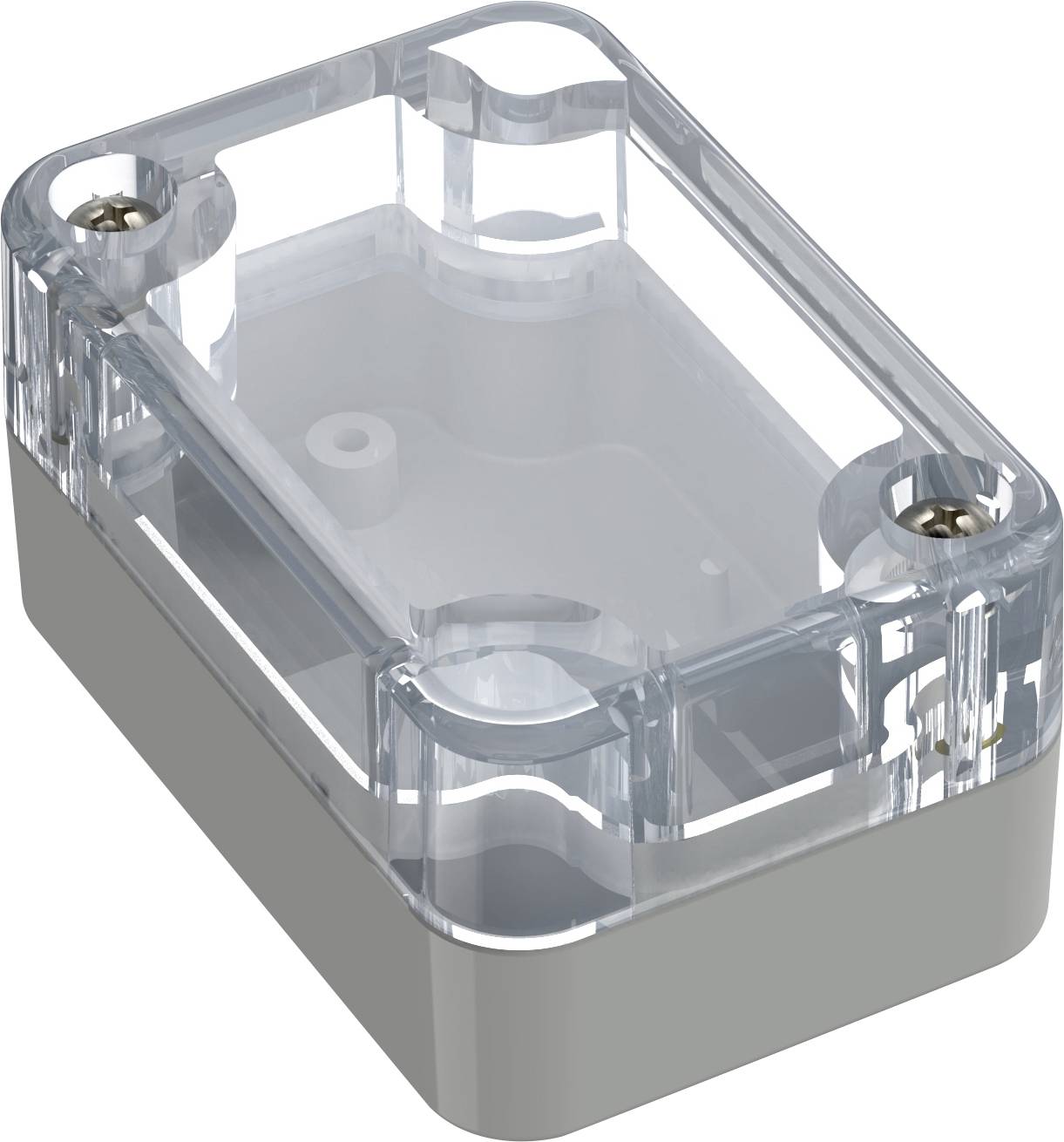

Industrial housing 6U-060403 ABS-PC light gray, glass clear
- High quality industrial case made of ABS/polycarbonate with transparent lid
- Recessed surface in the upper part for the flush mounting of display discs and membrane keypads
- The cover screws secured against falling out are screwed into high-quality threaded sockets
- Circuit boards can be securely fastened in the base using screw dome processing surfaces and versatile mounting options for connectors, switches and buttons
- Temperature resistance: -30°C to 70°C.
- Colour: Upper section transparent, lower section light gray similar. RAL 7035
- IK07 impact strength according to IEC 62262
- PROTECTION CLASS IP65 DIN EN 60529
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Industrial-grade casing
- Material
ABS-PC
IP65
- Factory colour
Light grey
- Length
60 mm
- Width
40 mm
- Height
30 mm
- Inside width
33.9 mm
- Inside height
24.2 mm
- Internal depth
53.9 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Dim
(L x W x H) 60 x 40 x 30 mm
- RoHS-compliant
Yes
- Type
6U07060403437
Documents & Downloads
Datasheet
Datasheet 3466259 TRU COMPONENTS 6U07060403437 TC-13865036 Industrial-grade casing 60 x 40 x 30 ABS-PC Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3466259 TRU COMPONENTS 6U07060403437 TC-13865036 Industrial-grade casing 60 x 40 x 30 ABS-PC Light grey 1 pc(s)
Description

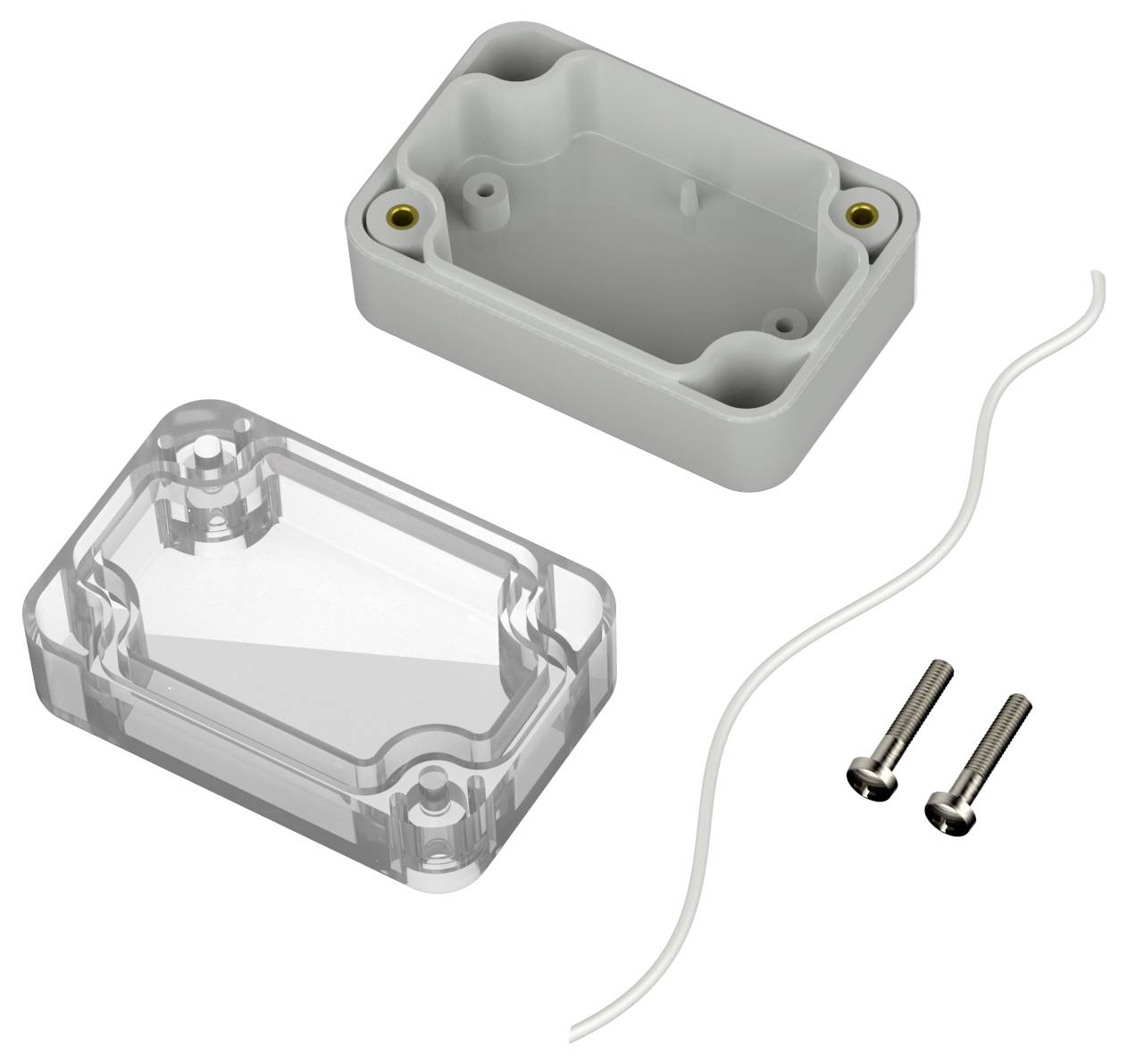

Scope of delivery
- Upper and lower section
- Cover screws
- Loose enclosed seal
