TRU COMPONENTS 6U07090905639 TC-13865244 Industrial-grade casing 121.5 x 91.5 x 45 Polycarbonate (PC) Light grey, Transp
Part number:
Item no:
Product type
Industrial-grade casing
Material
Polycarbonate (PC)
IP rating
IP66
IP68
Width
91.5 mm
Height
45 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 6 Piece(s) available
Highlights & Details

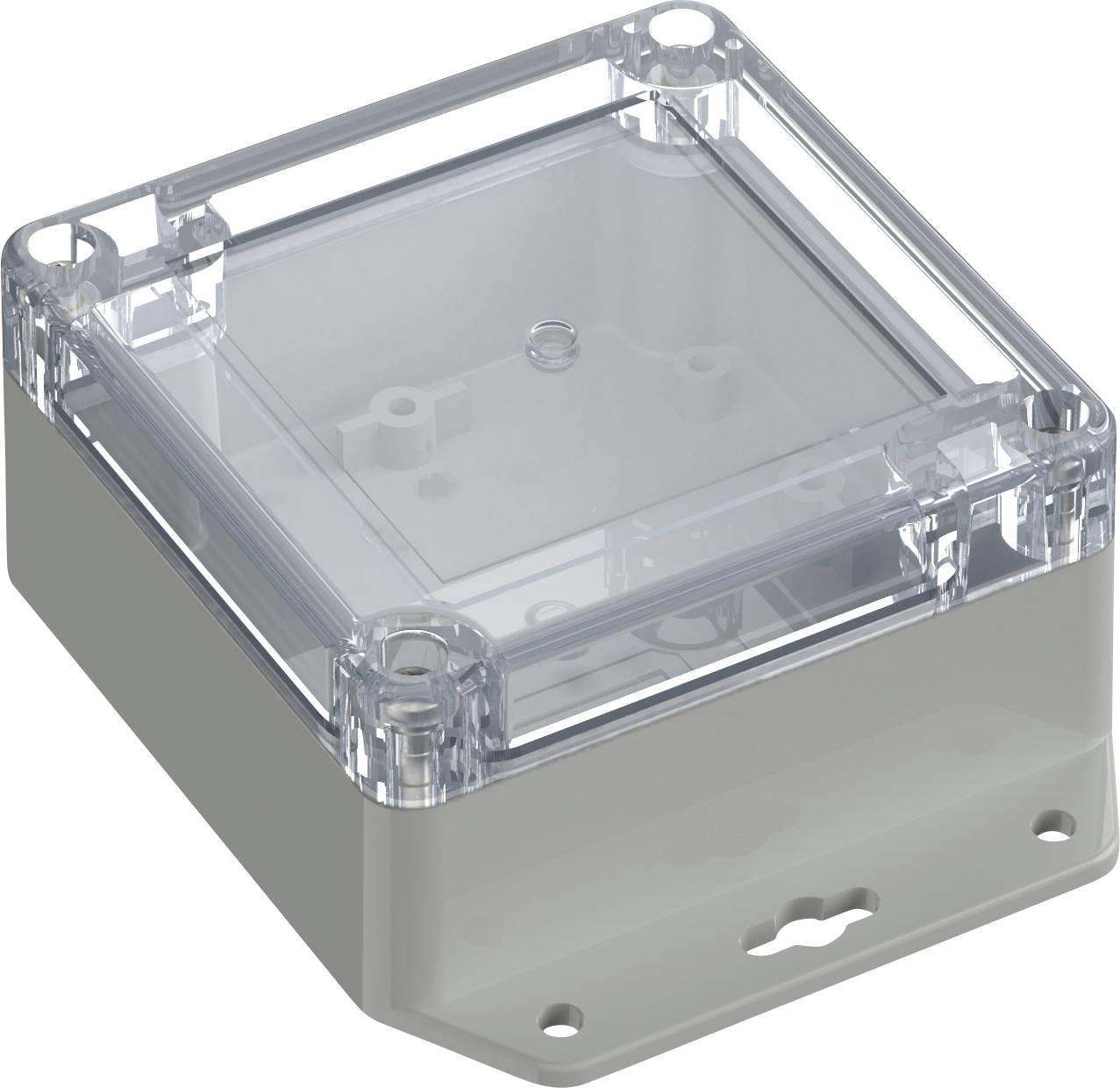

Industrial housing made of polycarbonate with transparent lid
- High-quality industrial housing made of polycarbonate
- The housing is equipped with directly shaped wall brackets
- The cover screws secured against falling out are screwed into high-quality threaded sockets.
- Circuit boards can be securely fastened in the base using screw domes.
- Expanded high-quality seal (PU)
- Processing areas and versatile mounting options for connectors, switches and buttons
- Temperature resistance: -30°C to 110°C.
- Colour: Upper section transparent, lower section light gray similar. RAL 7035
- IK07 impact strength according to IEC 62262
- Protection class IP66 / IP68 (1.2m-2 h) DIN EN 60529
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Industrial-grade casing
- Material
Polycarbonate (PC)
IP66
IP68
- Factory colour
Light grey
Transparent
- Type
Wall brackets
- Length
121.5 mm
- Width
91.5 mm
- Height
45 mm
- Inside width
82.7 mm
- Inside height
37.9 mm
- Internal depth
82.7 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Dim
(L x W x H) 121.5 x 91.5 x 45 mm
- RoHS-compliant
Yes
- Type
6U07090905639
Documents & Downloads
Datasheet
Datasheet 3466311 TRU COMPONENTS 6U07090905639 TC-13865244 Industrial-grade casing 121.5 x 91.5 x 45 Polycarbonate (PC) Light grey, Transp
User & Safety Instructions
User & Safety Instructions 3466311 TRU COMPONENTS 6U07090905639 TC-13865244 Industrial-grade casing 121.5 x 91.5 x 45 Polycarbonate (PC) Light grey, Transp
Description

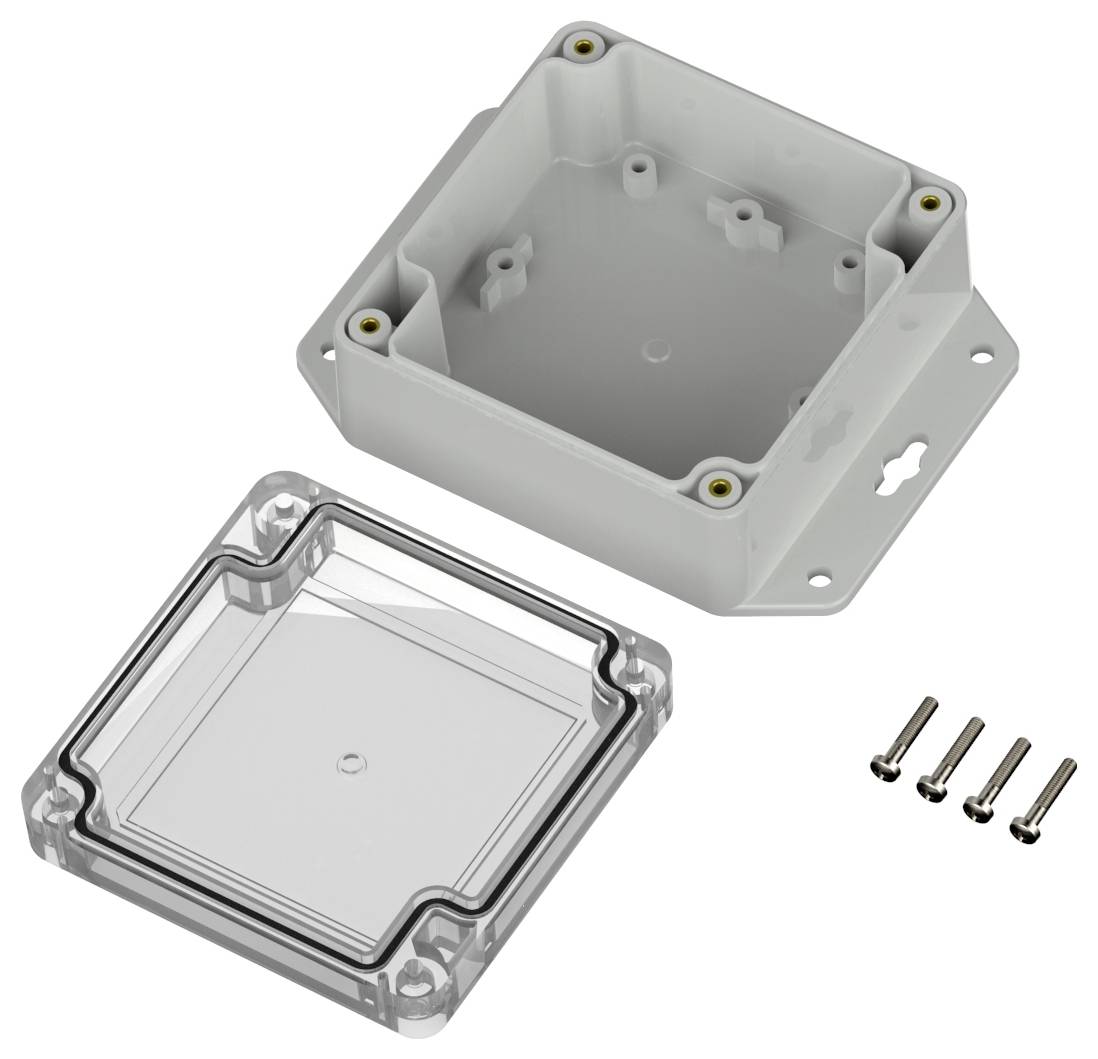

Scope of delivery
- Upper and lower section
- Cover screws
