Buy TRU COMPONENTS 6U07090905737 TC-13865236 Industrial-grade casing 121.5 x 90 x 45 ABS-PC Light grey, Transparent 1 pc(s)

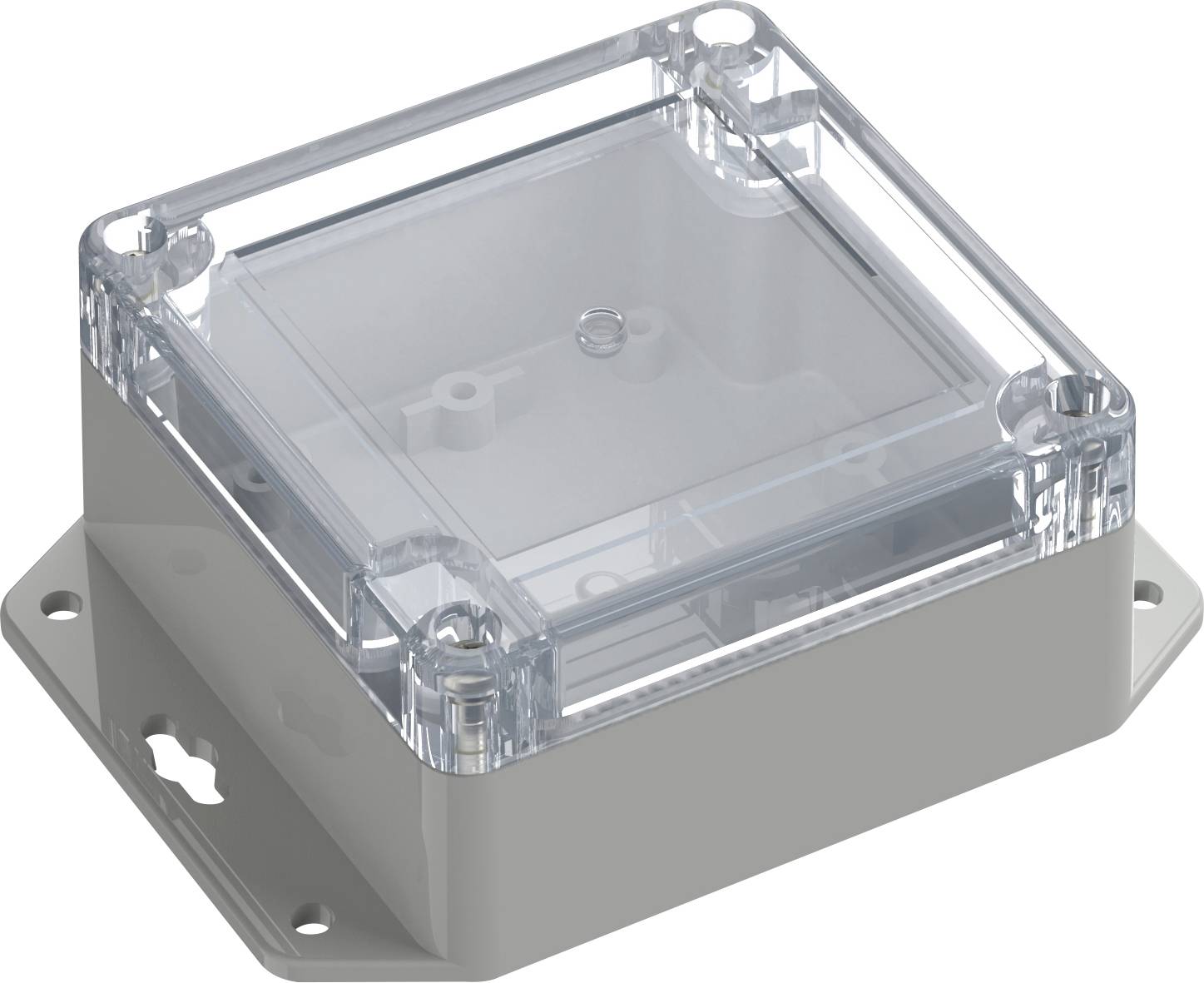

A clear plastic enclosure with a sturdy, square design, open at the top. Used for protecting electronic components or circuits.

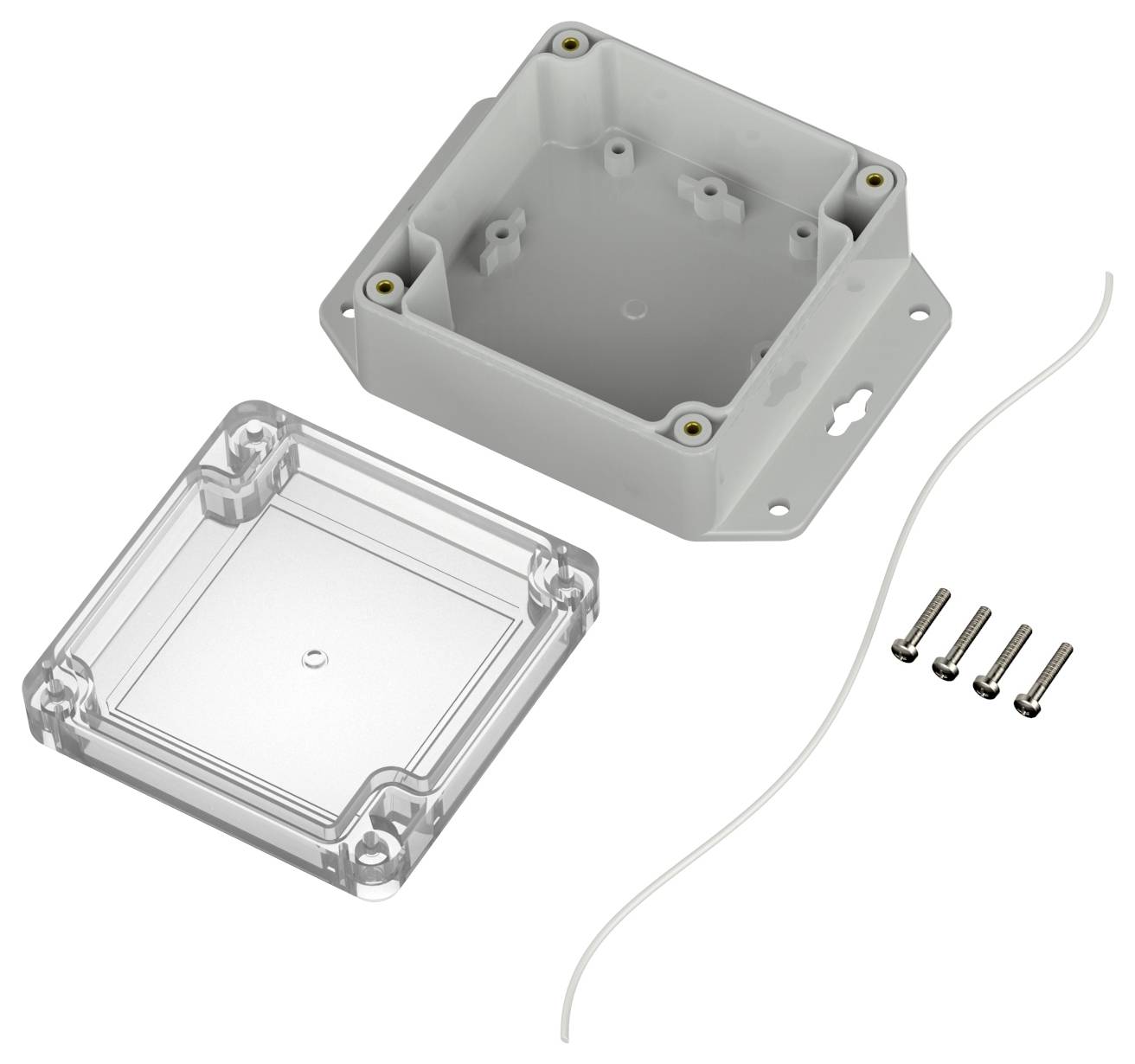

A gray plastic electronics enclosure with a clear lid, four screws, and a thin white cable are arranged on a plain background.

1/2

Product type

Industrial-grade casing

Material

ABS-PC

IP rating

IP65

Width

90 mm

Height

45 mm

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Industrial housing made of ABS/Polycarbonate with transparent cover

High quality industrial case made of ABS/polycarbonate with transparent lid
Recessed surface in the upper part for the flush mounting of display discs and membrane keypads
The cover screws secured against falling out are screwed into high-quality threaded sockets
Circuit boards can be securely fastened in the base using screw domes
Processing areas and versatile mounting options for connectors, switches and buttons
Temperature resistance: -30°C to 70°C.
Colour: Upper section transparent, lower section light gray similar. RAL 7035
IK07 impact strength according to IEC 62262
PROTECTION CLASS IP65/DIN EN 60529
This text is machine translated.

Our service for you

Technical specifications

Product type: Industrial-grade casing

Material: ABS-PC

: IP65

Factory colour: Light grey
Transparent

Length: 121.5 mm

Width: 90 mm

Height: 45 mm

Inside width: 82.7 mm

Inside height: 37.9 mm

Internal depth: 82.7 mm

Content: 1 pc(s)

Industrial packaging: Yes

Dim: (L x W x H) 121.5 x 90 x 45 mm

RoHS-compliant: Yes

Type: 6U07090905737

Variants(All information is without VAT, plus shipping costs)

Length/depth

Factory colour

Material

Width

IP rating

Dim

Height

TRU COMPONENTS 6U07090905737 TC-13865236 Industrial-grade casing 121.5 x 90 x 45 ABS-PC Light grey, Transparent 1 pc(s)

Item no:3466309

This article

121.5 mm

Light greyTransparent

ABS-PC

90 mm

IP65

(L x W x H) 121.5 x 90 x 45 mm

45 mm

TRU COMPONENTS 6U07060403017 TC-13865032 Industrial-grade casing 60 x 40 x 30 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Item no:3466258

60 mm

Light grey

Acrylonitrile butadiene styrene

40 mm

IP65

(L x W x H) 60 x 40 x 30 mm

30 mm

TRU COMPONENTS 6U07060403437 TC-13865036 Industrial-grade casing 60 x 40 x 30 ABS-PC Light grey 1 pc(s)

Item no:3466259

60 mm

Light grey

ABS-PC

40 mm

IP65

(L x W x H) 60 x 40 x 30 mm

30 mm

TRU COMPONENTS 6U07060403119 TC-13865040 Industrial-grade casing 60 x 40 x 30 Polycarbonate (PC) Light grey 1 pc(s)

Item no:3466260

60 mm

Light grey

Polycarbonate (PC)

40 mm

IP66IP68

(L x W x H) 60 x 40 x 30 mm

30 mm

TRU COMPONENTS 6U07060403139 TC-13865044 Industrial-grade casing 60 x 40 x 30 Polycarbonate (PC) Transparent, Light grey 1 pc(s)

Item no:3466261

60 mm

TransparentLight grey

Polycarbonate (PC)

40 mm

IP66IP68

(L x W x H) 60 x 40 x 30 mm

30 mm

TRU COMPONENTS 6U07080804017 TC-13865048 Industrial-grade casing 75 x 75 x 45 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Item no:3466262

75 mm

Light grey

Acrylonitrile butadiene styrene

75 mm

IP65

(L x W x H) 75 x 75 x 45 mm

45 mm

TRU COMPONENTS 6U07080804437 TC-13865052 Industrial-grade casing 75 x 75 x 45 Acrylonitrile butadiene styrene, Polycarbonate (PC) Light grey 1 pc(s)

Item no:3466263

75 mm

Light grey

Acrylonitrile butadiene styrenePolycarbonate (PC)

75 mm

IP65

(L x W x H) 75 x 75 x 45 mm

45 mm

TRU COMPONENTS 6U07080804119 TC-13865056 Industrial-grade casing 75 x 75 x 45 Polycarbonate (PC) Light grey 1 pc(s)

Item no:3466264

75 mm

Light grey

Polycarbonate (PC)

75 mm

IP66IP68

(L x W x H) 75 x 75 x 45 mm

45 mm

TRU COMPONENTS 6U07080804139 TC-13865060 Industrial-grade casing 75 x 75 x 45 Polycarbonate (PC) Light grey, Transparent 1 pc(s)

Item no:3466265

75 mm

Light greyTransparent

Polycarbonate (PC)

75 mm

IP66IP68

(L x W x H) 75 x 75 x 45 mm

45 mm

TRU COMPONENTS 6U07060403517 TC-13865200 Industrial-grade casing 87.8 x 40 x 30 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Item no:3466300

87.8 mm

Light grey

Acrylonitrile butadiene styrene

40 mm

IP65

(L x W x H) 87.8 x 40 x 30 mm

30 mm

Documents & Downloads

Datasheet

Datasheet 3466309 TRU COMPONENTS 6U07090905737 TC-13865236 Industrial-grade casing 121.5 x 90 x 45 ABS-PC Light grey, Transparent 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3466309 TRU COMPONENTS 6U07090905737 TC-13865236 Industrial-grade casing 121.5 x 90 x 45 ABS-PC Light grey, Transparent 1 pc(s)

Description

Scope of delivery

Upper and lower section
Cover screws
Loose enclosed seal
