TRU COMPONENTS 6U07090906437 TC-13865068 Industrial-grade casing 90 x 90 x 60 Acrylonitrile butadiene styrene, Polycarbo
Part number:
Item no:
Product type
Industrial-grade casing
Material
Acrylonitrile butadiene styrene
Polycarbonate (PC)
IP rating
IP65
Width
90 mm
Height
60 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 1 Piece(s) available
Highlights & Details

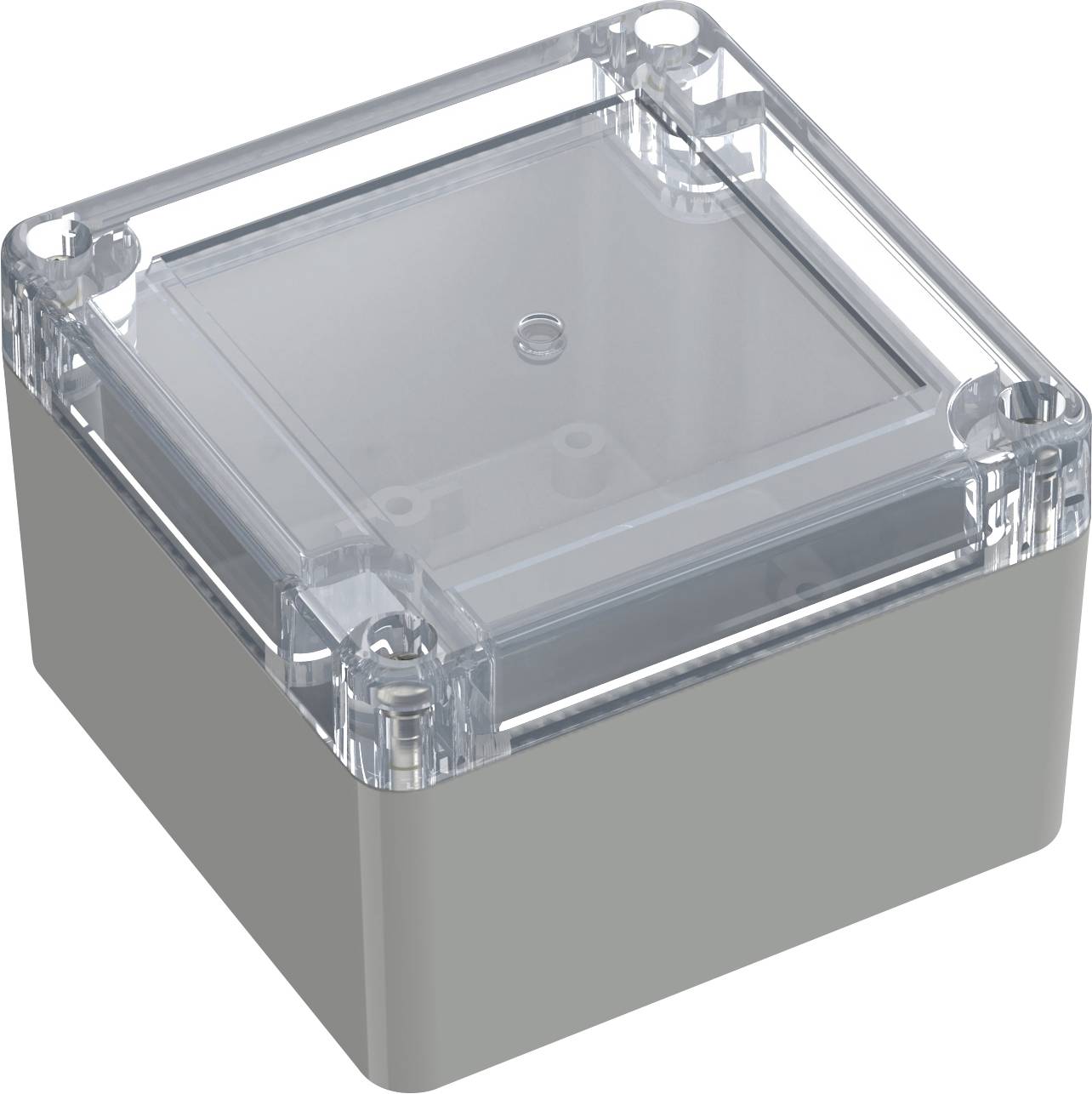

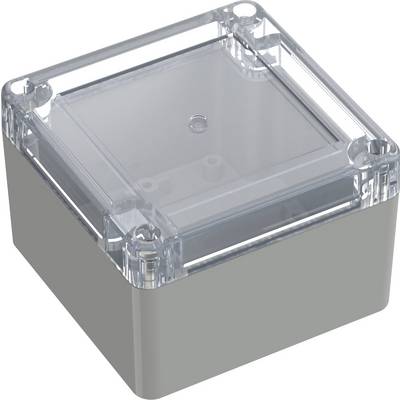

Industrial housing made of ABS/Polycarbonate with transparent cover
- High quality industrial case made of ABS/polycarbonate with transparent lid
- Recessed surface in the upper part for the flush mounting of display discs and membrane keypads
- The cover screws secured against falling out are screwed into high-quality threaded sockets
- Circuit boards can be securely fastened in the base using screw domes
- Processing areas and versatile mounting options for connectors, switches and buttons
- Temperature resistance: -30°C to 70°C.
- Colour: Upper section transparent, lower section light gray similar. RAL 7035
- IK07 impact strength according to IEC 62262
- PROTECTION CLASS IP65 DIN EN 60529
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Industrial-grade casing
- Material
Acrylonitrile butadiene styrene
Polycarbonate (PC)
IP65
- Factory colour
Light grey
Transparent
- Length
90 mm
- Width
90 mm
- Height
60 mm
- Inside width
81.9 mm
- Inside height
52.9 mm
- Internal depth
81.9 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Dim
(L x W x H) 90 x 90 x 60 mm
- RoHS-compliant
Yes
- Type
6U07090906437
Documents & Downloads
Datasheet
Datasheet 3466267 TRU COMPONENTS 6U07090906437 TC-13865068 Industrial-grade casing 90 x 90 x 60 Acrylonitrile butadiene styrene, Polycarbo
User & Safety Instructions
User & Safety Instructions 3466267 TRU COMPONENTS 6U07090906437 TC-13865068 Industrial-grade casing 90 x 90 x 60 Acrylonitrile butadiene styrene, Polycarbo
Description

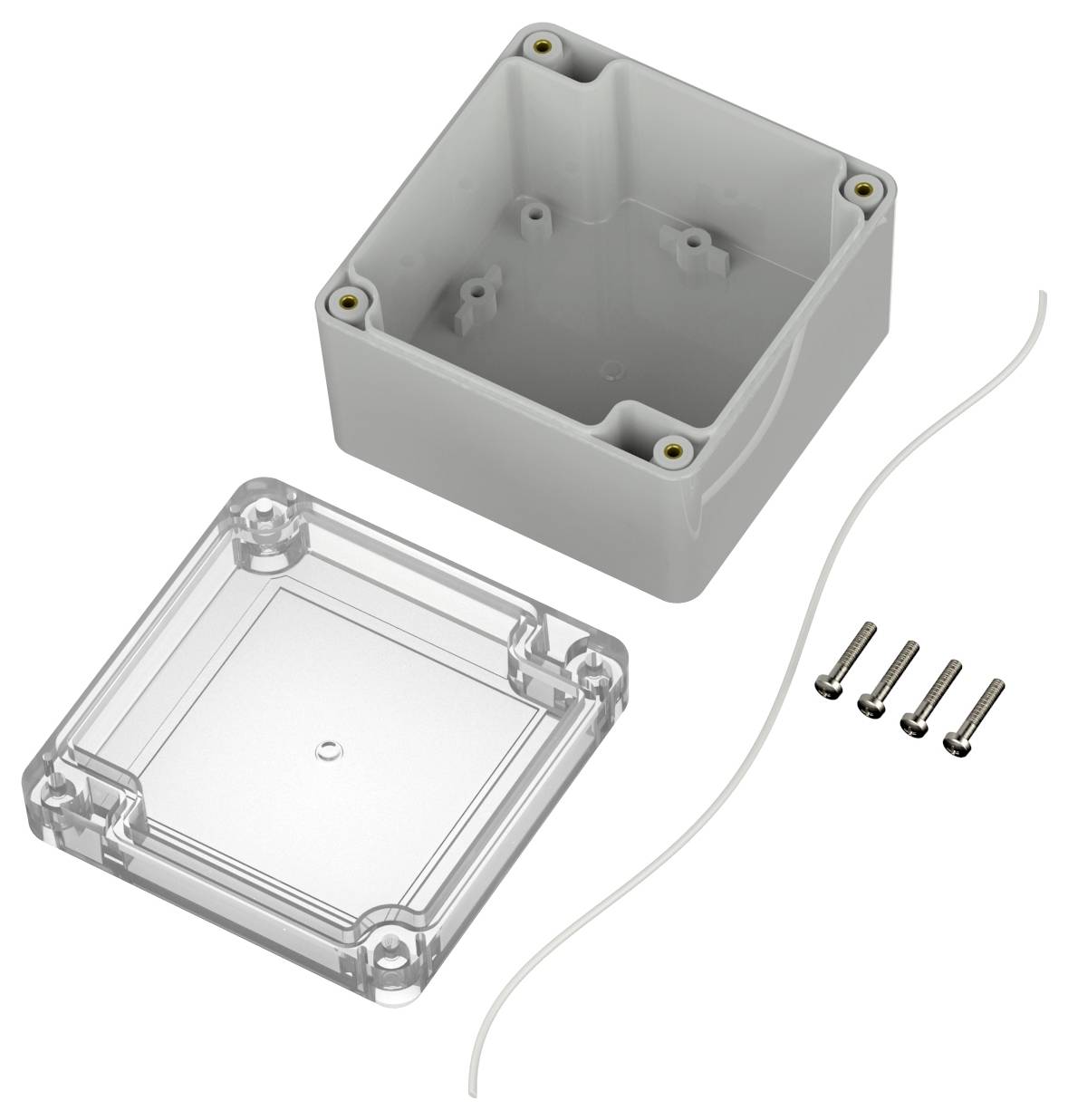

Scope of delivery
- Upper and lower section
- Cover screws
- Loose enclosed seal
