TRU COMPONENTS 6U07160806139 TC-13865140 Industrial-grade casing 160 x 80 x 60 Polycarbonate (PC) Light grey, Transparen
Part number:
Item no:
Product type
Industrial-grade casing
Material
Polycarbonate (PC)
IP rating
IP66
IP68
Width
80 mm
Height
60 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details

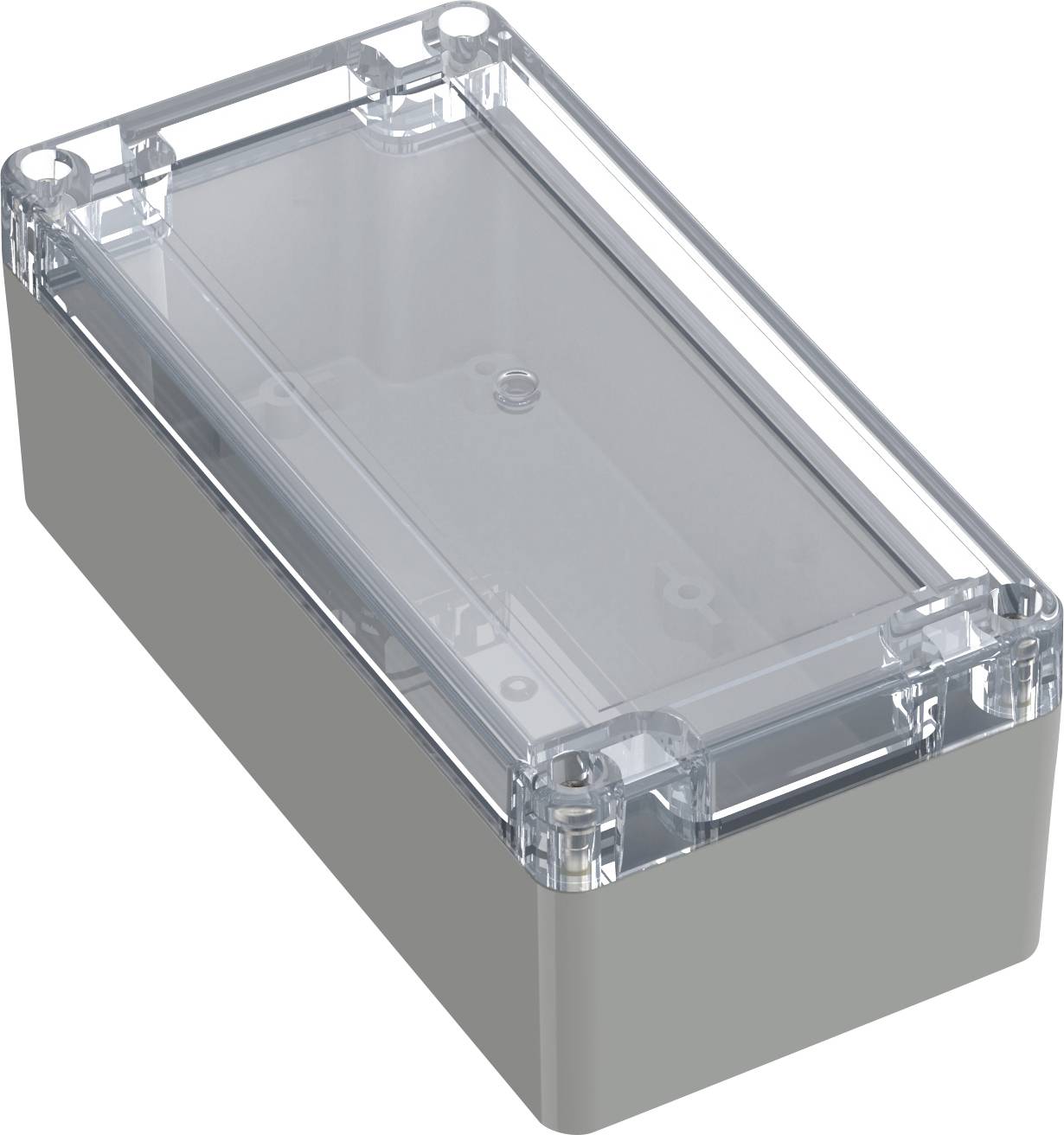

Industrial housing made of polycarbonate with transparent lid
- High quality industrial housing made of polycarbonate with transparent lid
- The cover screws secured against falling out are screwed into high-quality threaded sockets
- Circuit boards can be securely fastened in the base using screw domes
- Expanded high-quality seal (PU)
- Processing areas and versatile mounting options for connectors, switches and buttons
- Temperature resistance: -30°C to 110°C.
- Colour: Upper section transparent, lower section light gray similar. RAL 7035
- IK07 impact strength according to IEC 62262
- Protection class IP66 / IP68 (1.2m-2 h) DIN EN 60529
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Industrial-grade casing
- Material
Polycarbonate (PC)
IP66
IP68
- Factory colour
Light grey
Transparent
- Length
160 mm
- Width
80 mm
- Height
60 mm
- Inside width
71.9 mm
- Inside height
52.9 mm
- Internal depth
151.9 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Dim
(L x W x H) 160 x 80 x 60 mm
- RoHS-compliant
Yes
- Type
6U07160806139
Documents & Downloads
Datasheet
Datasheet 3466285 TRU COMPONENTS 6U07160806139 TC-13865140 Industrial-grade casing 160 x 80 x 60 Polycarbonate (PC) Light grey, Transparen
User & Safety Instructions
User & Safety Instructions 3466285 TRU COMPONENTS 6U07160806139 TC-13865140 Industrial-grade casing 160 x 80 x 60 Polycarbonate (PC) Light grey, Transparen
Description
Scope of delivery

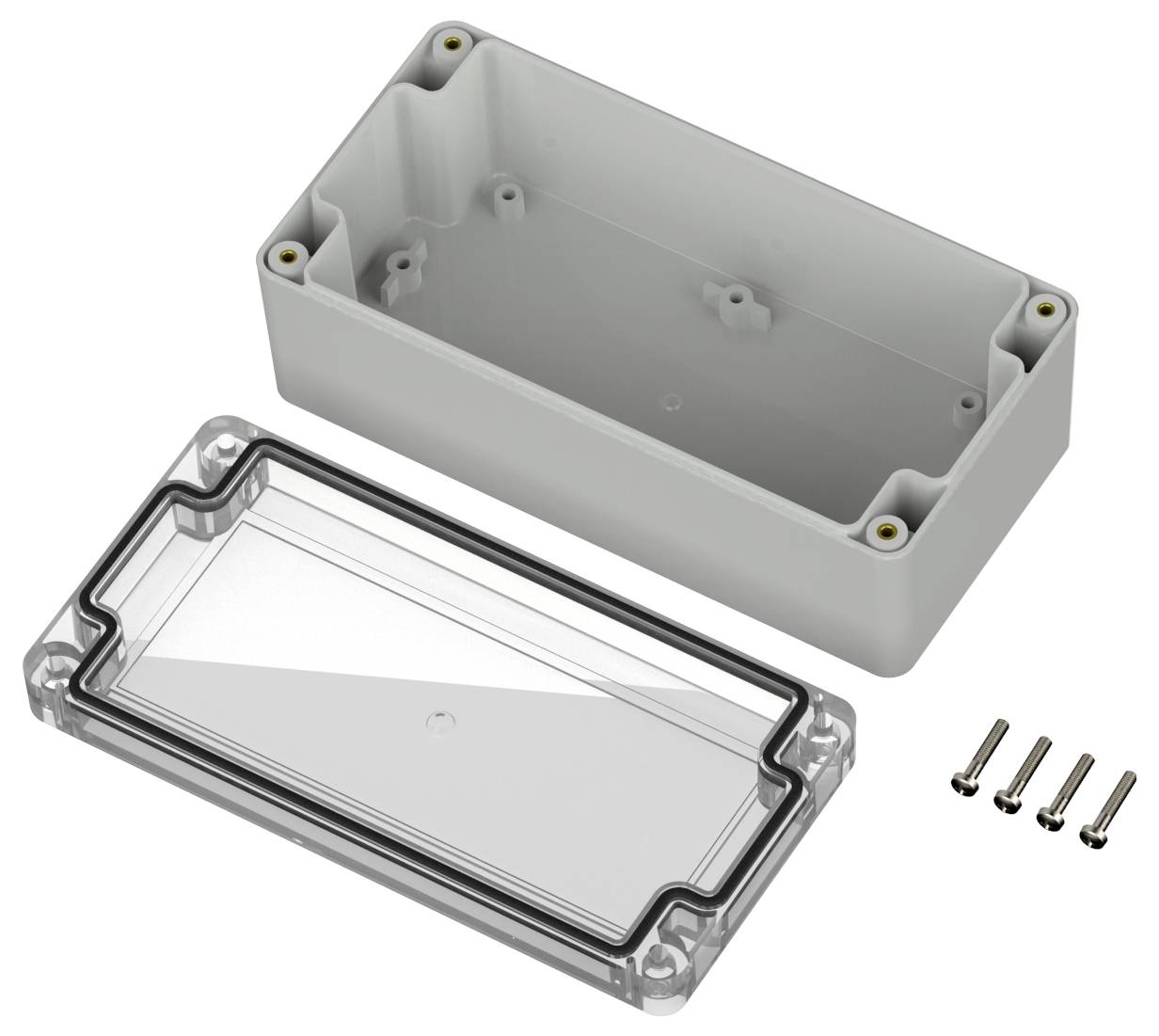

- Upper and lower section
- Cover screws
