TRU COMPONENTS 701401 PBS-28B Tamper-proof pushbutton 250 V AC 2 A 1 x Off/(On) momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tamper-proof pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.23
5
7% = € 0.28
€ 3.95
10
9% = € 0.39
€ 3.84
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.23 / piece)
€ 6.71
-37 %
€ 4.23
plus VAT.
14-day return policy included
Technical specifications
- Product type
Tamper-proof pushbutton
- Switch/button features
Convex
- Casing/button colour
Silver
- Functions
momentary
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Material
Brass
- Connection
Screws
- Contact resistance
max. 20 A mΩ
- Switching voltage
250 V AC
- Switching current (max.)
2 A
- Dielectric strength
1000 V/AC/60 s
- Durability
50000 cycles

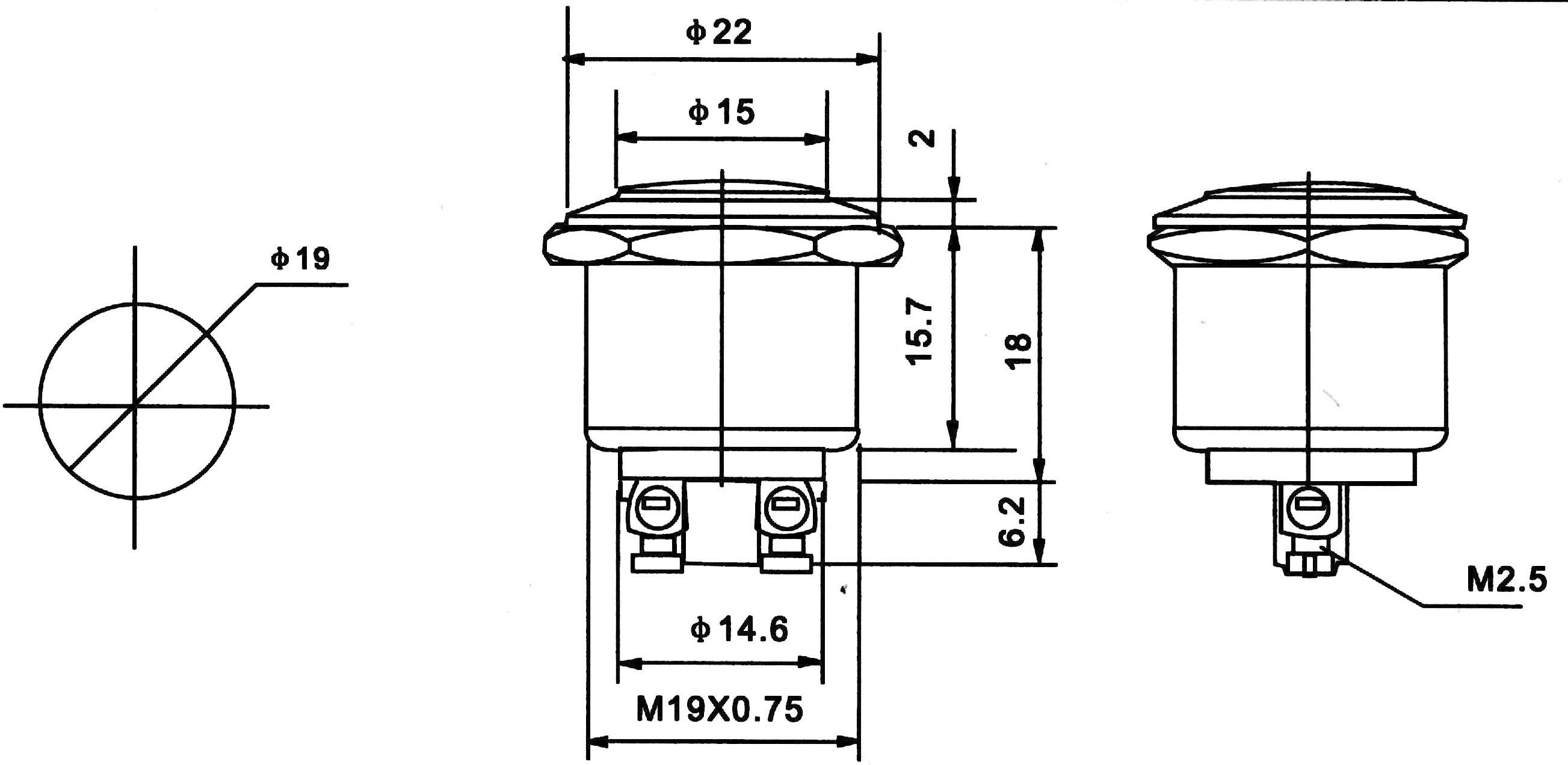

- Recess diameter
19 mm
- Content
1 pc(s)
- Insulation resistance
(500 V/DC) min. 100 MΩ
- Board thickness (max.)
15.7 mm
- Type
PBS-28B
Documents & Downloads
Datasheet
Datasheet 1570803 TRU COMPONENTS 701401 PBS-28B Tamper-proof pushbutton 250 V AC 2 A 1 x Off/(On) momentary 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1570803 TRU COMPONENTS 701401 PBS-28B Tamper-proof pushbutton 250 V AC 2 A 1 x Off/(On) momentary 1 pc(s)
Description
Robust design.
Hints
With description of switching position, the value in brackets are intended which deal with button function.
