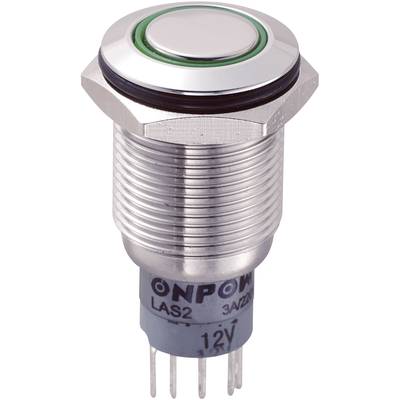

TRU COMPONENTS 701818 LAS2GQF-11ZE/G/12V/S/P Tamper-proof pushbutton 250 V AC 3 A 1 x On/On latch Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tamper-proof pushbutton
Lighting type
Circular lighting
Switch position
1 x On/On
Contact type
1 change-over
Connection
Soldering
Datasheet (PDF)
277 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.61
5
6% = € 0.46
€ 7.15
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.61 / piece)
€
Technical specifications
- Voltage bulb 12 V
- Product type
Tamper-proof pushbutton
- Switch/button features
Planar
- Casing/button colour
Stainless steel
- Functions
latch
- Lighting type
Circular lighting
- Colour
Green
- Bulb type
LED (monochrome)
- Key type
Flush
- Switch position
1 x On/On
- Contact type
1 change-over
- Material
Stainless steel
- Connection
Soldering
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Recess diameter
16 mm
- Content
1 pc(s)
- Dim
- RoHS-compliant
- Type
LAS2GQF-11ZE/G/12V/S/P
- Material (details)
Stainless steel
- Recess diameter (details)
16 mm
- Type
LAS2GQF-11ZE/G/12V/S/P
Documents & Downloads
Datasheet
Datasheet 701818 TRU COMPONENTS 701818 LAS2GQF-11ZE/G/12V/S/P Tamper-proof pushbutton 250 V AC 3 A 1 x On/On latch Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701818 TRU COMPONENTS 701818 LAS2GQF-11ZE/G/12V/S/P Tamper-proof pushbutton 250 V AC 3 A 1 x On/On latch Green 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
