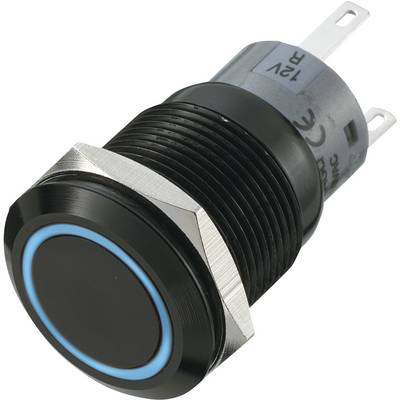

TRU COMPONENTS 702182 LAS1-AGQ-11E/B Tamper-proof pushbutton 250 V AC 5 A 1 x Off/(On) momentary Blue (Ø x L) 22 mm x 37
EAN:
Part number:
Item no:
Product type
Tamper-proof pushbutton
Lighting type
Circular lighting
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Type C CEE 7/16 plug 2.8 mm
Datasheet (PDF)
172 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.71
3
6% = € 0.71
€ 12.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.71 / piece)
€ 21.00
-39 %
€
Technical specifications
- Voltage bulb 12 V
- Product type
Tamper-proof pushbutton
- Switch/button features
Planar
- Casing/button colour
Black
- Functions
momentary
- Type
1 NC, 1 NO contact
- Lighting type
Circular lighting
- Colour
Blue
- Bulb type
LED (monochrome)
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Material
Stainless steel
- Contact material
Silver alloy
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Length
37 mm
- (Ø)
22 mm
- Recess diameter
19 mm
IP67
- Content
1 pc(s)
- Dim
(Ø x L) 22 mm x 37 mm
- RoHS-compliant
Yes
- Board thickness (max.)
10 mm
- Type
LAS1-AGQ-11E/B
- Material (details)
Stainless steel
- Recess diameter (details)
19 mm
- Switching voltage
250 V AC
- Switching current
5 A
- Type
LAS1-AGQ-11E/B
- Connection
Flat plug 2.8 x 0.5 mm
- Temperature range
-20 - +55 °C
Documents & Downloads
Datasheet
Datasheet 702182 TRU COMPONENTS 702182 LAS1-AGQ-11E/B Tamper-proof pushbutton 250 V AC 5 A 1 x Off/(On) momentary Blue (Ø x L) 22 mm x 37
Datasheet 702182 TRU COMPONENTS 702182 LAS1-AGQ-11E/B Tamper-proof pushbutton 250 V AC 5 A 1 x Off/(On) momentary Blue (Ø x L) 22 mm x 37
User & Safety Instructions
User & Safety Instructions 702182 TRU COMPONENTS 702182 LAS1-AGQ-11E/B Tamper-proof pushbutton 250 V AC 5 A 1 x Off/(On) momentary Blue (Ø x L) 22 mm x 37
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
