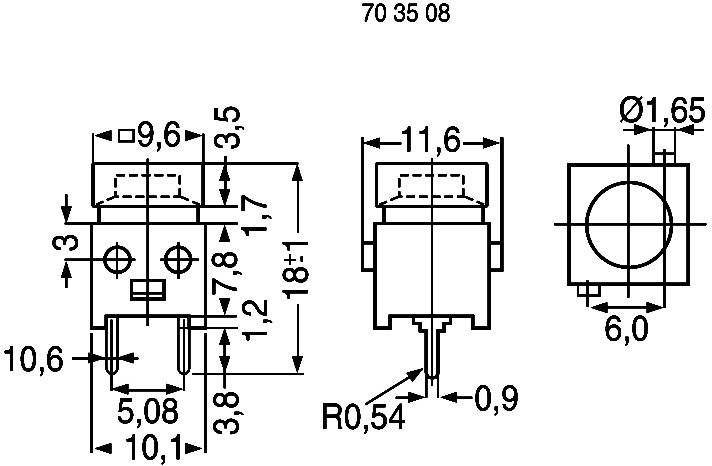

Image similar
1/2

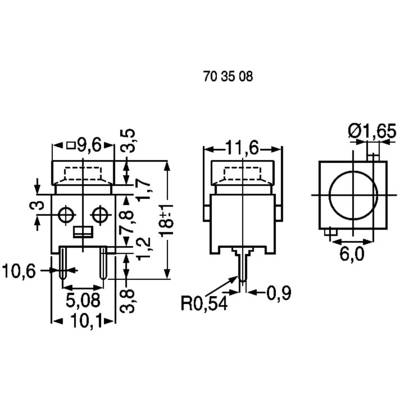

Image similar
TRU COMPONENTS 703508 DS-660S-S RD Pushbutton 100 V 1 A 1 x Off/(On) momentary (L x W) 10 mm x 10 mm 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.53
10
8% = € 0.19
€ 2.34
25
10% = € 0.26
€ 2.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.53 / piece)
€ 2.53
plus VAT.
Highlights & Details
Miniature adjacent PCB push button
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Pushbutton
- Switch/button features
Convex
- Casing/button colour
Red
- Functions
momentary
- Type
Pushbutton 1-pole (On)
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Material
Plastic
- Connection
Print
- Switching voltage
100 V
- Switching current (max.)
1 A
- Length
10 mm
- Width
10 mm
- Content
1 pc(s)
- Dim
(L x W) 10 mm x 10 mm
- RoHS-compliant
Yes
- Front panel cut-out
10 x 10 mm
- Board thickness (max.)
7.8 mm
- Type
DS-660S-S RD
Documents & Downloads
Datasheet
Datasheet 1564864 TRU COMPONENTS 703508 DS-660S-S RD Pushbutton 100 V 1 A 1 x Off/(On) momentary (L x W) 10 mm x 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1564864 TRU COMPONENTS 703508 DS-660S-S RD Pushbutton 100 V 1 A 1 x Off/(On) momentary (L x W) 10 mm x 10 mm 1 pc(s)
Description
Very easy movement, momentary contact. Locking nubs allow a limitless number of push buttons to be lined up adjacently in the smallest possible space.
Hints
With description of switching position, the value in brackets are intended which deal with button function.
