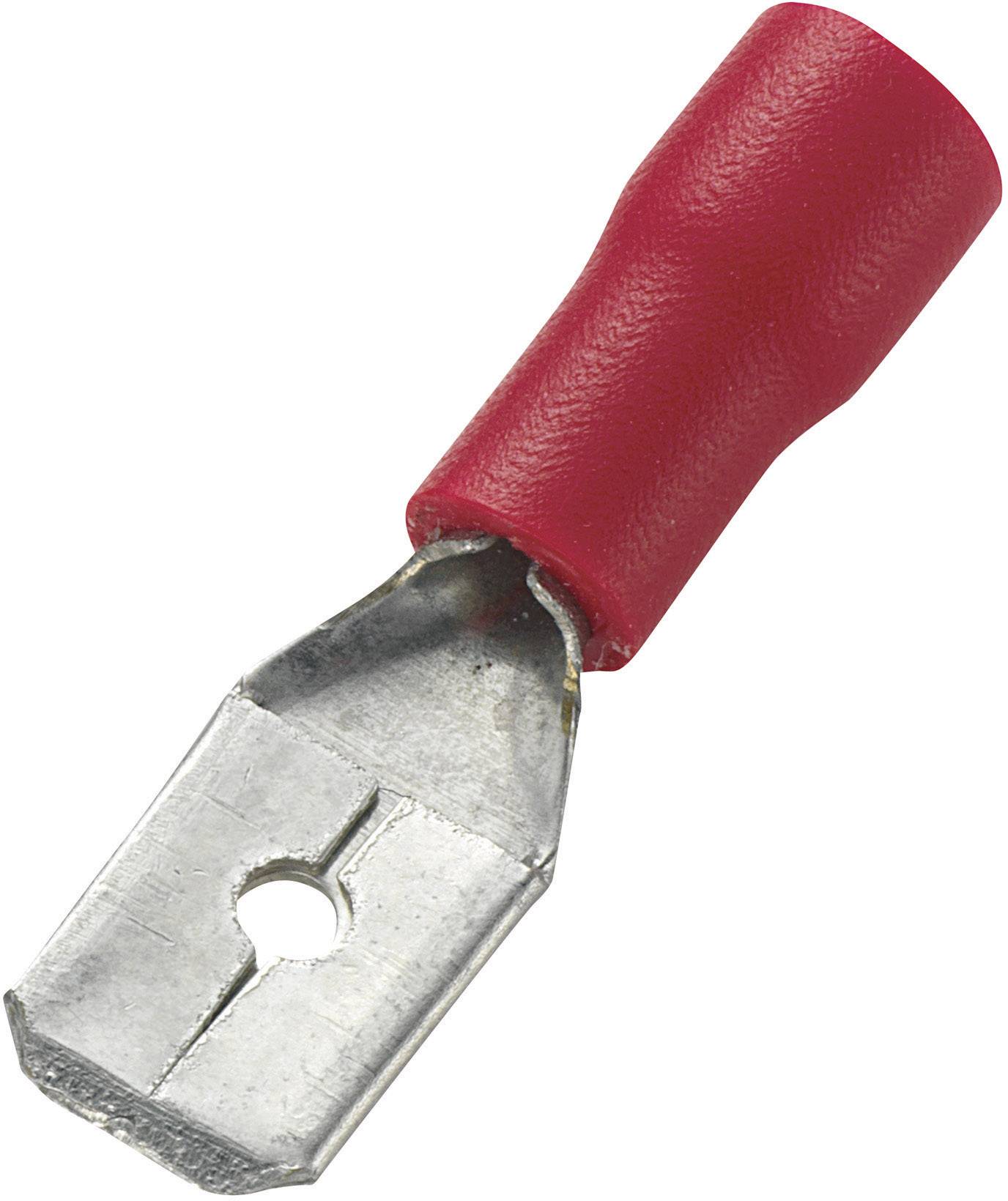

TRU COMPONENTS 745410 Blade terminal Connector width: 6.4 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1
EAN:
Part number:
Item no:
Product type
Blade terminal
Connector width
6.4 mm
Connector thickness
0.8 mm
Insulation type
Partially insulated
Connection angle
180 °
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
Blade terminal
- Red
- Cross section: 0.5 - 1.5 mm²
- Type (misc.): 6.4 x 0.8 mm
Our service for you
Technical specifications
- Product type
Blade terminal
- Factory colour
Red
- Connector width
6.4 mm
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Copper silver plated
- Content
100 pc(s)
- Manufacturer part #
745410
- Type
MDD1.25-250
- max. cross section
1.50 mm²
- Min. cross section
0.50 mm²
- Insulation material
PVC
- Cross-section range
0.50 - 1.50 mm²
- RoHS-compliant
Yes
- Size
6.4 x 0.8 mm
- Temperature range
Up to +70 °C
