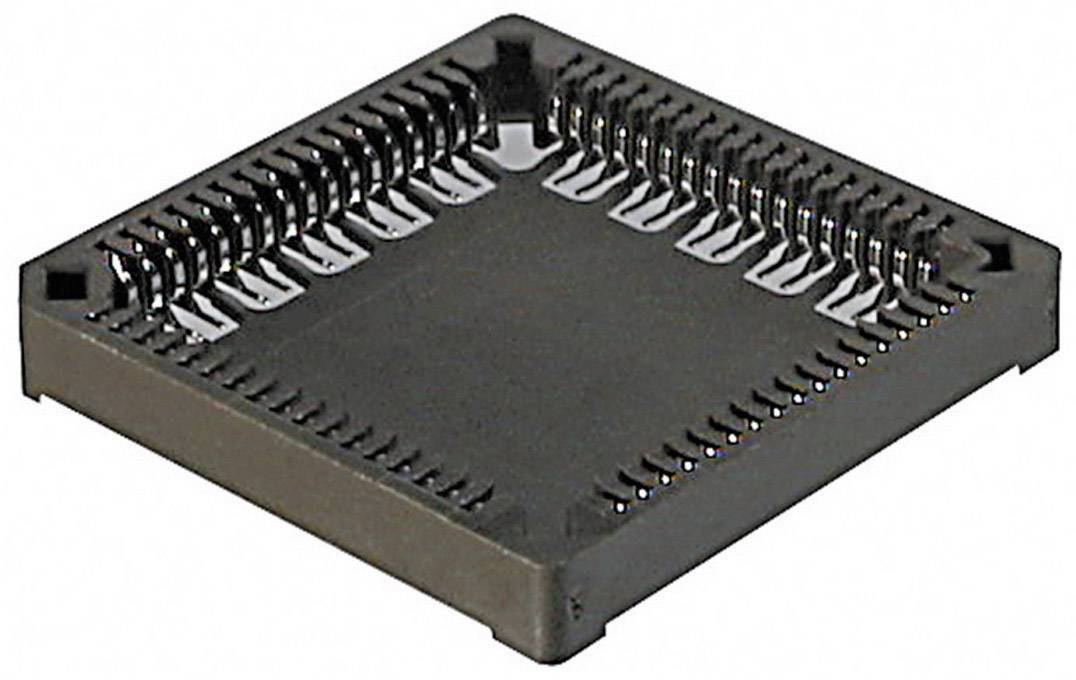

An empty square IC socket, suitable for inserting an integrated circuit, with pins visible on all sides.

Image similar

An empty square IC socket, suitable for inserting an integrated circuit, with pins visible on all sides.

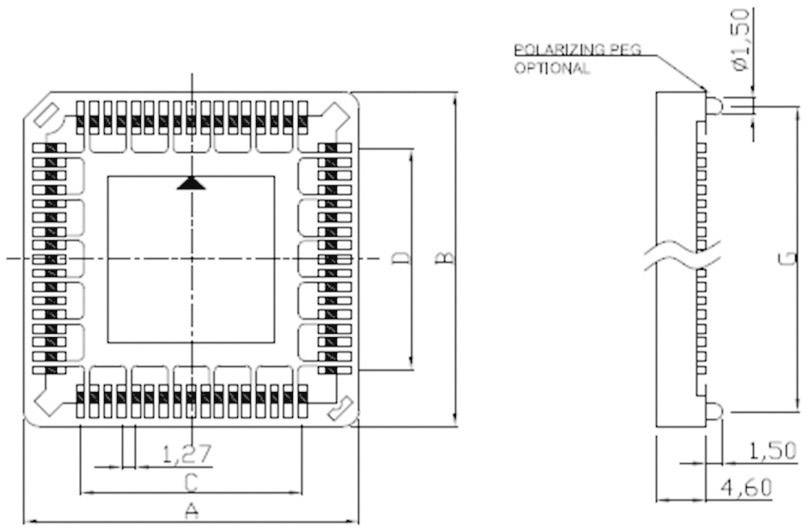

'Technical drawing of a square microchip with dimensions and pin layout; side view shows overall thickness.'

1/2

Image similar

TRU COMPONENTS

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Wed, 16 Sep

319 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 0.35 / piece)

€ 1.17

-70 %

€ 1.05

plus VAT.

Report legal concerns

Technical specifications

Material: (contact) Phosphor Bronze, (contact surface) tin plated

Type: A CCS028-Z-SM

Number of pins: 28

CS: 7.62 mm

Material: Polyamide 9T

Length: 17.85 mm

Width: 17.85 mm

Dim: (L x W) 17.85 mm x 17.85 mm

Min. temperature: -40 °C

Max. temperature: 105 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: PLCC socket

Documents & Downloads

Datasheet

English

Datasheet 1586549 TRU COMPONENTS 1586549 A CCS028-Z-SM PLCC socket Contact spacing: 7.62 mm Number of pins: 28 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1586549 TRU COMPONENTS 1586549 A CCS028-Z-SM PLCC socket Contact spacing: 7.62 mm Number of pins: 28 1 pc(s)
