Buy TRU COMPONENTS Cable connector IP68 waterproof, screw contact 2-pole, 0.5-1.5 mm² TC-14745232 Black TRU COMPONENTS Conte

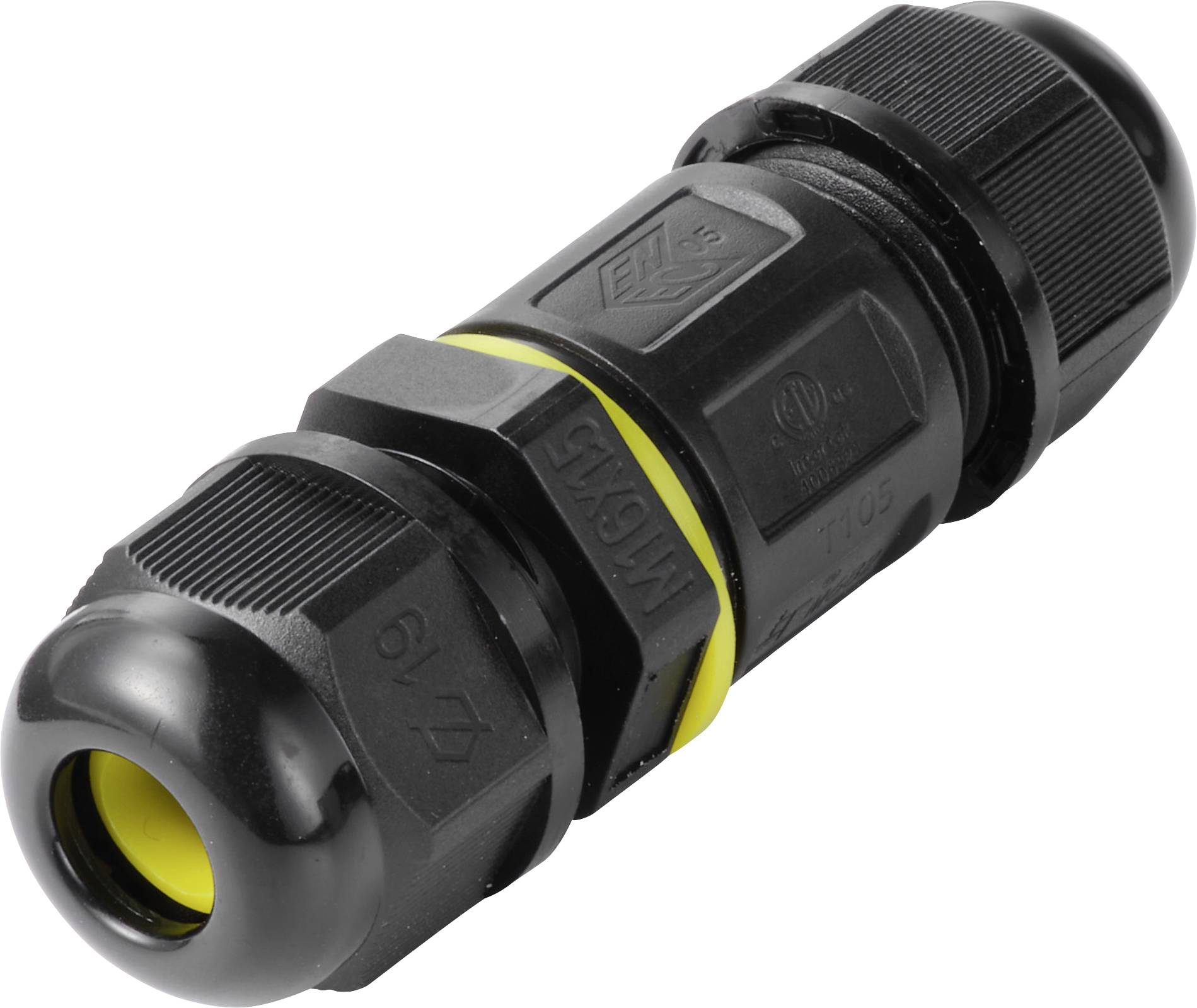

Black waterproof cable gland with yellow sealing ring, shown on a white background.

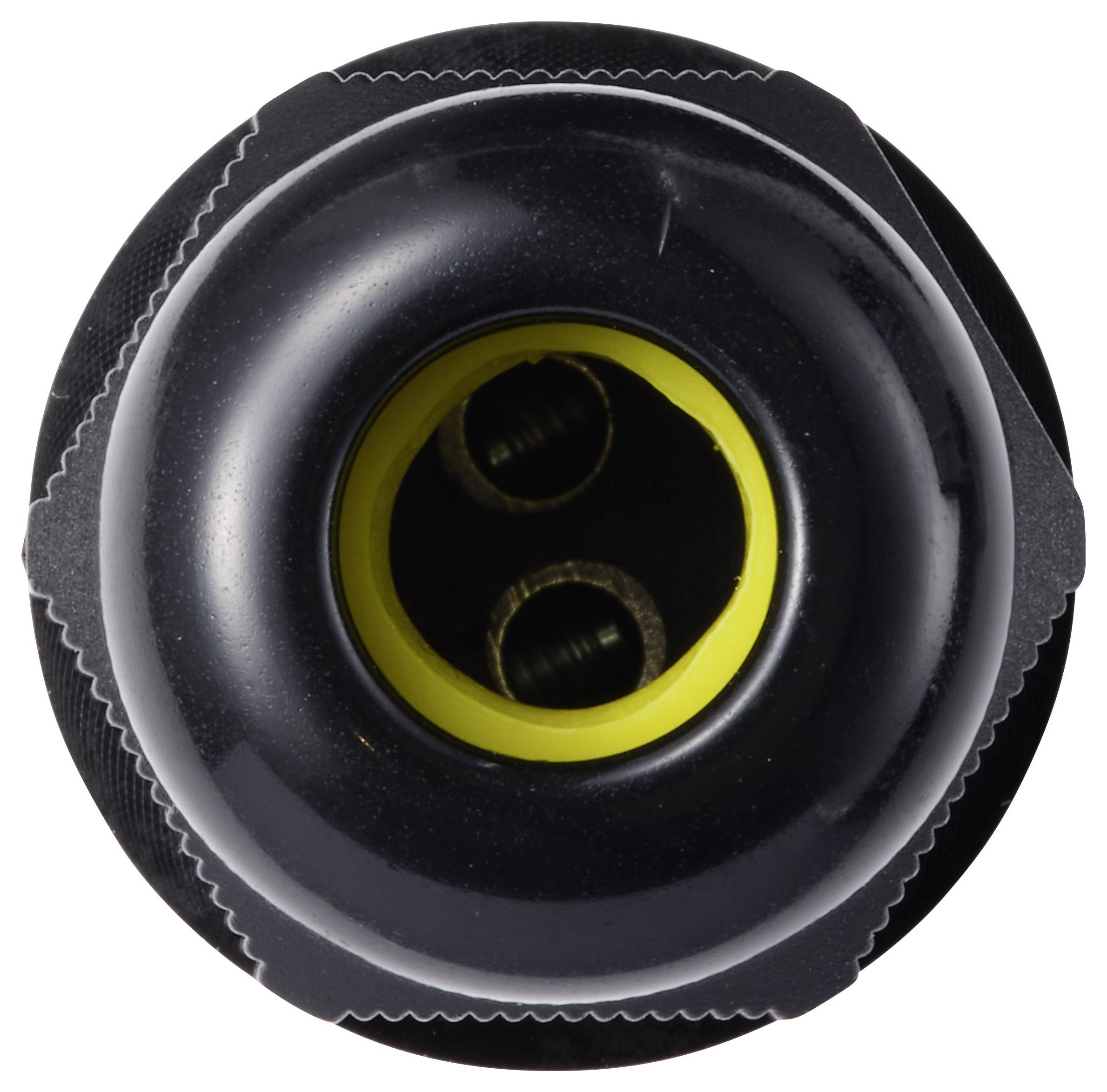

Close-up of a black circular electrical connector with a yellow inner ring and two visible socket contacts.

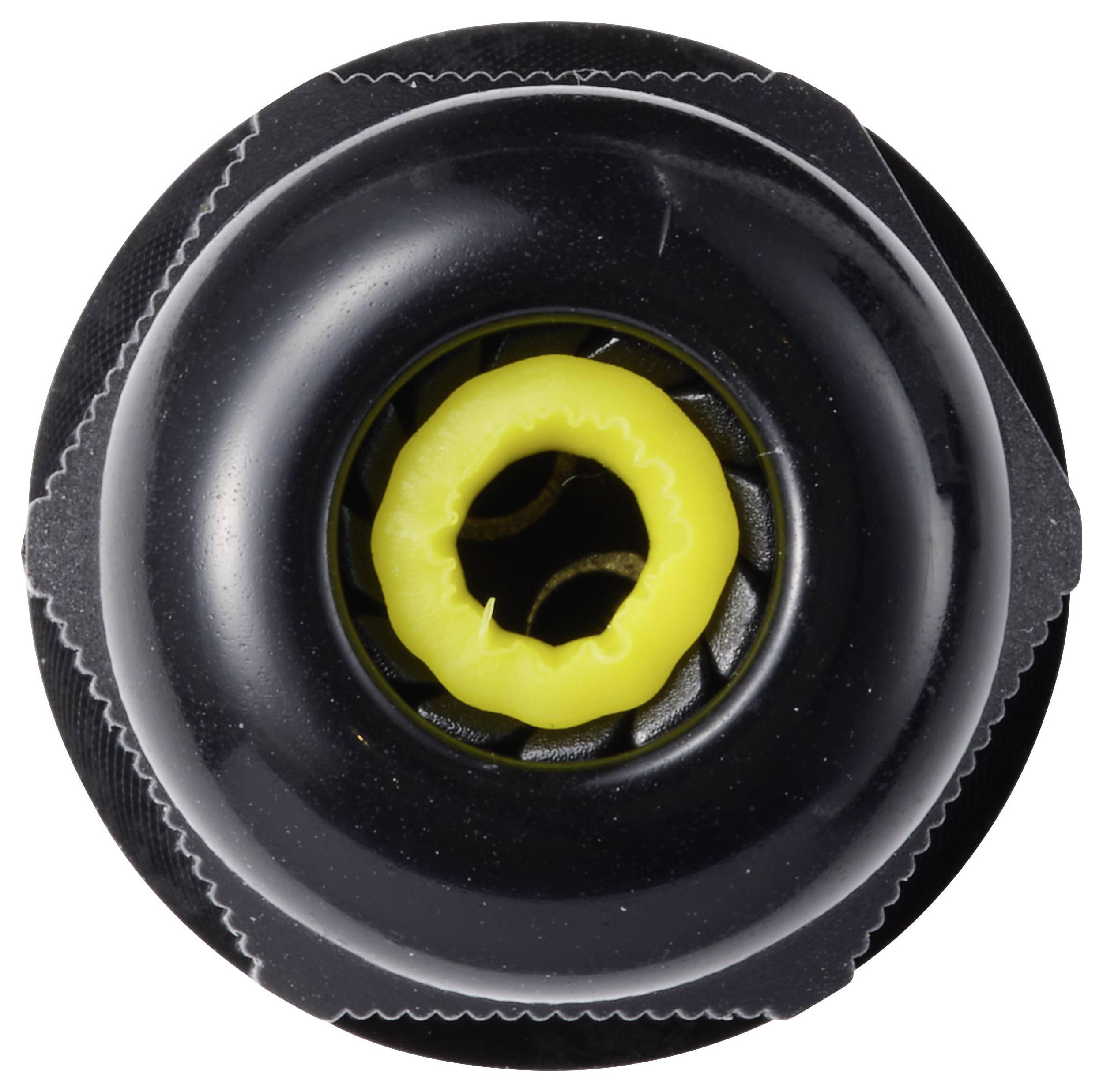

Close-up of a black circular plastic cap or nozzle with a bright yellow center opening, shown against a white background.

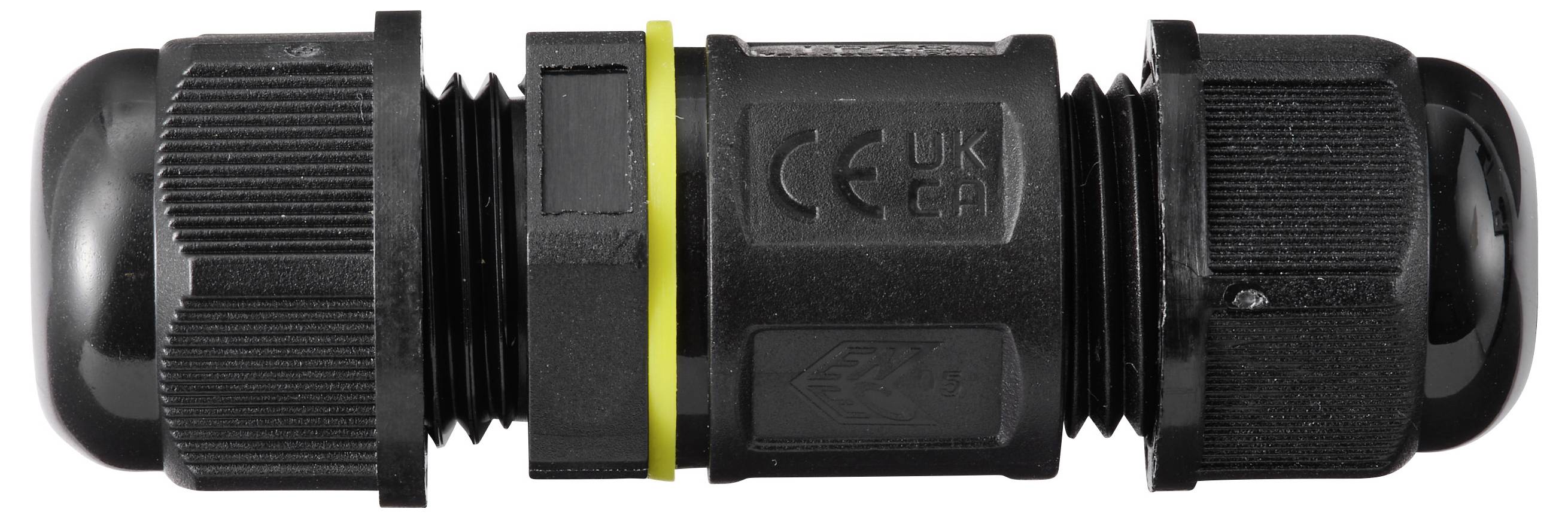

Black waterproof cable gland connector with ribbed end caps and a yellow sealing ring, shown on a white background

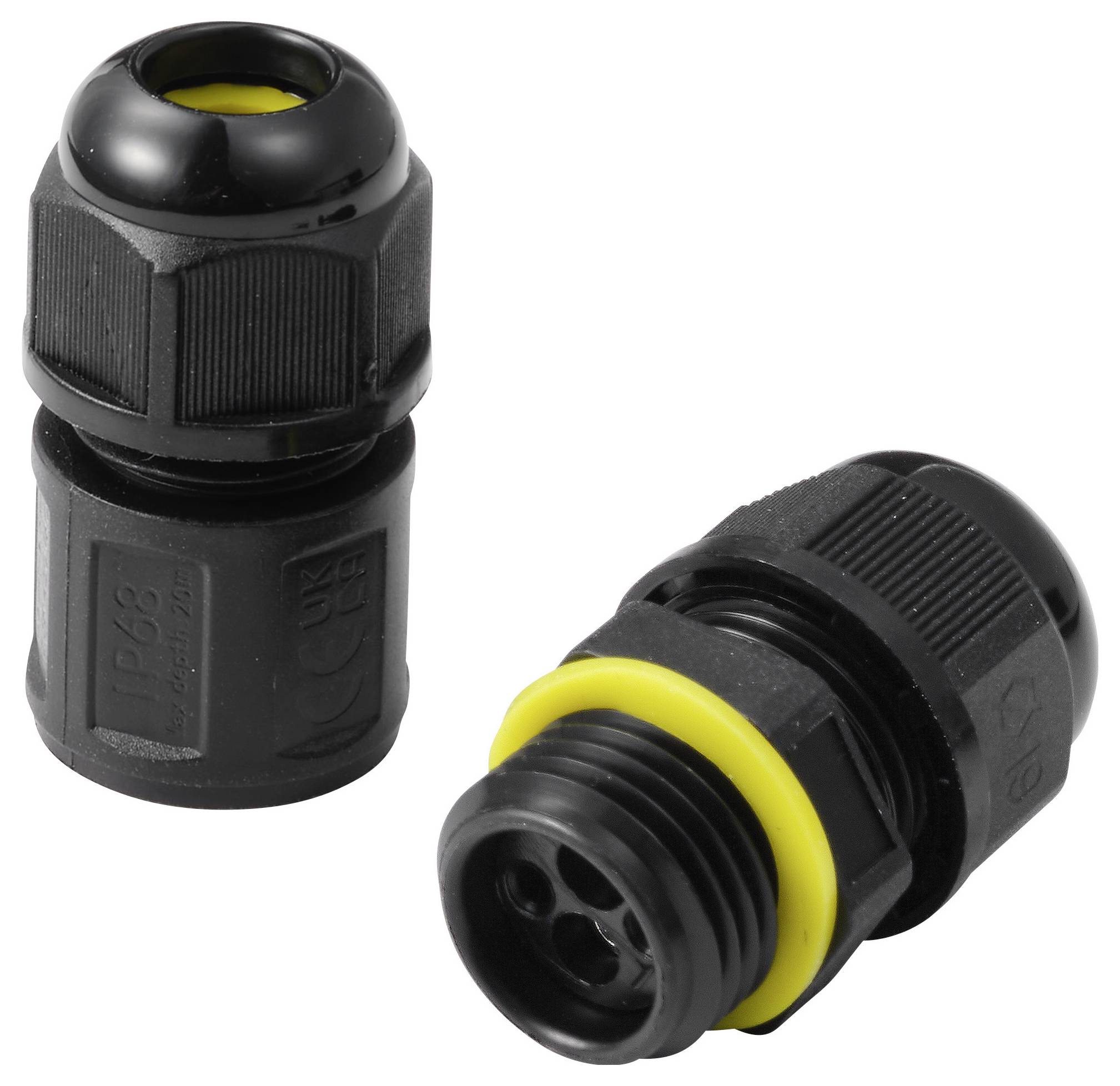

Two black plastic cable glands with yellow sealing rings on a white background, one standing upright and one lying on its side.

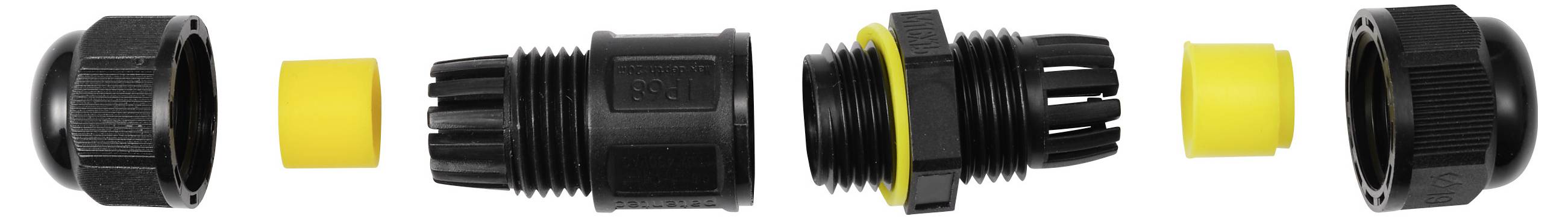

Black plastic cable gland connector parts shown in exploded view with two yellow inserts and center coupling pieces on a white background.

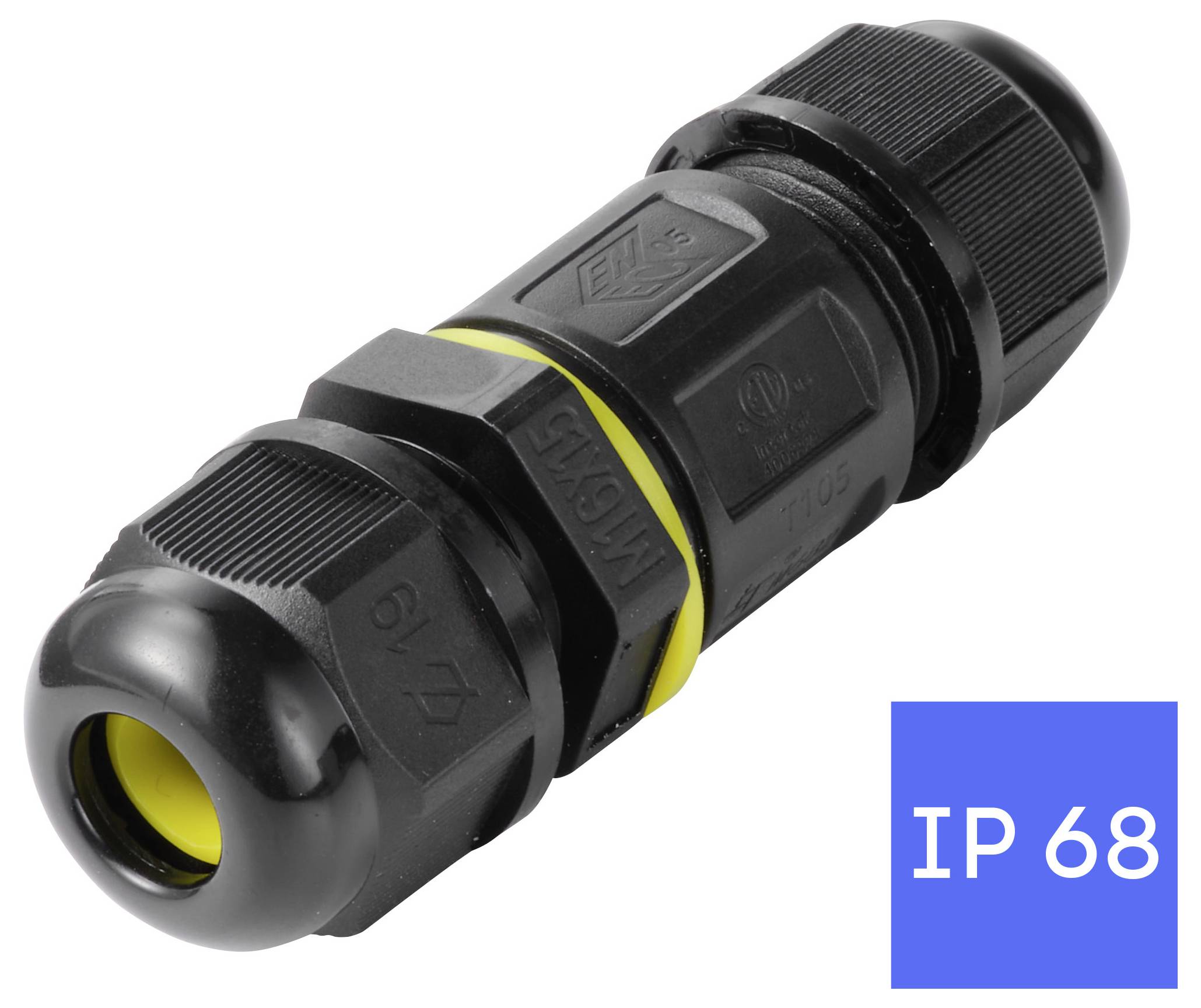

Black waterproof cable connector with yellow sealing ring, labeled IP68, shown on a white background.

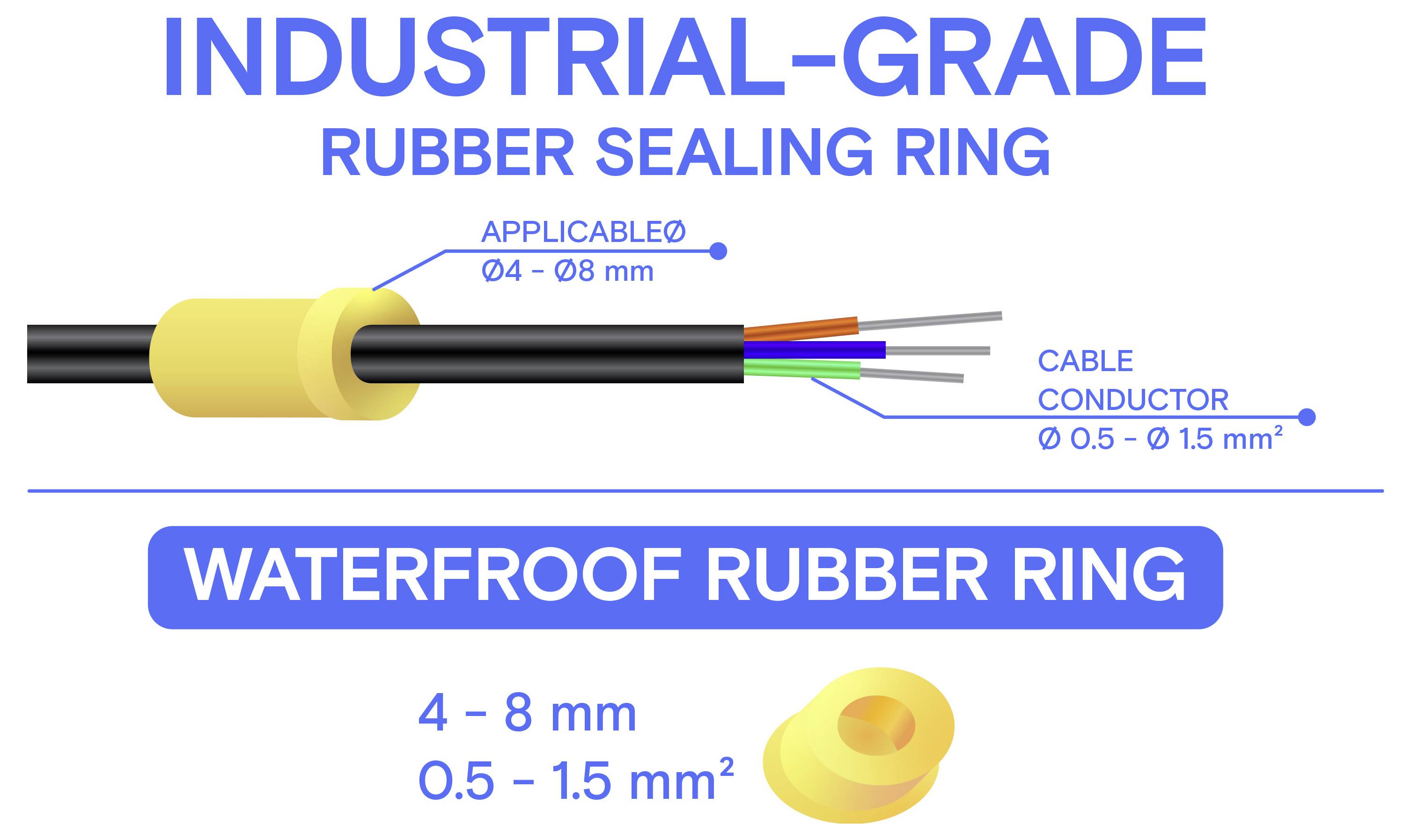

Diagram of an industrial-grade rubber sealing ring for cables, showing waterproof cable sealing for 4–8 mm diameter and 0.5–1.5 mm² conductors.

1/8

Product type

Cable connector

Mounting type

Screw fastening

Connector type

Waterproof connector

AWG

16-18

Connector cross section

0.5-1.5 mm²

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

1222 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.50 / piece)

€ 1.50

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Cable connector IP68 waterproof, screw contact 2-pole, 0.5-1.5 mm²

For 2-pole connection
IP68 Waterproof, Moisture-proof, Dust-proof, and Anti-UV protection
Accepts cable outer diameters of 4-8 mm
Wire cross-section capacity: 0.5-1.5 mm²
Rated for use under fresh water and underground applications

Our service for you

Technical specifications

Product type: Cable connector

Mounting type: Screw fastening

Connector type: Waterproof connector

: 16-18

Connector cross section: 0.5-1.5 mm²

Rated voltage: 450 V AC

Test current: 17.5 A

Case material: PA 66

Total no. of pins: 2

Manufacturer part #: TC-14745232

Factory colour: Black

Industrial packaging: No

Content: 1 pc(s)

Contact material: Copper

Core diameter: 8 mm

Dimensions: 63.2 x 19.5 mm

Number of pins: 2

: IP68

Type: TC-14745232

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3686308 TRU COMPONENTS Cable connector IP68 waterproof, screw contact 2-pole, 0.5-1.5 mm² TC-14745232 Black TRU COMPONENTS Conte

User & Safety Instructions

User & Safety Instructions 3686308 TRU COMPONENTS Cable connector IP68 waterproof, screw contact 2-pole, 0.5-1.5 mm² TC-14745232 Black TRU COMPONENTS Conte

Description

Features

Built-in rubber ring and clamping nut
Water submersion up to 20 m for 150 hours
Connector made of UL94V-2 fire and flame retardant material
Resistance to high and low temperatures

Scope of delivery

Connector incl. 2x M16 sealing inserts (4-8 mm)
