Buy TRU COMPONENTS Directly actuated valve TC-14211676 TC-2W3120GBN-DC24V 24 V DC G 3/4 Nominal width (details) 20 mm 1 pc(s

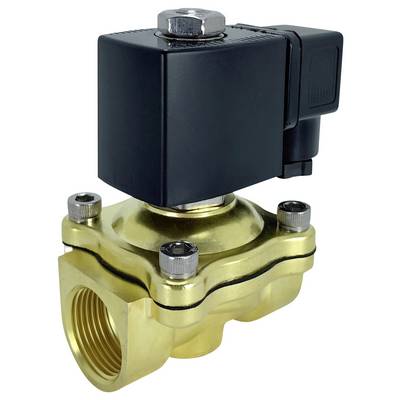

A brass solenoid valve with a black actuator on top, designed for controlling fluid flow in piping systems.

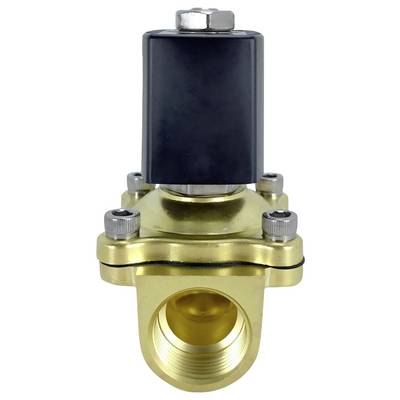

Brass solenoid valve with a black cylindrical actuator on top, designed for controlling fluid or gas flow in a pipeline.

1/3

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

142 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 33.61 / piece)

€ 33.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

G 3/4 Directly actuated valve, NC 24 V DC

2 ports/2 position
Normally closed (NC)
Port size: G3/4
Fluid: Air, Water
Working pressure: 0 - 10 Bar

Technical specifications

Product type: Directly actuated valve

Operating voltage: 24 V DC

Max. operating pressure: 10 bar

Enclosure material: Brass

Connection: G 3/4

Media temperature (range): -10 up to 80 °C

Manufacturer part #: TC-14211676

Operating pressure (min.): 0 bar

Sealant: NBR

Function: 2/2-way

Max. media temperature: 80 °C

Media temperature (min.): -10 °C

Medium: Inert liquids
Inert gases

Nominal width: 20 mm

Operating principle: OFF/NC

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3552919 TRU COMPONENTS Directly actuated valve TC-14211676 TC-2W3120GBN-DC24V 24 V DC G 3/4 Nominal width (details) 20 mm 1 pc(s

User & Safety Instructions

User & Safety Instructions 3552919 TRU COMPONENTS Directly actuated valve TC-14211676 TC-2W3120GBN-DC24V 24 V DC G 3/4 Nominal width (details) 20 mm 1 pc(s

Description

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
