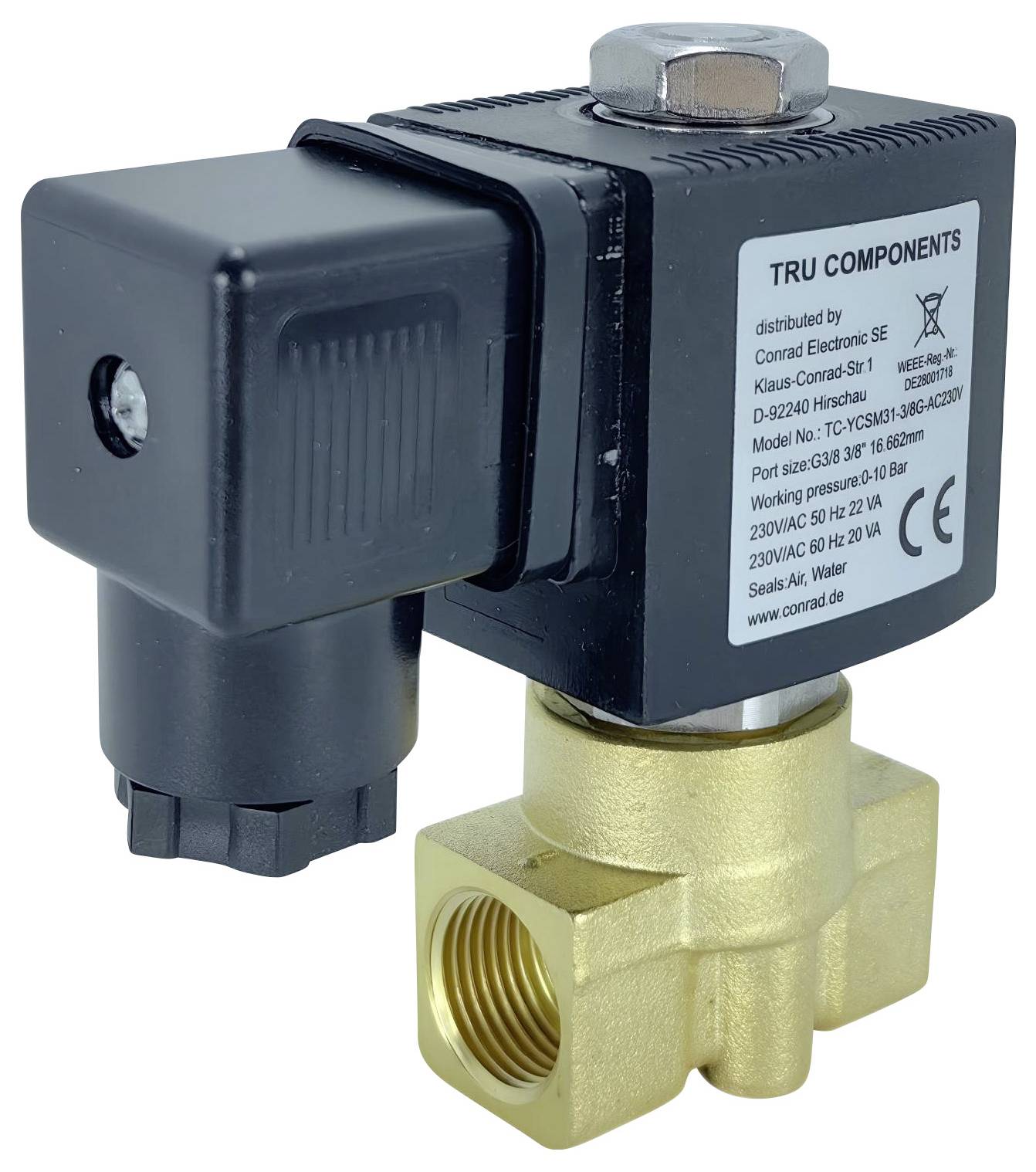

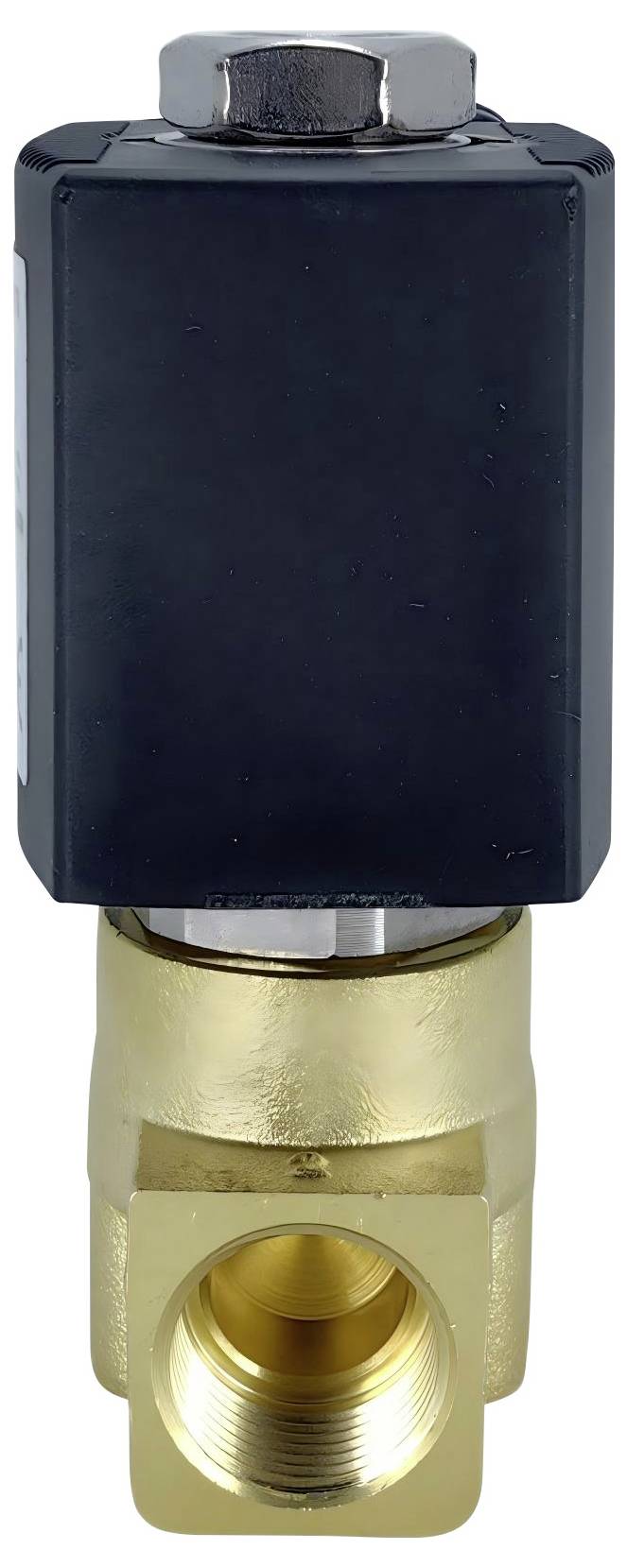

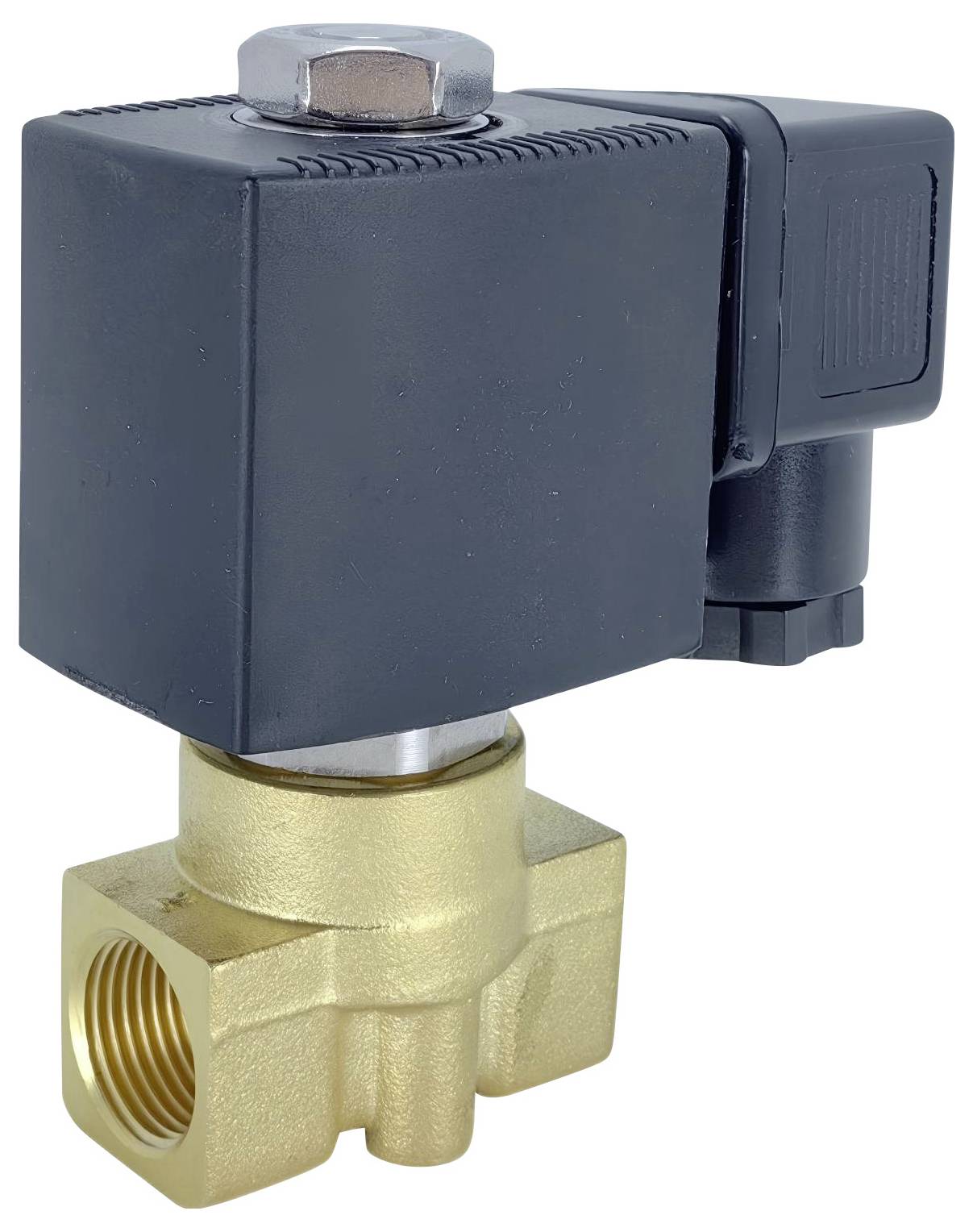

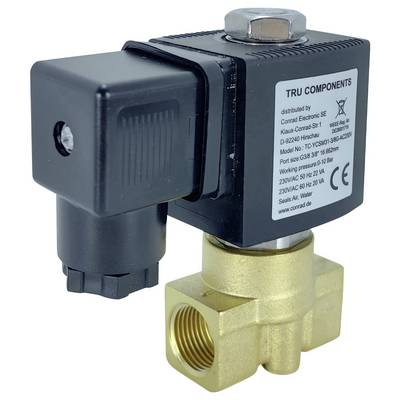

TRU COMPONENTS Directly actuated valve TC-14211688 TC-YCSM31-3/8G-AC230 230 V AC G 3/8 Nominal width (details) 10 mm 1 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
14-day return policy included
Highlights & Details
G 3/8 Directly actuated valve, NC, 230 V AC
- 2 ports/2 position
- Normally closed (NC)
- Port size: G3/8
- Fluid: Air, Water
- Working pressure: 0 - 10 Bar
Technical specifications
- Product type
Directly actuated valve
- Operating voltage
230 V AC
- Max. operating pressure
10 bar
- Enclosure material
Brass
- Connection
G 3/8
- Media temperature (range)
-10 up to 80 °C
- Manufacturer part #
TC-14211688
- Operating pressure (min.)
0 bar
- Sealant
NBR
- Max. media temperature
80 °C
- Media temperature (min.)
-10 °C
- Medium
Inert liquids
Inert gases
- Nominal width
10 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3552922 TRU COMPONENTS Directly actuated valve TC-14211688 TC-YCSM31-3/8G-AC230 230 V AC G 3/8 Nominal width (details) 10 mm 1 p
User & Safety Instructions
User & Safety Instructions 3552922 TRU COMPONENTS Directly actuated valve TC-14211688 TC-YCSM31-3/8G-AC230 230 V AC G 3/8 Nominal width (details) 10 mm 1 p
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
