Buy TRU COMPONENTS EC120-H5-20F7-24P-24CC Rotary switch 5 V 0.5 mA 360 ° 1 pc(s)

A black and silver, multi-pole rotary switch with a pin-shaped handle is visible against a white background.

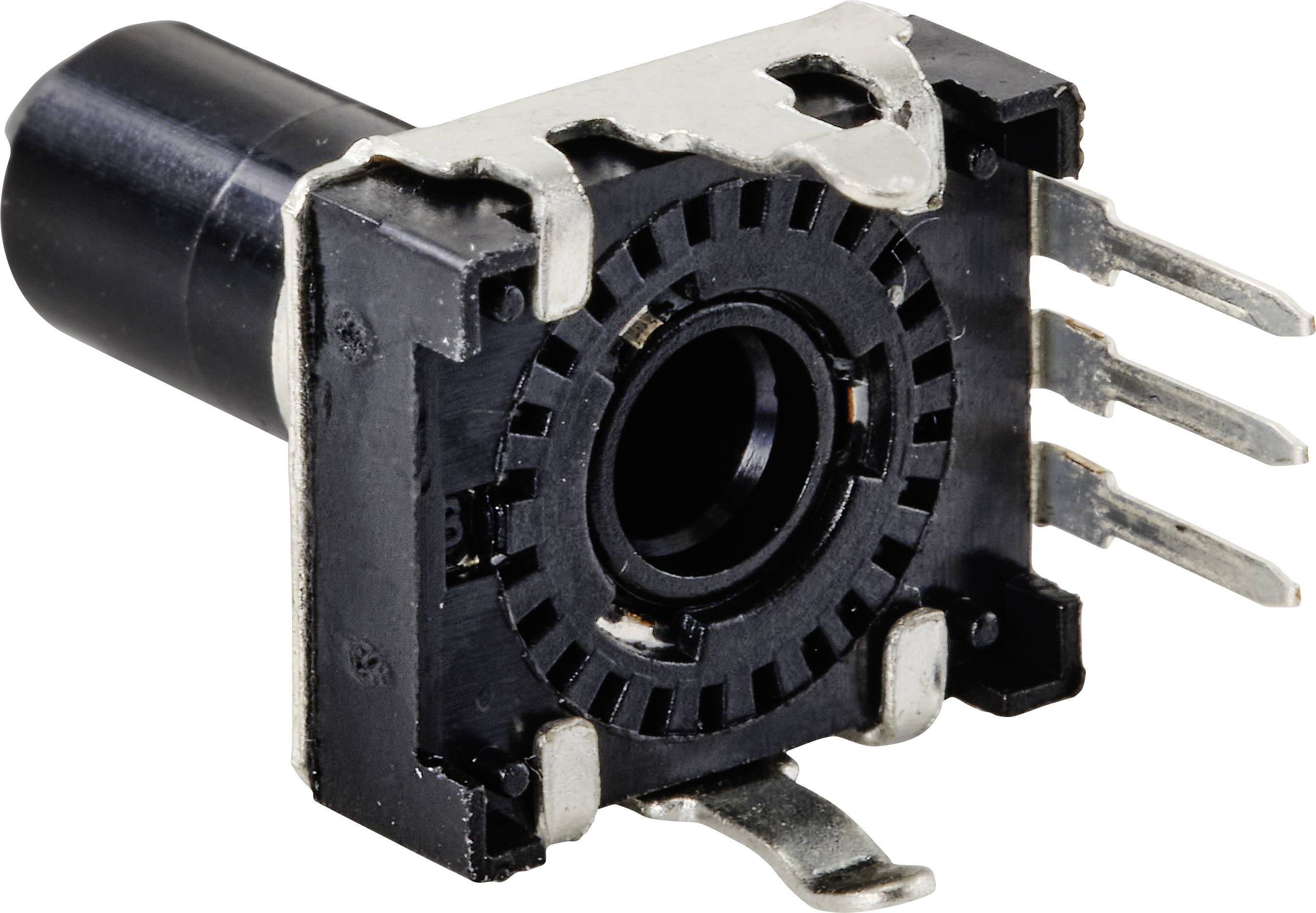

Rotary encoder sensor for electronic devices with black housing and four metal terminals.

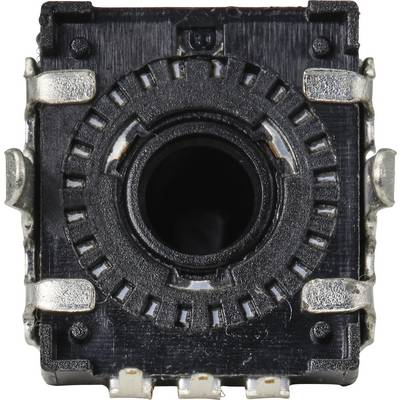

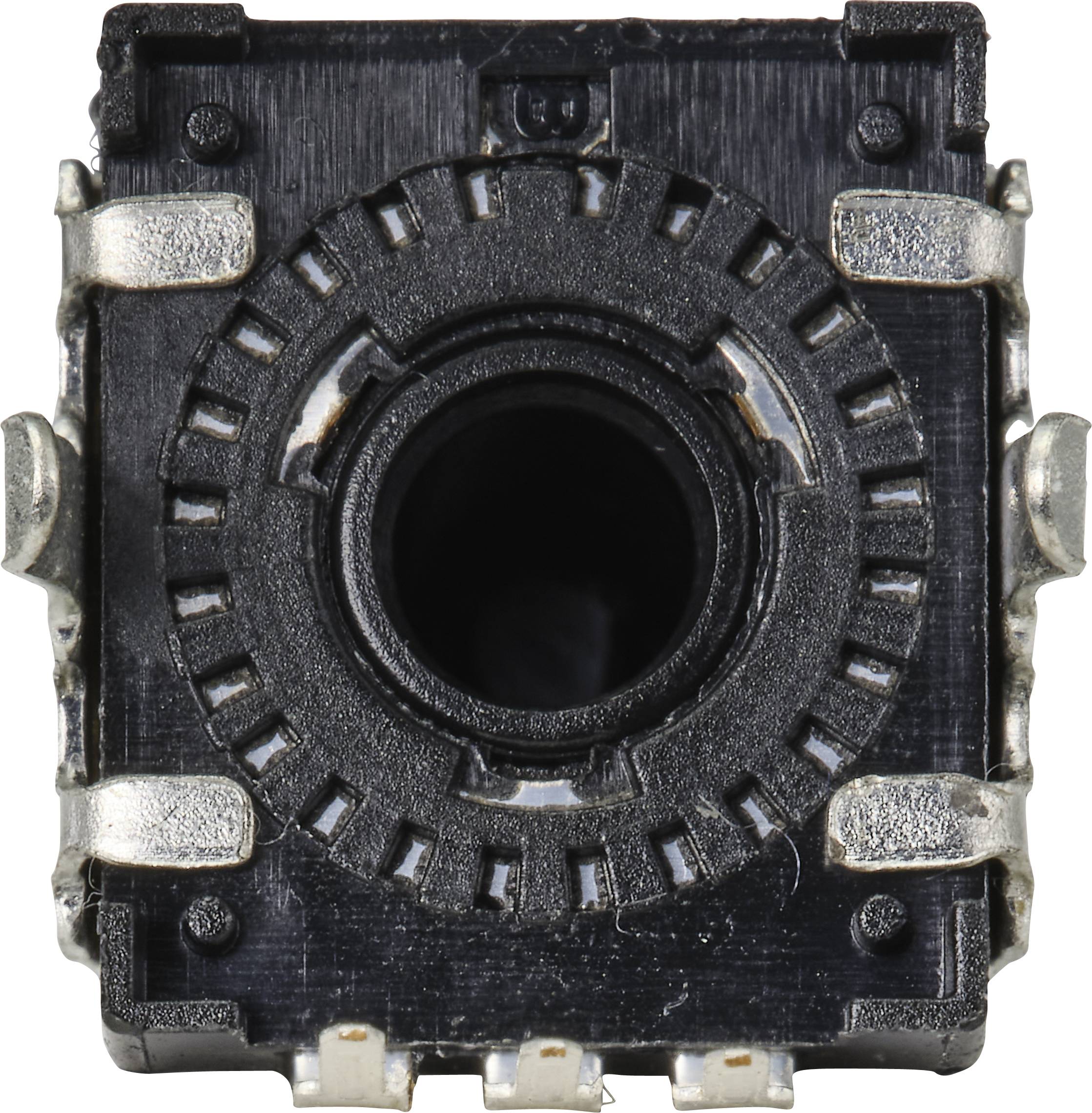

A black and silver cylindrical component, likely part of an electronic or mechanical device, in close-up.

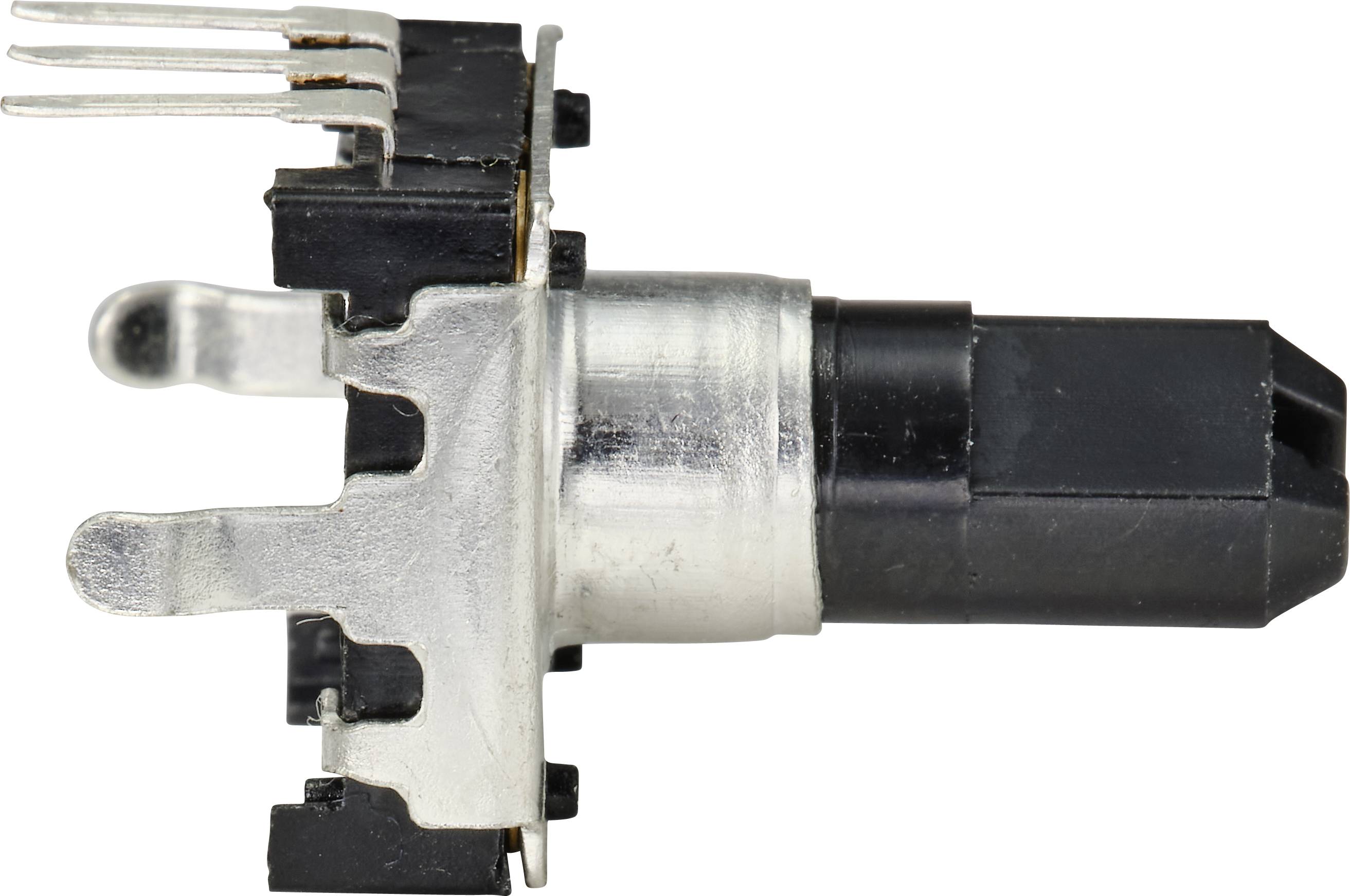

A black rotary encoder with metal mounting and multiple connection pins, a typical component in electronic circuits.

1/4

Product type

Rotary switch

Switching voltage

5 V

Switching current (max.)

0.5 mA

Casing/button colour

Black

Steel

Functions

Contact

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

275 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 2

Total (€ 0.66 / piece)

€ 1.32

plus VAT.

Report legal concerns

Highlights & Details

Rotary switch

Our service for you

Technical specifications

Product type: Rotary switch

Casing/button colour: Black
Steel

Functions: Contact

Switching angle: 360 °

Lighting type: None

Switch position: 1 x On/(On)

Material: Copper alloy
ABS plastic

Contact material: Tin plated

Connection: Solder pins

Contact resistance: ≤ 100 mΩ

Switching voltage: 5 V

Switching current (max.): 0.5 mA

Min. temperature: -10 °C

Max. temperature: 70 °C

Length: 14 mm

Width: 14 mm

Height: 20 mm

Axle Ø: 6 mm

Electrical lifespan: 20000 cycles

Content: 1 pc(s)

Type: EC120-H5-20F7-24P-24CC

Dim: (L x W x H) 14 x 14 x 20 mm

Plastic free packaging: Plastic-free packaging
