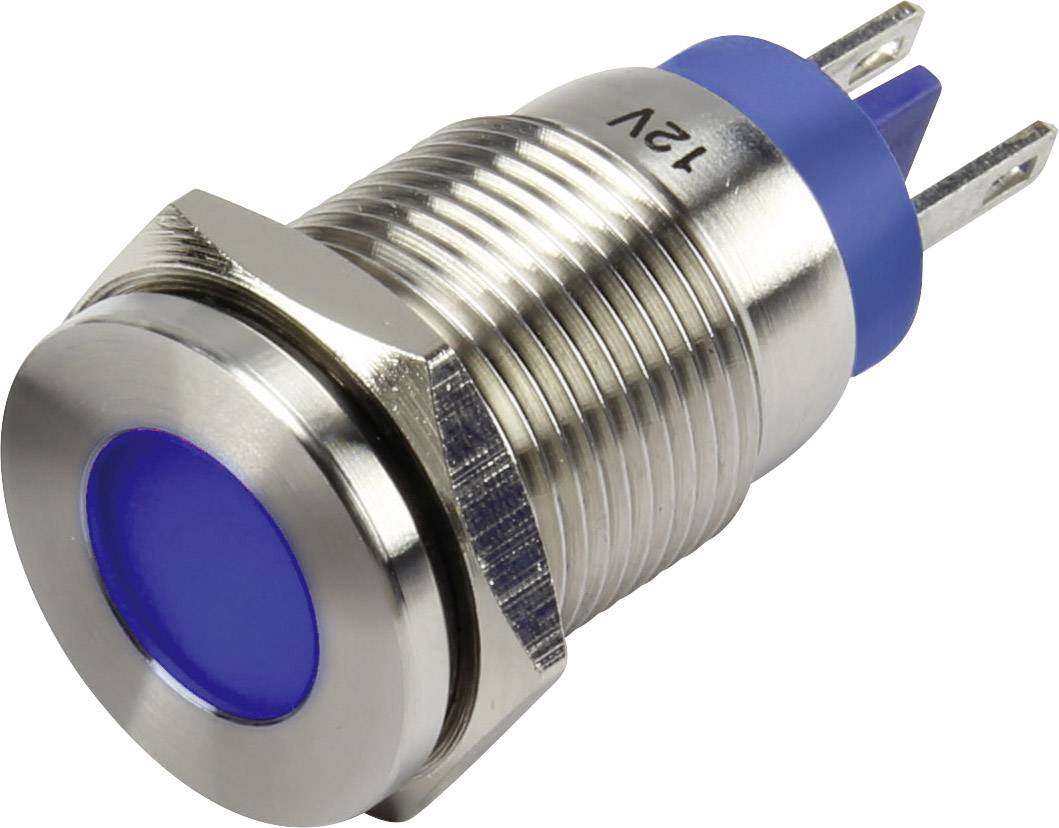

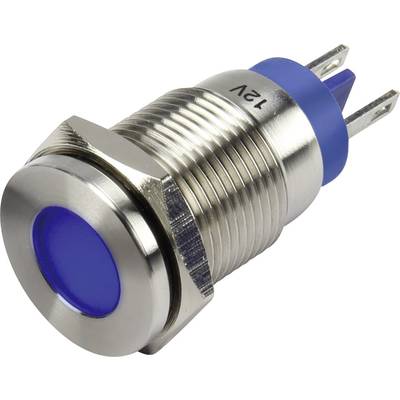

TRU COMPONENTS GQ16F-D/B/12V/N LED indicator light Blue 12 V DC
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
12 V DC
Operating current
15 mA
Recess diameter
16 mm
IP rating
IP67
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 5.03
-28 %
€
Technical specifications
- Product type
LED indicator light
- Type
GQ16F-D/B/12V/N
- Factory colour
Blue
- Operating voltage
12 V DC
- Operating current
15 mA
- Recess diameter
16 mm
- Head height
2 mm
- Case colour
Stainless steel
- Material
Brass
- Material properties
nickel plated
- Mounting type
Screw and union
IP67
- Connection
Screws
- Dim
(Ø x L) 18 mm x 35.5 mm
- Length
35.5 mm
- (Ø)
18 mm
- RoHS-compliant
Yes
n.rel.
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1302138 TRU COMPONENTS GQ16F-D/B/12V/N LED indicator light Blue 12 V DC
Datasheet 1302138 TRU COMPONENTS GQ16F-D/B/12V/N LED indicator light Blue 12 V DC
User & Safety Instructions
User & Safety Instructions 1302138 TRU COMPONENTS GQ16F-D/B/12V/N LED indicator light Blue 12 V DC
