TRU COMPONENTS IR motion detector KMP001-1 230 V AC 220 - 240 V AC 1 maker (W x H) 63 mm x 46 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
IR motion detector
Max. operating voltage
240 V AC
Contact type
1 maker
Max. range
3.6 m
Content
1 pc(s)
Highlights & Details
Conrad Components N/A
Our service for you
Technical specifications
- Range: 30 x 4 m
- Product type
IR motion detector
- Content
1 pc(s)
- Type
KMP001-1
- Operating voltage
230 V AC
- Operating voltage
220 - 240 V AC
- Min. operating voltage
220 V AC
- Max. operating voltage
240 V AC
- Contact type
1 maker
- Switching voltage (max.)
230 V AC
- Max. switching capacity
600 W
- Light sensitivity (min.)
3 lx
- Light sensitivity (max.)
2000 lx

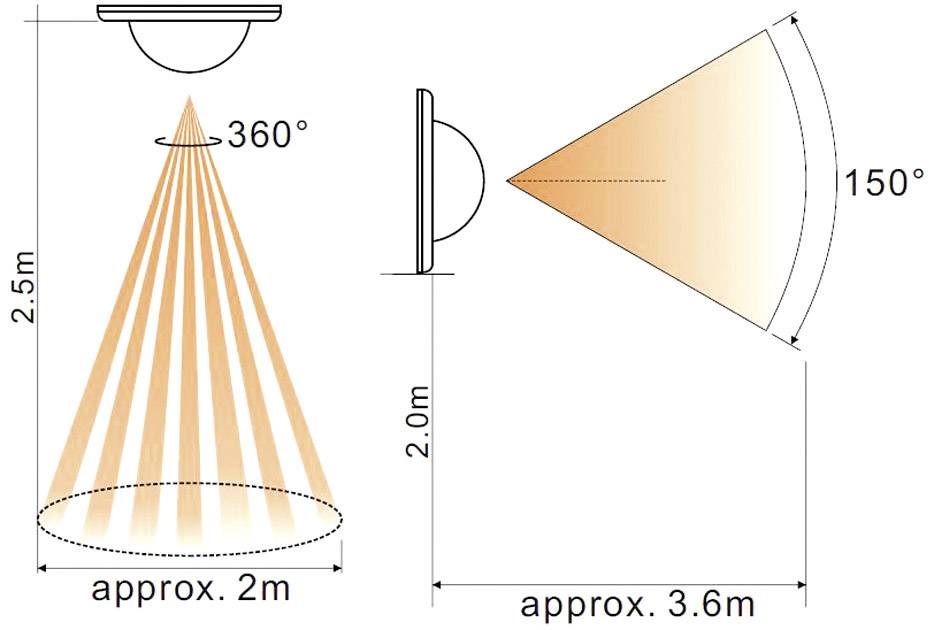

- PIR detection angle (horizontal)
150°
- PIR detection angle (vertical)
360°
3.6 m
- Time range (min.)
3 s
- Time range (max.)
12 min
- Min. temperature
-10 °C
- Max. temperature
+40 °C
- Width
63 mm
- Height
46 mm
- Dim
(W x H) 63 mm x 46 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1572220 TRU COMPONENTS IR motion detector KMP001-1 230 V AC 220 - 240 V AC 1 maker (W x H) 63 mm x 46 mm 1 pc(s)
Description
This text is machine translated.
The IR motion detector detects heat radiation from moving bodies (e.g. people and animals) and emits an electrical output signal. The sensor and the control unit are connected to each other via a cable, thus, the control unit can be mounted invisibly behind a panel.
The IR motion detector detects heat radiation from moving bodies (e.g. people and animals) and emits an electrical output signal. The sensor and the control unit are connected to each other via a cable, thus, the control unit can be mounted invisibly behind a panel.
