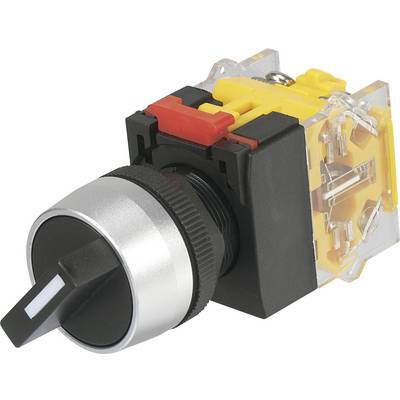

TRU COMPONENTS LAS0-A3Y-20X/31 Rotary switch 250 V AC 5 A Switch postions 3 2 x 45 ° IP40 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Operation type
Toggle
Contact type
2 makers
Switch postions
3
Switching voltage
250 V AC
Datasheet (PDF)
3159 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.65
5
7% = € 0.31
€ 4.34
10
9% = € 0.42
€ 4.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.65 / piece)
€ 8.39
-45 %
€
Technical specifications
- Product type
Rotary switch
- Casing/button colour
Black
- Functions
latch
- Operation type
Toggle
- Switching angle
2 x 45 °
- Lighting type
None
- Contact type
2 makers
- Switch position
2 x Off/On
- Switch postions
3
- Material
Plastic
- Connection
Screws
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Durability
500000 cycles
- Front panel thickness
0.5 - 5 mm
- Recess diameter
22 mm
IP40
- Content
1 pc(s)
- Type
LAS0-A3Y-20X/31
- RoHS-compliant
Yes
- Type
2 x 45 °
- Recess diameter (details)
22 mm
- Switching voltage
250 V AC
- Switching current
5 A
- Type
LAS0-A3Y-20X/31
- Connection
Screw connector
- Temperature range
-25 - +55 °C
Documents & Downloads
Datasheet
Datasheet 704675 TRU COMPONENTS LAS0-A3Y-20X/31 Rotary switch 250 V AC 5 A Switch postions 3 2 x 45 ° IP40 1 pc(s)
User & Safety Instructions
User & Safety Instructions 704675 TRU COMPONENTS LAS0-A3Y-20X/31 Rotary switch 250 V AC 5 A Switch postions 3 2 x 45 ° IP40 1 pc(s)
