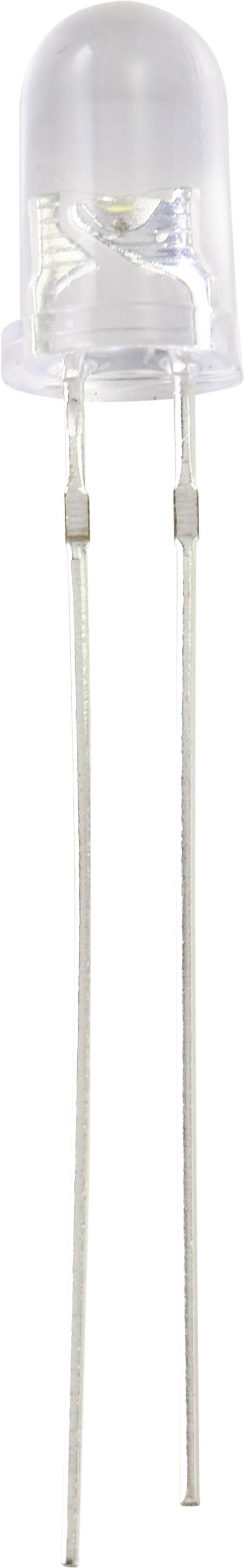

TRU COMPONENTS LED wired 5 mm White Circular 5 mm 18000 mcd 20 ° 20 mA
EAN:
Part number:
Item no:
Product type
LED wired
Forward current I(F)
20 mA
Casing
5 mm
Light intensity I(V)
18000 mcd

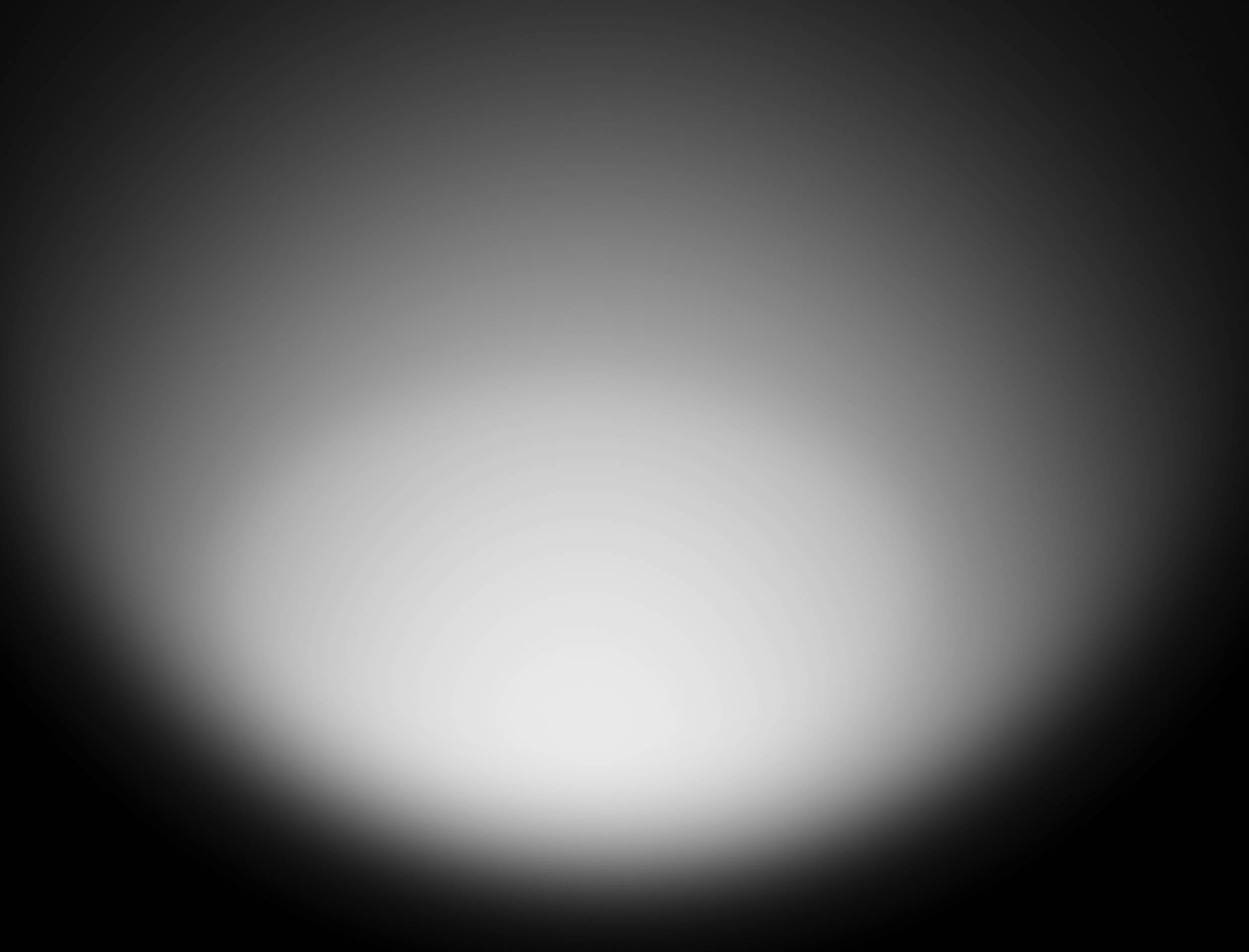

Radiation angle
20 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.38
21
11% = € 0.04
€ 0.34
35
13% = € 0.05
€ 0.33
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.38 / piece)
€ 2.66
plus VAT.
14-day return policy included
Highlights & Details
5 mm LED Wired White 18000 mcd
- High luminous LEDs
- UV resistant epoxy
- Color diffused type
Technical specifications
- Product type
LED wired
- Factory colour
White
- Forward current I(F)
20 mA
- Operating voltage
2.9 V DC
- Casing
5 mm
- Case type
5 mm
- Light intensity I(V)
18000 mcd
- Colour temperature
6500 K
- Radiation angle
20°
- Type (LEDs)
Diffused
- Lens type
Circular
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2377621 TRU COMPONENTS LED wired 5 mm White Circular 5 mm 18000 mcd 20 ° 20 mA
User & Safety Instructions
User & Safety Instructions 2377621 TRU COMPONENTS LED wired 5 mm White Circular 5 mm 18000 mcd 20 ° 20 mA
Description
Features
- Application for toys, audio, indications and chirstmas lght
Scope of delivery
- LED wired
Hints
Full details free to download from our comprehensive product documents library. All standard LED chips require a current-limiting resistor/constant current power source.
