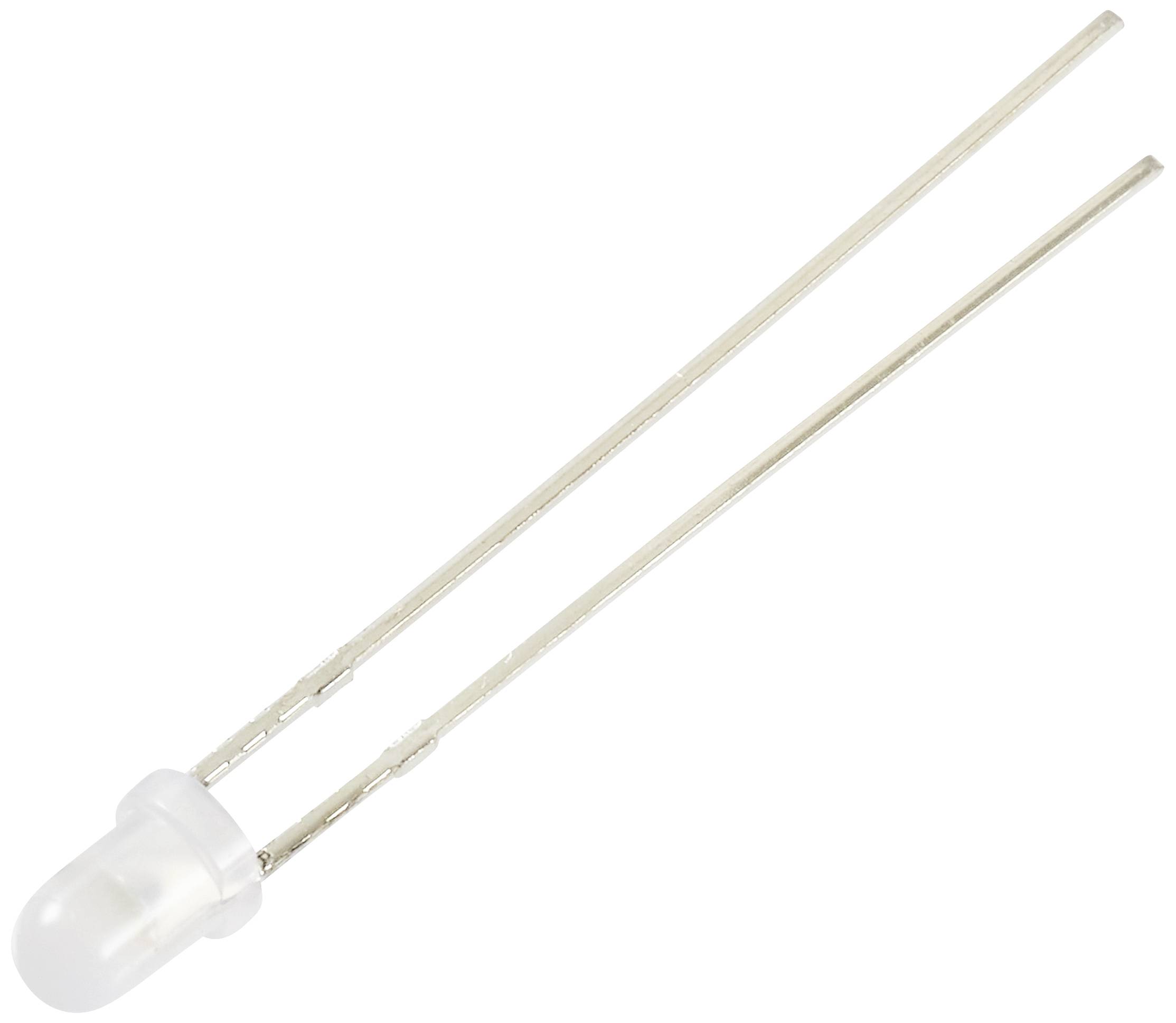

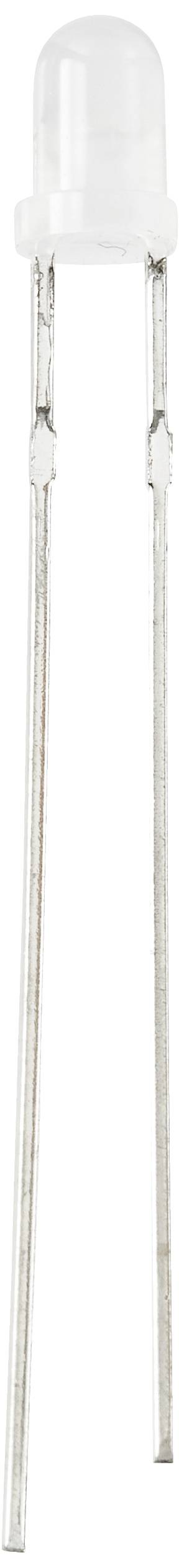

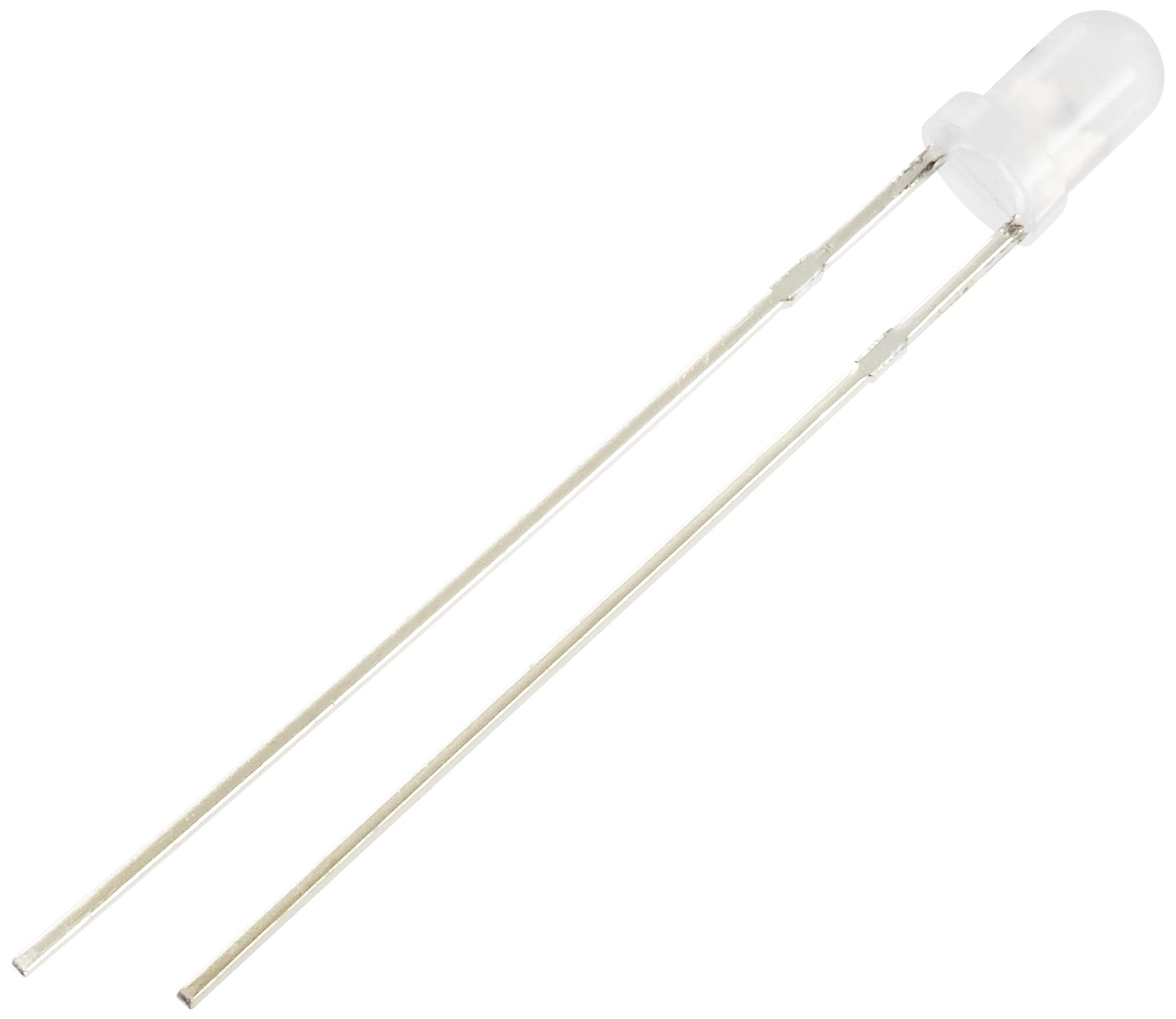

TRU COMPONENTS LED wired White Circular 3 mm 1560 mcd 30 ° 12 mA 5 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
5 V
Forward current I(F)
12 mA
Casing
3 mm
Type
THT
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.74
9
8% = € 0.06
€ 0.68
15
11% = € 0.08
€ 0.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.74 / piece)
€ 2.22
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS 3 mm 5 V Resistor LED, White
- Status indicators
- Other lighting
Technical specifications
- Product type
LED wired
- Factory colour
White
- Forward voltage U(F)
5 V
- Forward current I(F)
12 mA
- Operating voltage
5 V
- Operating current
12 mA
- Casing
3 mm
- Type
THT
- Light intensity I(V)
1560 mcd
- Colour coordinates
X:0.27, Y:0.28
- Radiation angle
30°
- Type (LEDs)
Diffused
- LED features
Current limiter
- Lens type
Circular
- Dim
(Ø) 3 mm
- Min. temperature
-30 °C
- Max. temperature
85 °C
- (Ø)
3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2637954 TRU COMPONENTS LED wired White Circular 3 mm 1560 mcd 30 ° 12 mA 5 V
User & Safety Instructions
User & Safety Instructions 2637954 TRU COMPONENTS LED wired White Circular 3 mm 1560 mcd 30 ° 12 mA 5 V
Description
Bright LED with standard directivity. With integrated resistance for current limitation. TTL-compatible - does not require any external current limitation for 5 V supply.
This text is machine translated.
This text is machine translated.
Features
- High brightness LEDs
- 3 mm round standard directivity
- UV resistant epoxy
- Integrated current limiting resistor
- TTL compatible (requires no external current limiter with 5 Volt supply)
- Cost effective/white diffused
Scope of delivery
- Main unit
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
