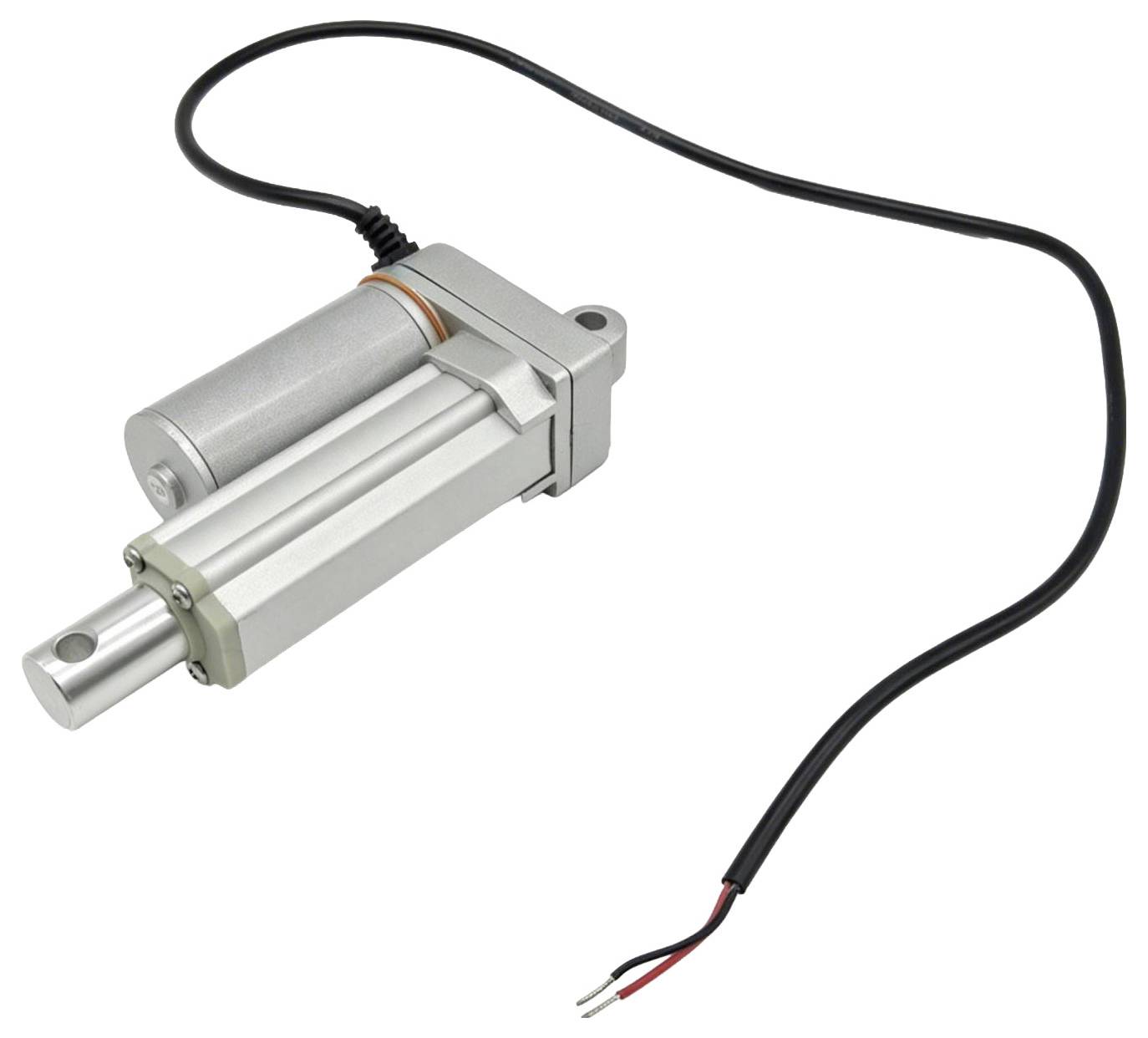

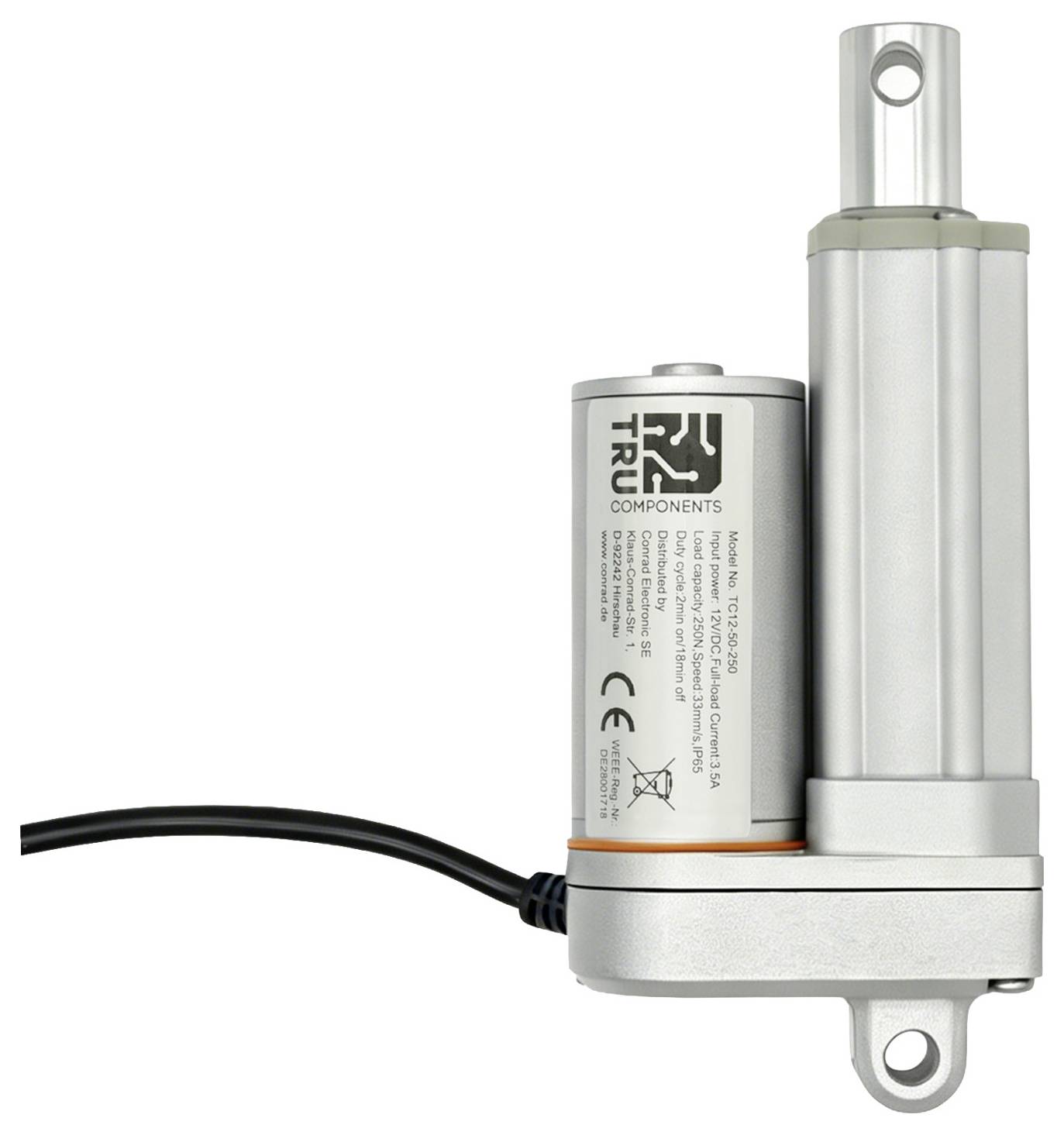

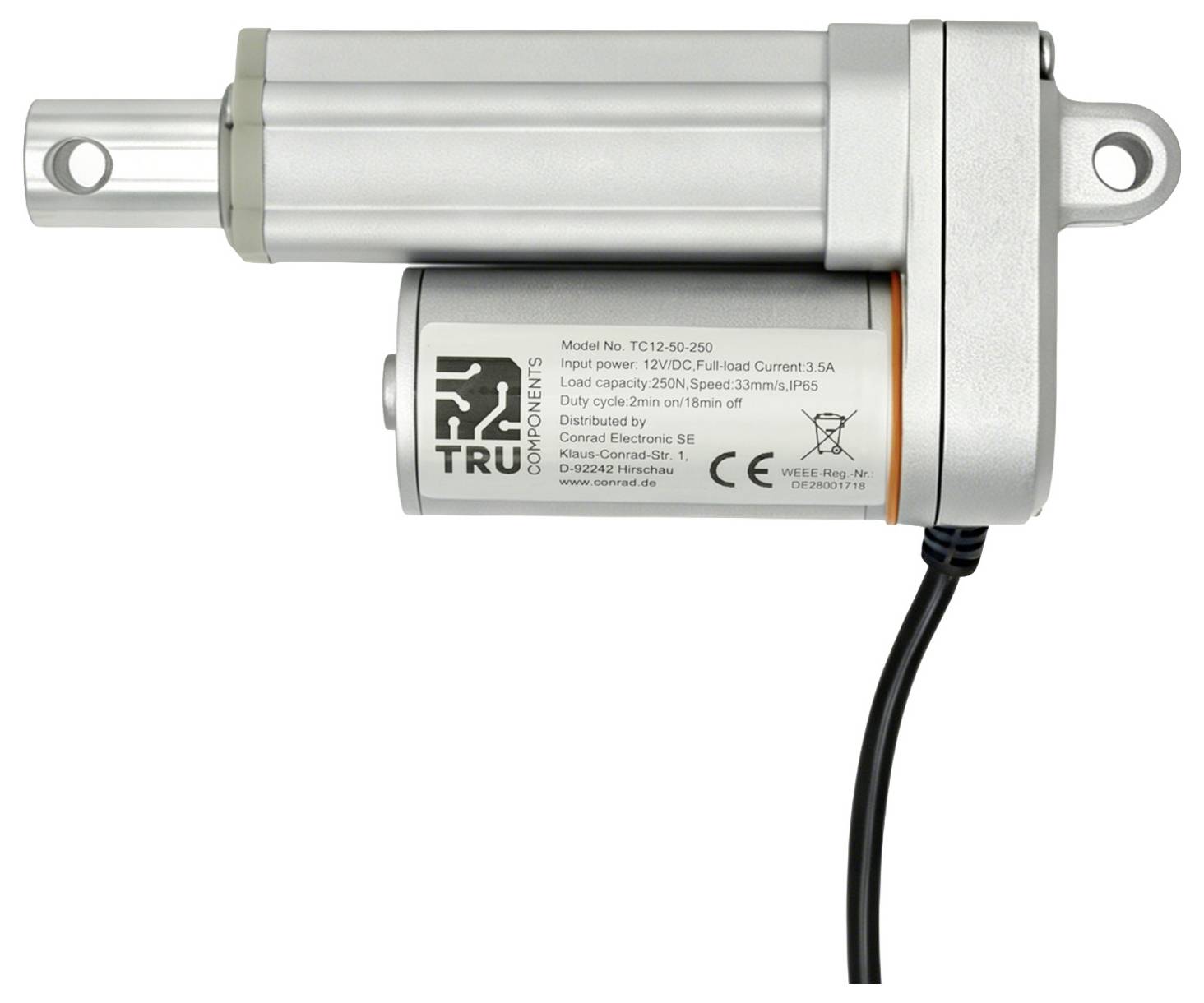

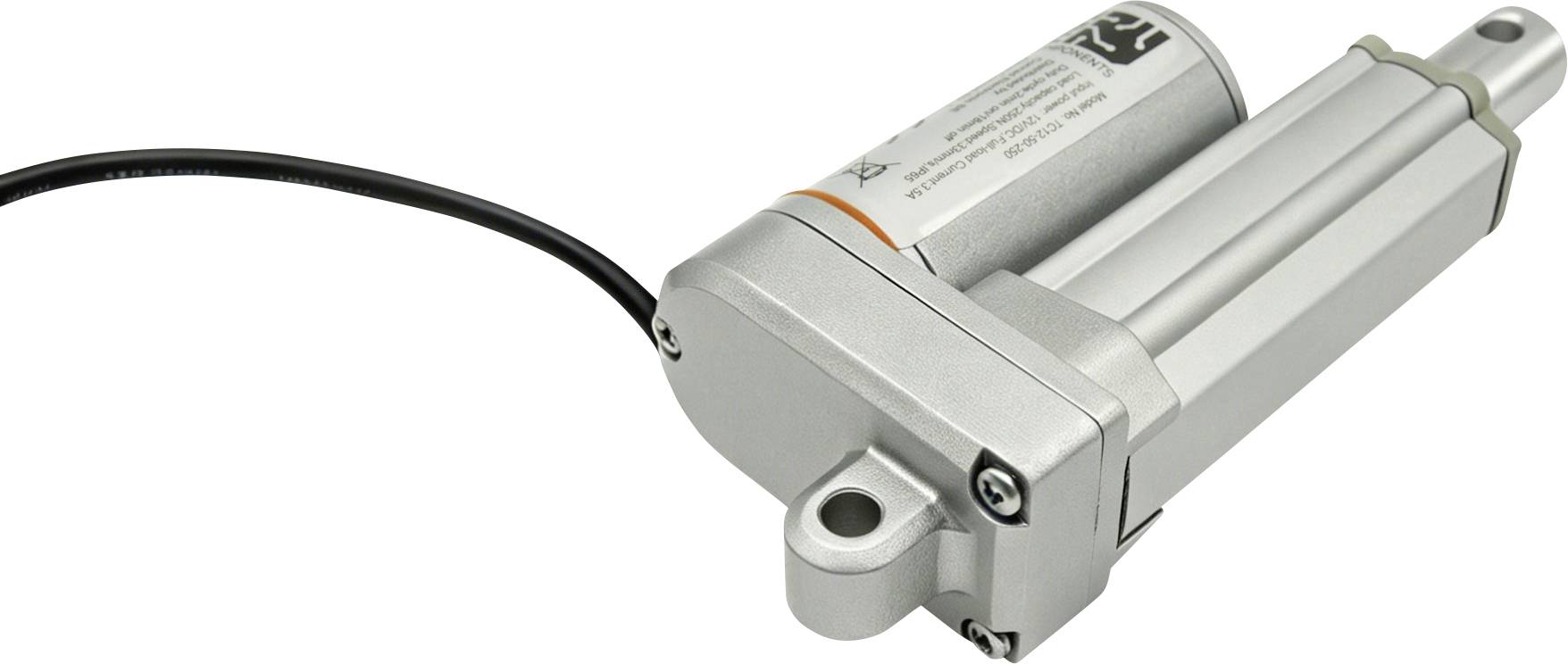

TRU COMPONENTS Linear actuator TC12-50-250 TC-14973260 Stroke length 50 mm Thrust 250 N 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Nominal voltage
12 V DC
Speed (max.)
33 mm/s
Stroke length
50 mm
Thrust
250 N
Product type
Linear actuator
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
RU COMPONENTS Electric Cylinder TC12-50-250
- Input voltage: 12 V DC
- Stroke: 50 mm
- Rated load current: 3.5 A
- Load capacity: 250 N

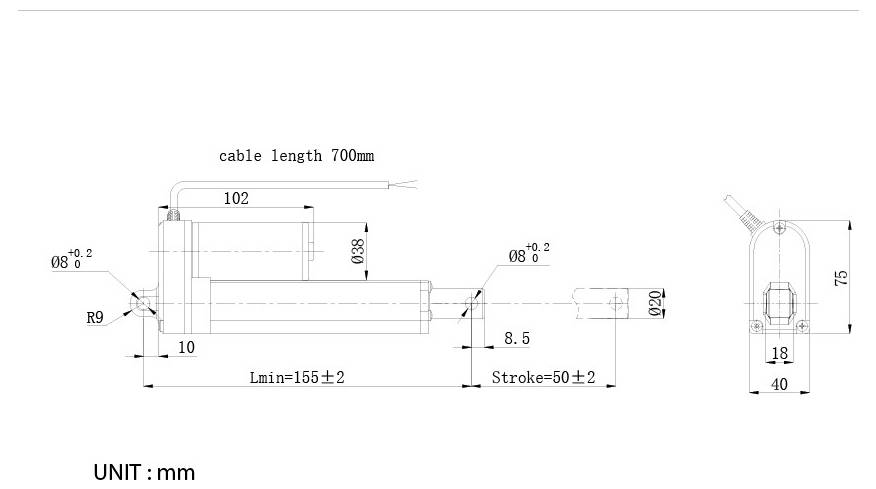

- Minimum installation size: 155 ± 2 mm
- Cable Length: 700 mm
- Protection class: IP65
Our service for you
Technical specifications
- Manufacturer part #
TC-14973260
- Type
TC12-50-250
- Nominal voltage
12 V DC
- Speed (max.)
33 mm/s
- Stroke length
50 mm
- Thrust
250 N
- Plastic free packaging
Plastic-free packaging
- Product type
Linear actuator
Documents & Downloads
Datasheet
Datasheet 3743315 TRU COMPONENTS Linear actuator TC12-50-250 TC-14973260 Stroke length 50 mm Thrust 250 N 12 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3743315 TRU COMPONENTS Linear actuator TC12-50-250 TC-14973260 Stroke length 50 mm Thrust 250 N 12 V DC 1 pc(s)
