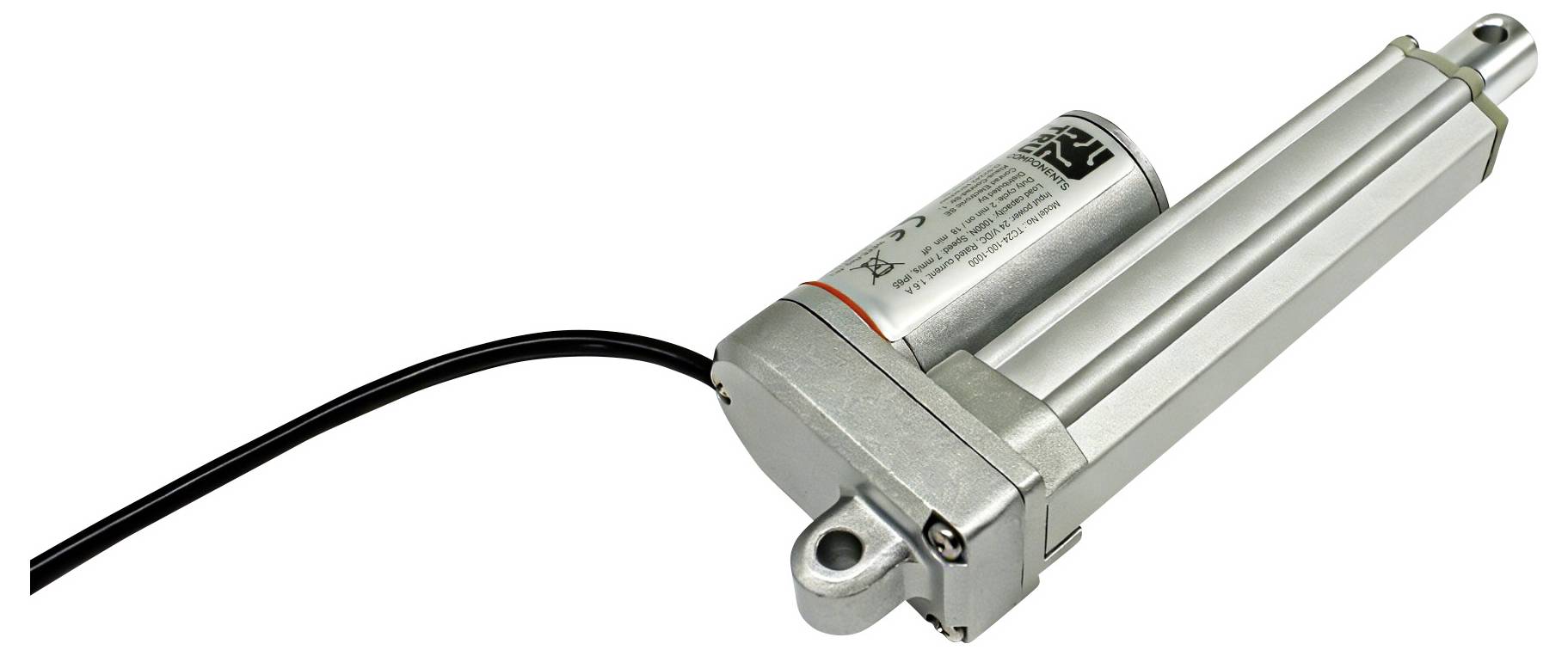

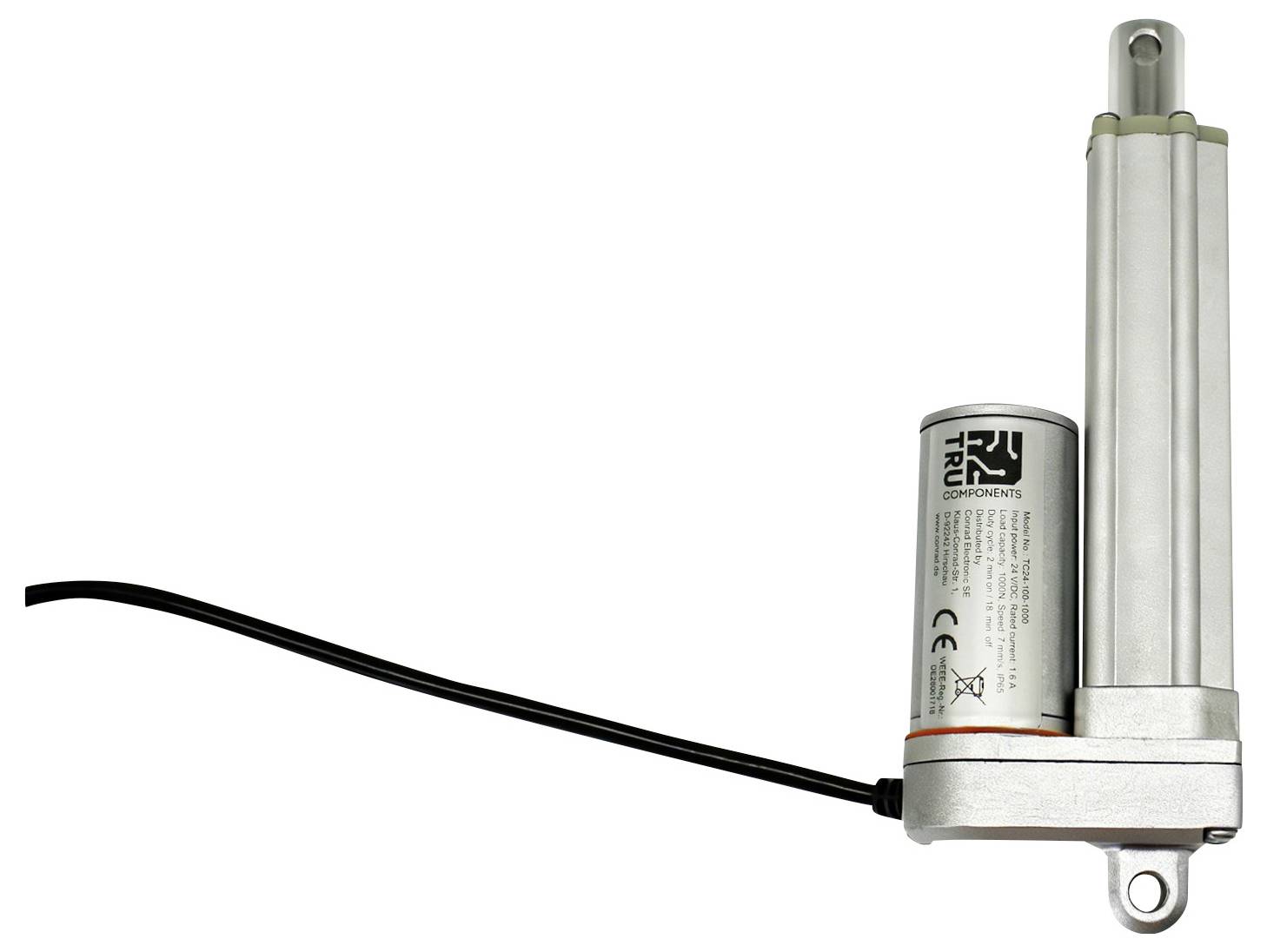

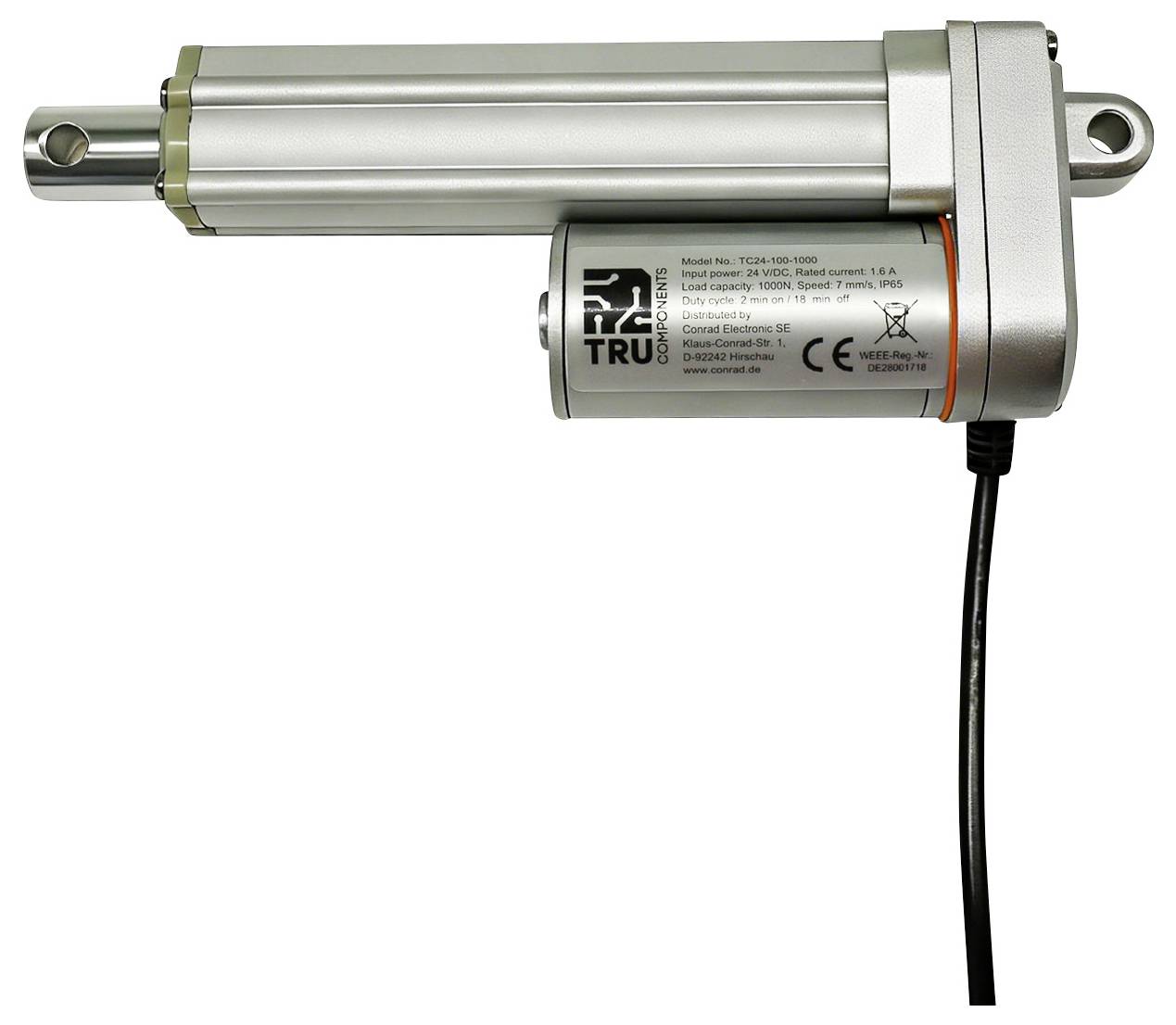

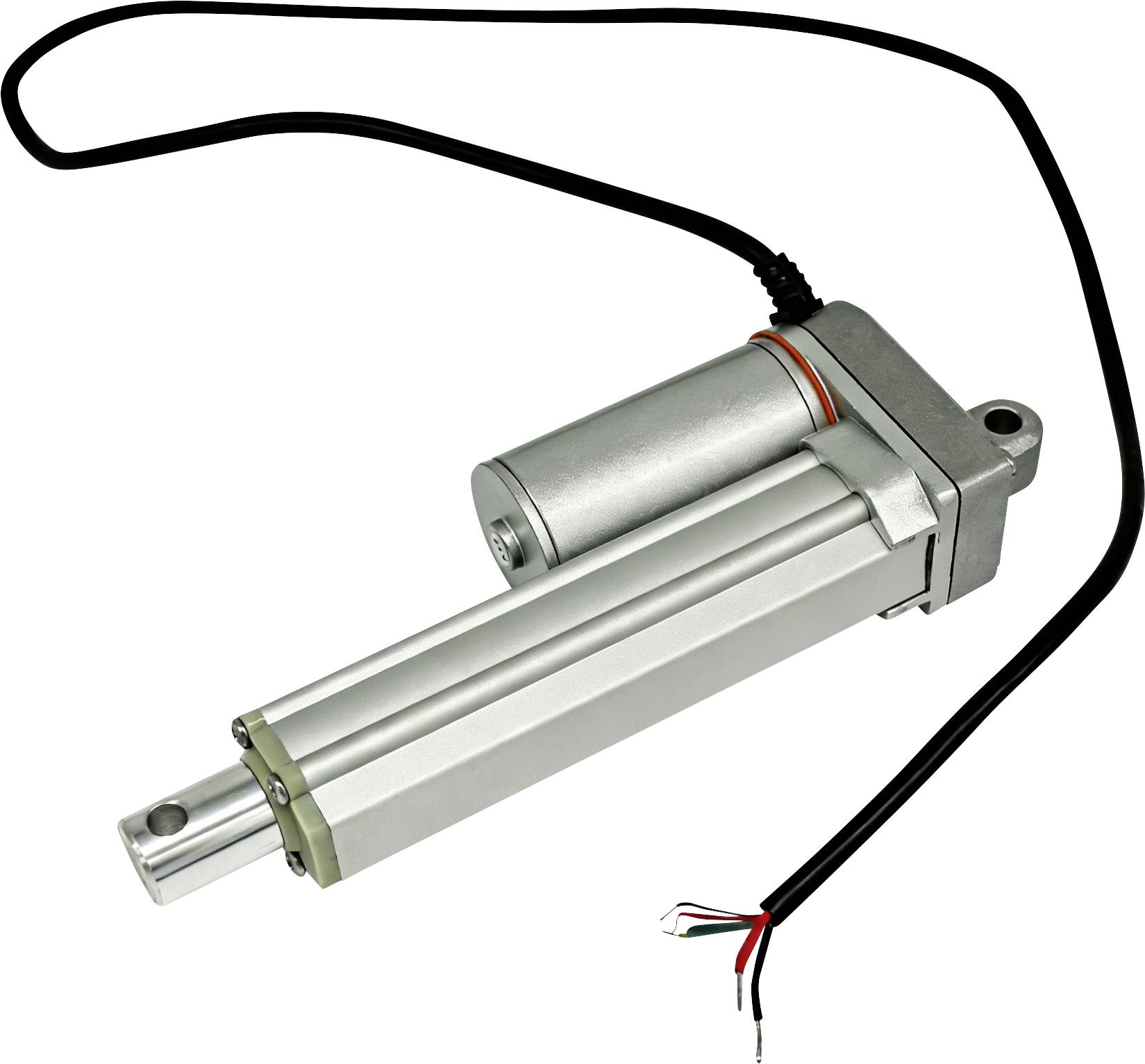

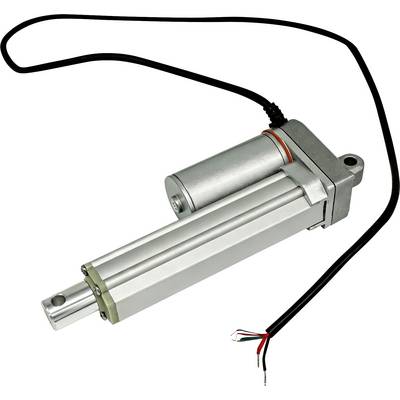

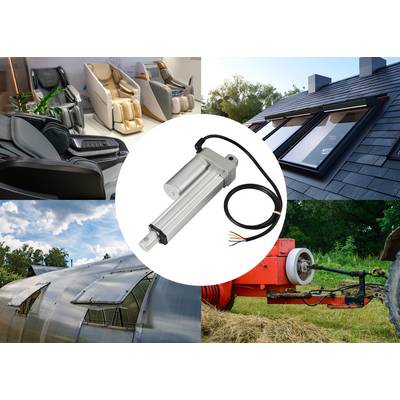

TRU COMPONENTS Linear actuator TC24-100-1000P TC-13492808 Stroke length 100 mm Thrust 1000 N 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Nominal voltage
24 V DC
Speed (max.)
7 mm/s
Stroke length
100 mm
Thrust
1000 N
Product type
Linear actuator
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
Linear Actuator Stroke length 100 mm Thrust 1000 N 24 V DC Hall effect sensor
- Input voltage: 24 V DC
- Stroke: 100 mm
- Rated load current: 1.6 A
- Load capacity: 1000 N

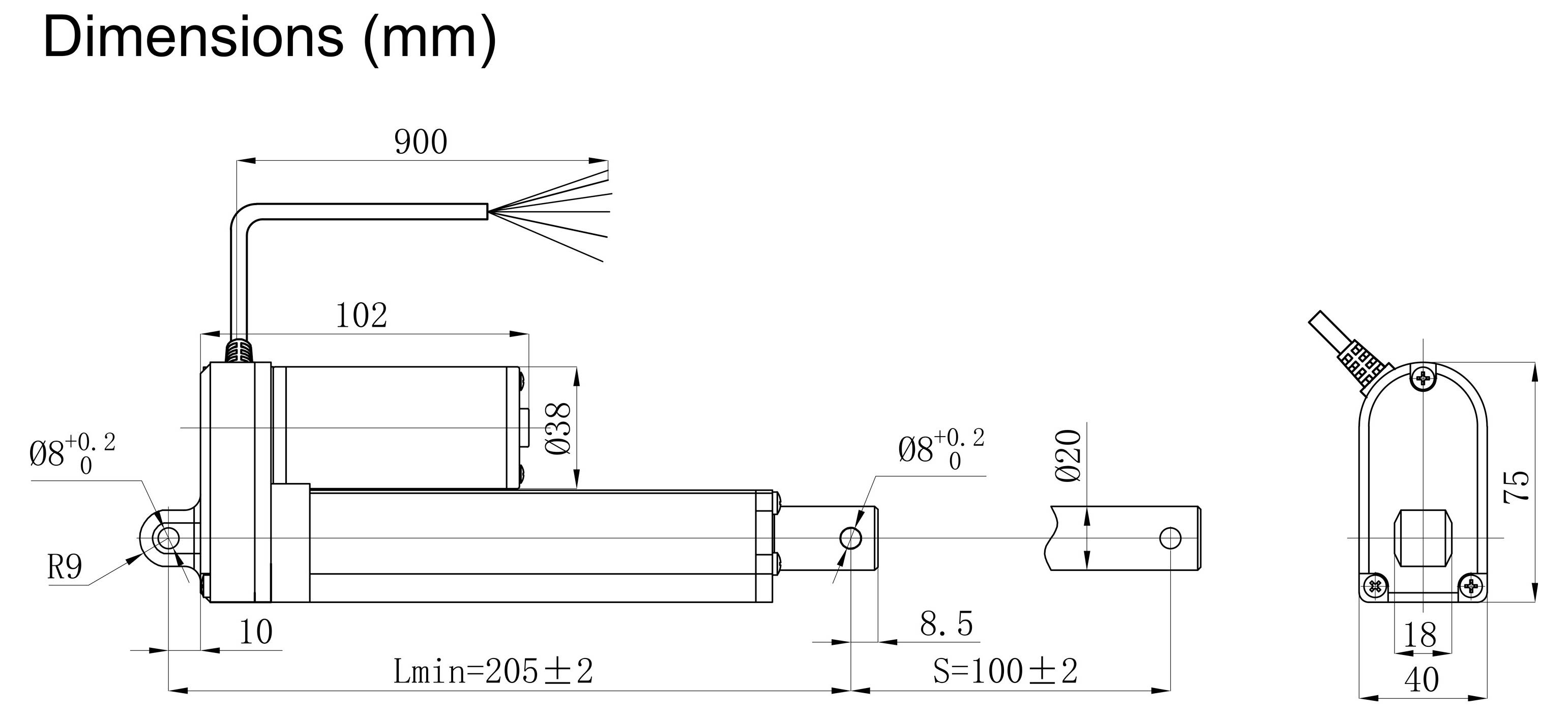

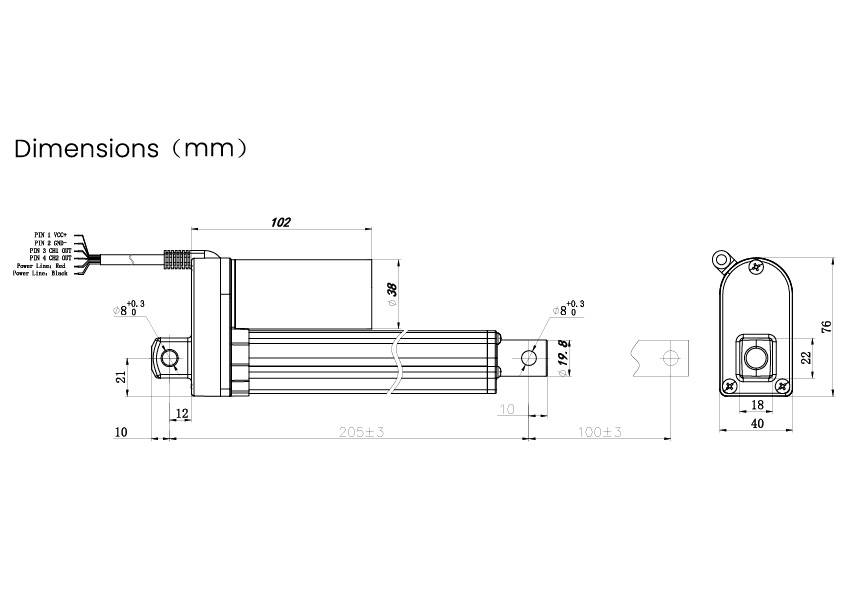

- Minimum installation size: 205 mm
- Cable Length: 900 mm
- Protection class: IP65
- Built-in Hall effect sensor
Our service for you
Technical specifications
- Built-in Hall effect sensor
- Type
Hall-effect sensor
- Manufacturer part #
TC-13492808
- Type
TC24-100-1000P
- Nominal voltage
24 V DC
- Speed (max.)
7 mm/s
- Stroke length
100 mm
- Thrust
1000 N
- Plastic free packaging
Plastic-free packaging
- Product type
Linear actuator
Documents & Downloads
Datasheet
Datasheet 3373202 TRU COMPONENTS Linear actuator TC24-100-1000P TC-13492808 Stroke length 100 mm Thrust 1000 N 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3373202 TRU COMPONENTS Linear actuator TC24-100-1000P TC-13492808 Stroke length 100 mm Thrust 1000 N 24 V DC 1 pc(s)
Conformity certificate
Conformity certificate 3373202 TRU COMPONENTS Linear actuator TC24-100-1000P TC-13492808 Stroke length 100 mm Thrust 1000 N 24 V DC 1 pc(s)
