1/6
TRU COMPONENTS Linear actuator TC24-100-2500 TC-13492812 Stroke length 100 mm Thrust 2500 N 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Nominal voltage
24 V DC
Speed (max.)
6 mm/s
Stroke length
100 mm
Thrust
2500 N
Product type
Linear actuator
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
14-day return policy included
Highlights & Details
Linear Actuator Stroke length 100 mm Thrust 2500 N 24 V DC
- Input voltage: 24 V DC
- Stroke: 100 mm
- Rated load current: 2.2 A
- Load capacity: 2500 N

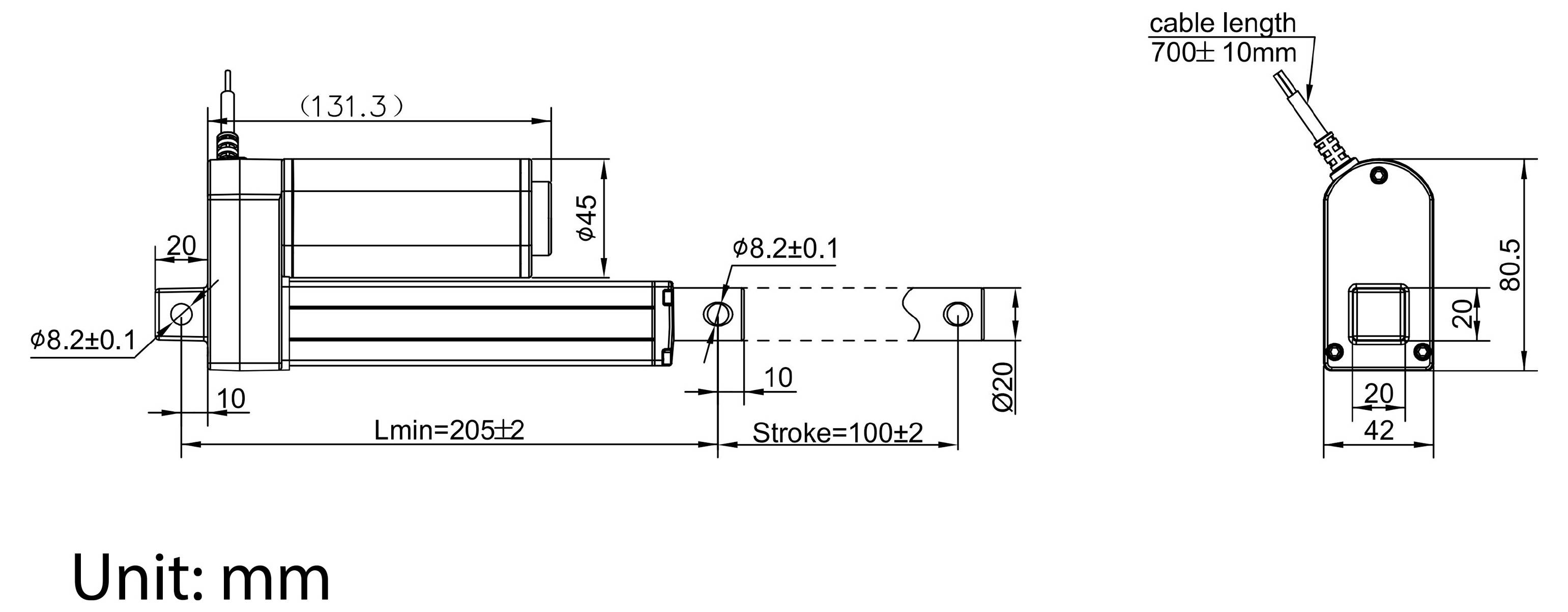

- Minimum installation size: 205 mm
- Cable Length: 700 mm
- Protection class: IP65
Technical specifications
- Manufacturer part #
TC-13492812
- Type
TC24-100-2500
- Nominal voltage
24 V DC
- Speed (max.)
6 mm/s
- Stroke length
100 mm
- Thrust
2500 N
- Thrust power
2500 N
- Plastic free packaging
Plastic-free packaging
- Product type
Linear actuator
Documents & Downloads
Datasheet
Datasheet 3373203 TRU COMPONENTS Linear actuator TC24-100-2500 TC-13492812 Stroke length 100 mm Thrust 2500 N 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3373203 TRU COMPONENTS Linear actuator TC24-100-2500 TC-13492812 Stroke length 100 mm Thrust 2500 N 24 V DC 1 pc(s)
Conformity certificate
Conformity certificate 3373203 TRU COMPONENTS Linear actuator TC24-100-2500 TC-13492812 Stroke length 100 mm Thrust 2500 N 24 V DC 1 pc(s)
