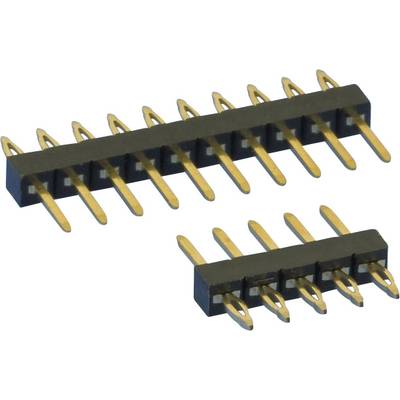

TRU COMPONENTS Pin strip (standard) No. of rows: 1 Pins per row: 4 TC-1886S-12-004-00 1 pc(s)
EAN:
Part number:
Item no:
93 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Minimum order quantity: 15
Total (€ 0.22 / piece)
€
Highlights & Details
- Content 1 pc(s)
- No. of rows 1
- Pins per row 4
Technical specifications
- Connector type
Pin strip, straight
- No. of rows
1
- Pins per row
4
- Total number of pins
4
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
500 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
Thermoplastic material
- Pin length (receptacle)
5.50 mm
- Pin length (PCB)
4 mm
- Separable
No
- Dim
(L x W x H) 12.00 x 10.16 x 2.50 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
TC-1886S-12-004-00
- Content
1 pc(s)
- Height
2.50 mm
- Length
12.00 mm
- Width
10.16 mm
- Industrial packaging
No
- Type
TC-1886S-12-004-00
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Product type
Pin strip (standard)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1560962 TRU COMPONENTS Pin strip (standard) No. of rows: 1 Pins per row: 4 TC-1886S-12-004-00 1 pc(s)
