Buy TRU COMPONENTS Pneumatic valve TC-HSN-02 G1/4 TC-14161004 0 up to 10 bar 1 pc(s)

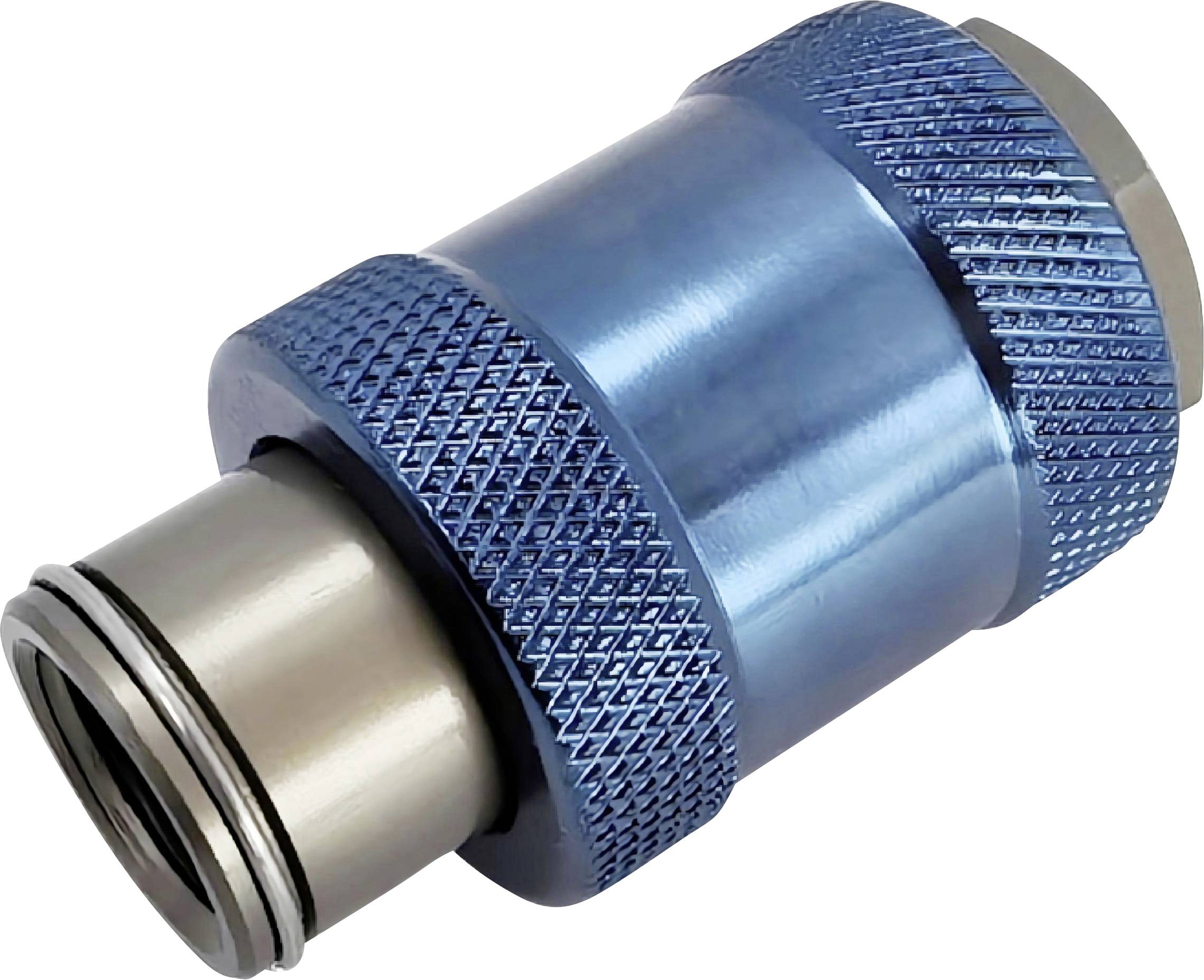

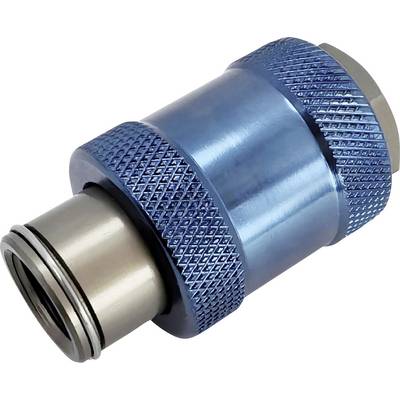

'A blue and silver metal air hose quick connect fitting, featuring a textured grip for easy handling.'

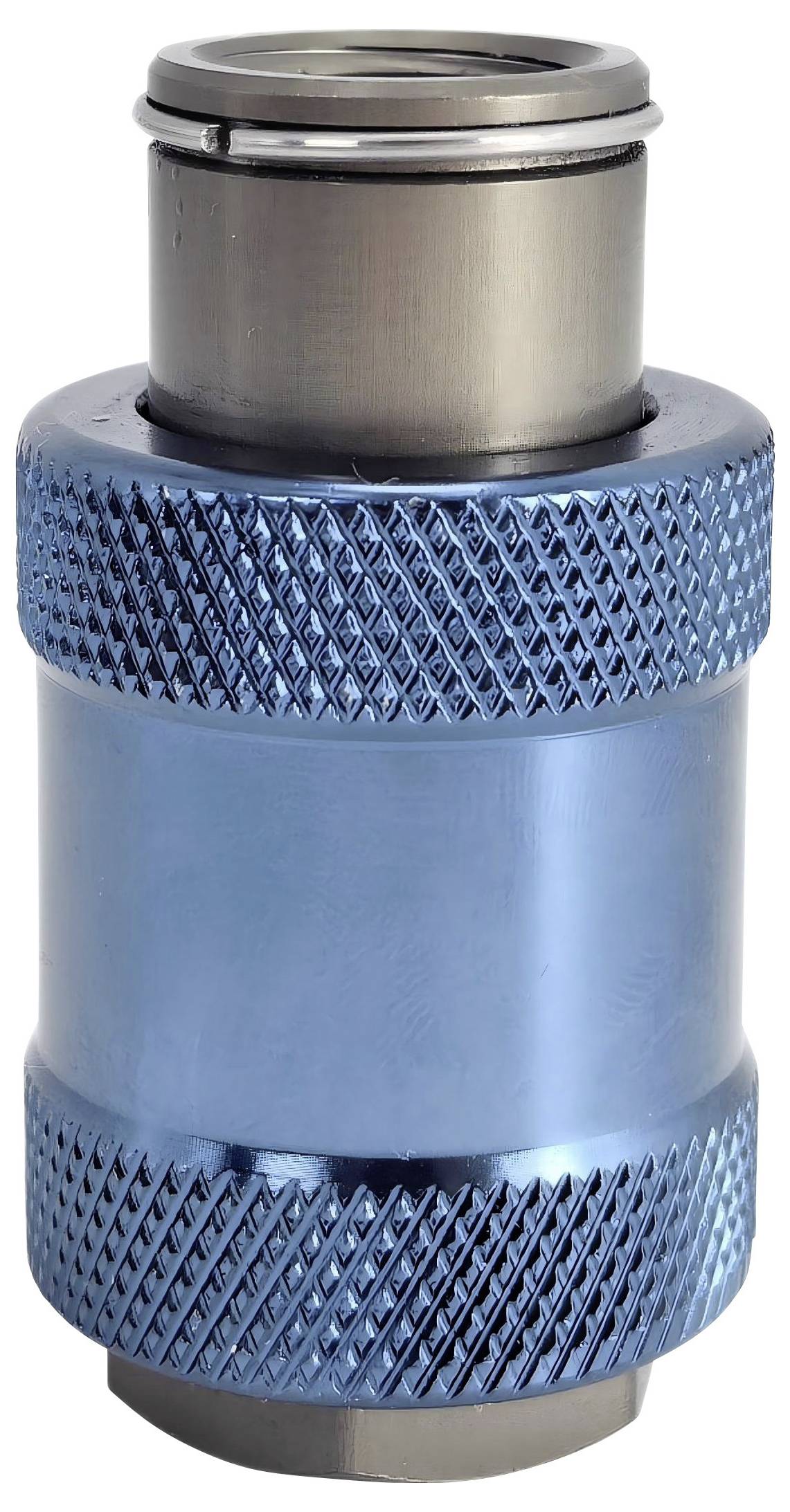

A blue metallic quick-connect fitting with textured grip and a cylindrical shape, used to easily connect and disconnect fluid lines.

1/2

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Hand slide valve G1/4 female/female thread

Port size: G1/4
Female to female thread
Three positions, two ways
Operating medium: Air (filtered through 40μm screen or above)

Technical specifications

Port connection: G1/4
Effective cross-sectional area: 40.0 mm²
Number of positions: Three positions, two ways

Product type: Pneumatic valve

Min. display range: 0 bar

Display range (max.): 10 bar

Type: G 1/4, Female to Female thread

Operating temperature: -20 up to 70 °C

Min. operating temperature: -20 °C

Max. operating temperature: 70 °C

Manufacturer part #: TC-14161004

Material (details): Aluminum alloy

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air

Plastic free packaging: Plastic-free packaging
