Buy TRU COMPONENTS Pneumatic valve TC-HSV-02 G1/4 TC-14160988 0 up to 10 bar 1 pc(s)

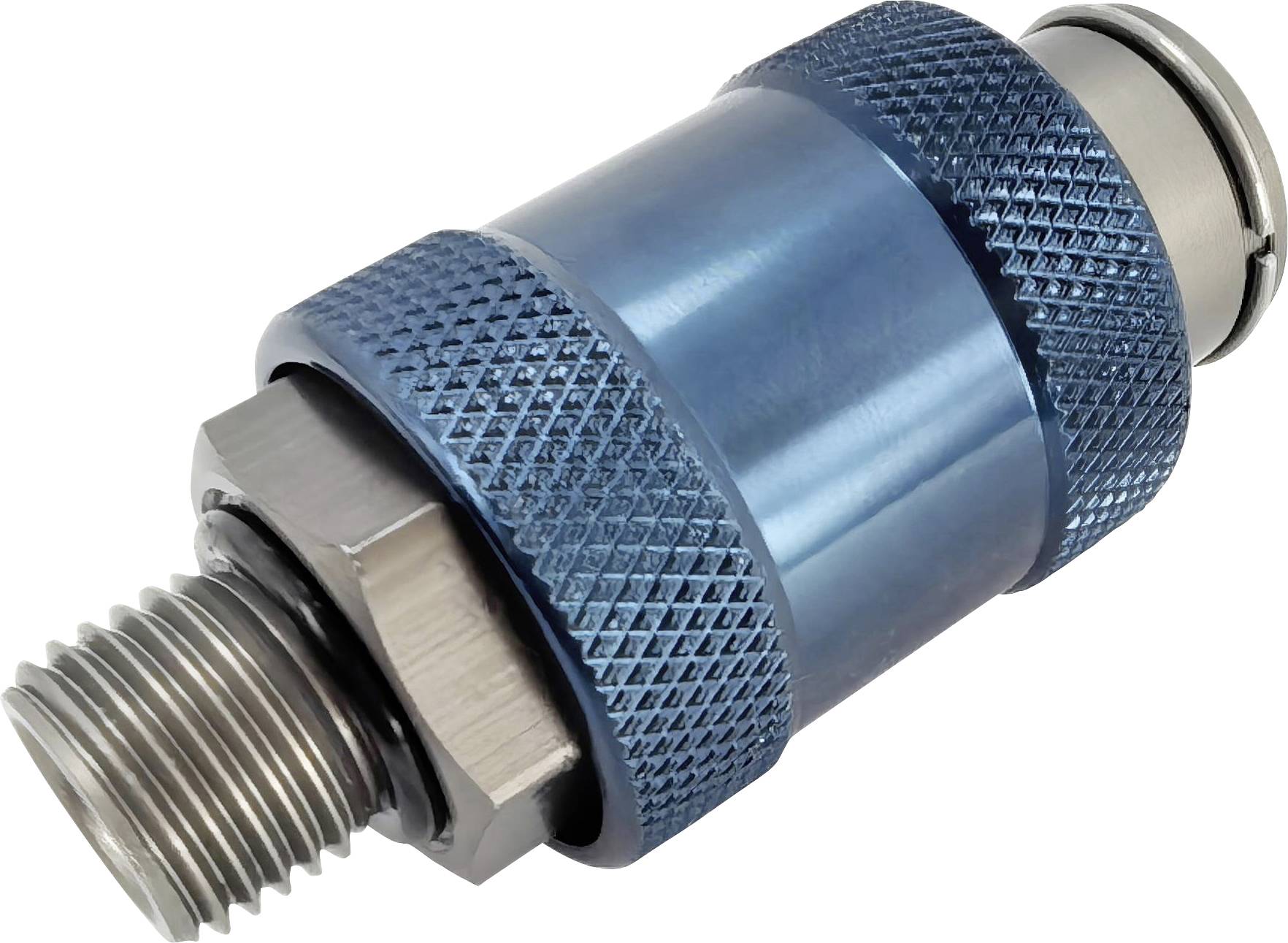

A close-up of a metal quick-release coupling, featuring a blue textured grip and threaded connector, used for joining pneumatic hoses.

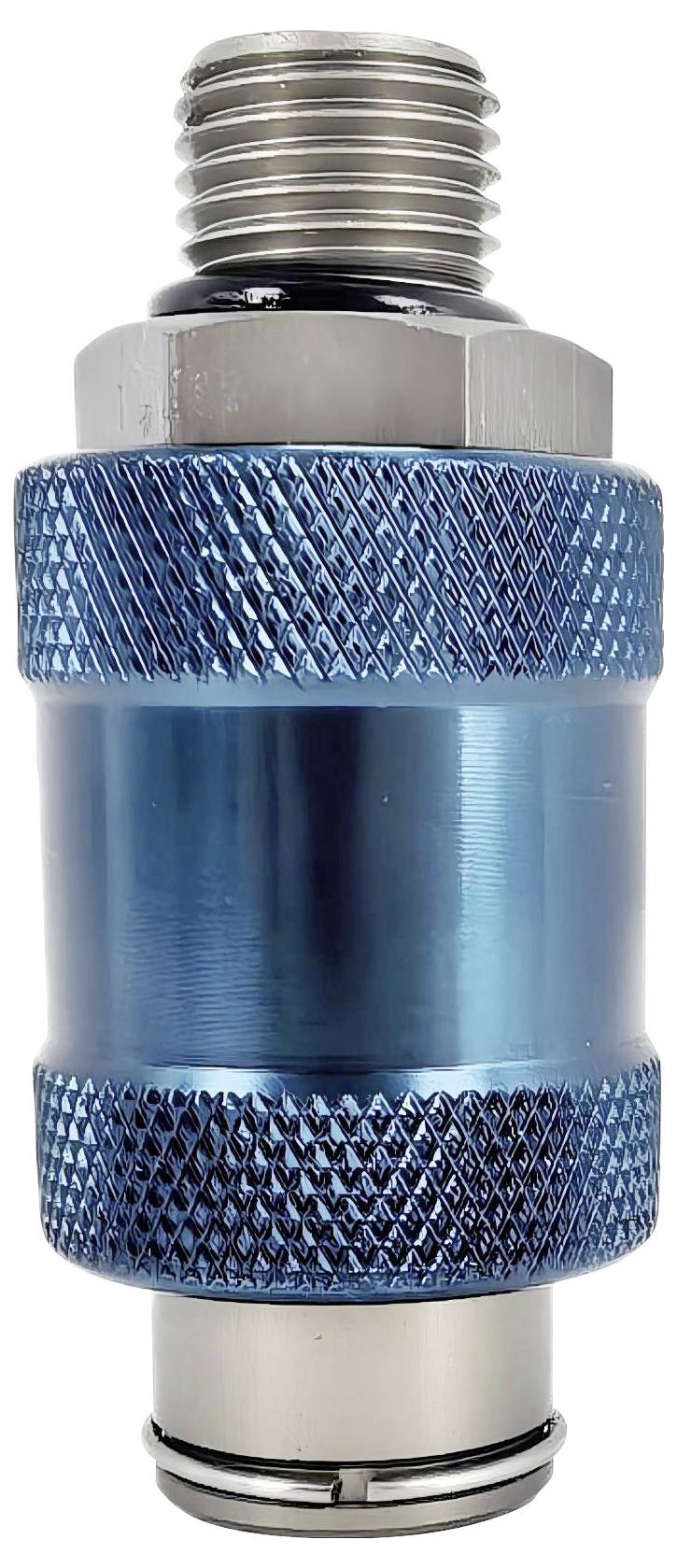

A blue metallic industrial coupling with textured grip, silver-threaded ends, used for connecting pipes or hoses in machinery systems.

1/2

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 7.13 / piece)

€ 7.13

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Hand slide valve G1/4 male/female thread

Port size: G1/4
Male to female thread
Three positions, two ways
Operating medium: Air (filtered through 40μm screen or above)

Technical specifications

Port connection: G1/4
Effective cross-sectional area: 40.0 mm²
Number of positions: Three positions, two ways

Product type: Pneumatic valve

Min. display range: 0 bar

Display range (max.): 10 bar

Type: G 1/4, Male to Female thread

Operating temperature: -20 up to 70 °C

Min. operating temperature: -20 °C

Max. operating temperature: 70 °C

Manufacturer part #: TC-14160988

Material (details): Aluminum alloy

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air

Plastic free packaging: Plastic-free packaging
