Buy TRU COMPONENTS Pure Set Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz PSU, Housing

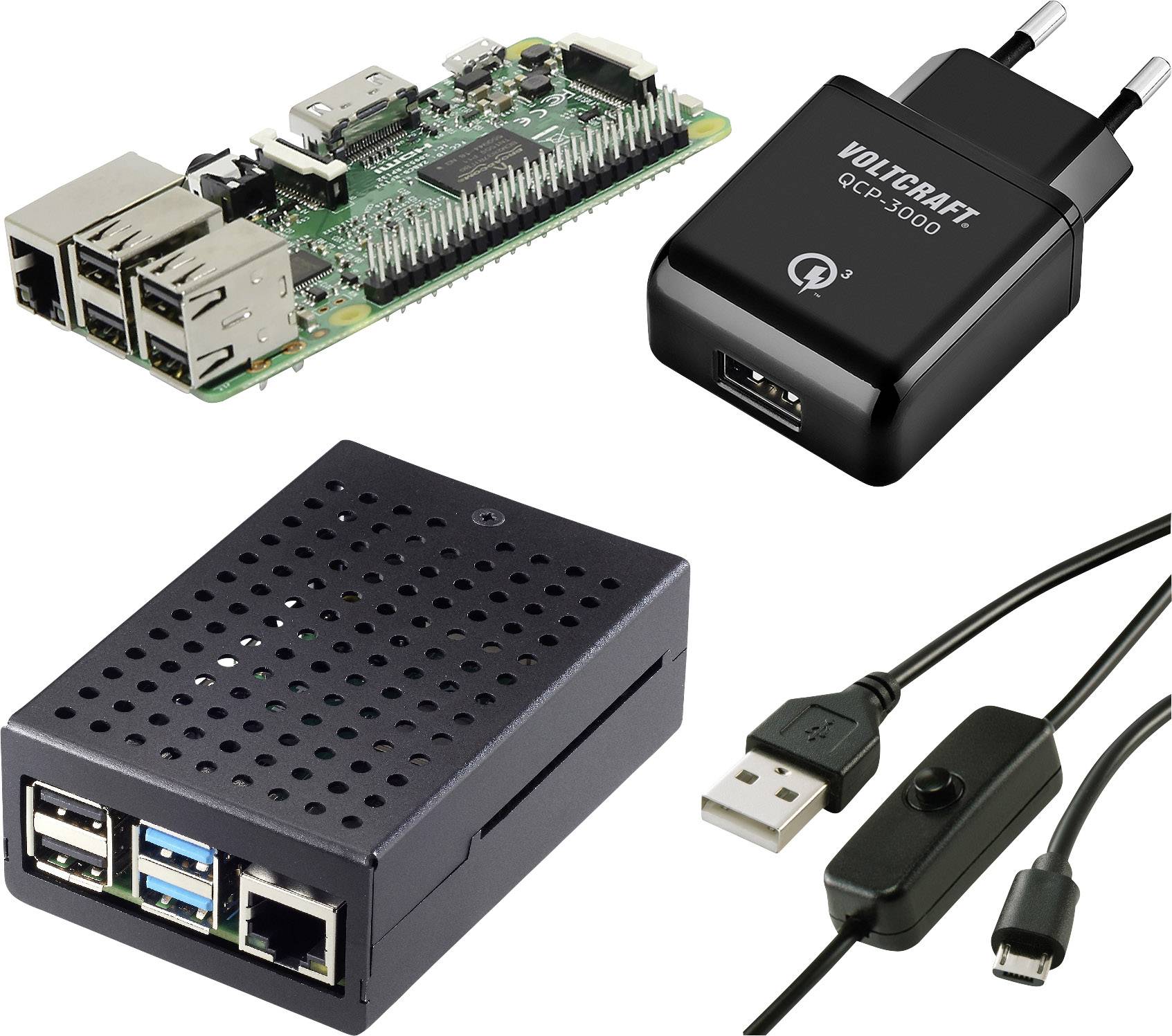

'Raspberry Pi board with Ethernet ports, black USB charger, ventilated black case and USB cable with switch.'

A black, rectangular metal enclosure with holes on the top surface, possibly for ventilating electronic devices.

USB cable with two ends: on the left a standard USB connector, on the right a micro-USB connector. Used for charging and data transfer.

A black USB cable with a switch in the middle; one end has a USB plug, the other a USB-C plug.

A hand is holding the plug of a cable connected to a microcomputer. The microcomputer is resting on a white surface.

A rectangular, black, perforated enclosure, presumably for ventilation, for electronic devices or components.

Black, ventilated housing of a mini-computer with multiple USB ports and an Ethernet port on the front panel.

Small black computer with ventilation holes, network connection and four USB ports on the front. Device used for data processing.<br><br>(Note: This translation is already in British English, so no significant changes were required.)

Two black metal hard drive brackets with ventilation holes, one with an integrated fan, the other without.

A black enclosure with multiple USB ports and a bundle of colourful cables protruding from the side.

A black USB charger plugged into a wall outlet charges a smartphone on a white table in the foreground.

A green circuit board of a Raspberry Pi model with multiple connectors and chips for DIY electronics projects and computer applications.

A Raspberry Pi board with multiple USB ports, an HDMI output and Ethernet connection.

A green Raspberry Pi board with various connections and electronic components, including USB and HDMI ports.

Electronic circuit board with various circuits, chips, and connectors, commonly used in small computer projects and DIY electronics.

A black USB charger is plugged into a wall socket and is charging a smartphone lying on a white surface.

1/20

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TRU COMPONENTSPure SetRaspberry Pi® 3 B (1 GB)

Raspberry Pi® set with all the necessary components for starting the Raspberry Pi® 3 B
Incl. Raspberry Pi® 3 B, aluminum housing with integrated fan & power supply with on/off switch

Technical specifications

Product type: SBC starter kit

Type: Raspberry Pi® 3 B

SoC: Broadcom BCM2837

Processor: ARM Cortex-A53

Processor cores (No.): 4 x

GPU: Broadcom Video Core IV

: 1 GB

Clock speed: 1.2 GHz

Memory type: DDR2

Operating system (Version): w/o OS

Memory capacity: 1 GB

Internal ports: CSI (camera)
DSI (display)
GPIO (40-pin)

External ports: 4x USB 2.0
LAN (10/100)
3.5 mm jack
HDMI™
micro SD
micro USB (current)

Wi-Fi: b/g/n

Bluetooth: 4.1

Power supply (LOV): via USB

Output voltage: 5 V DC

Output current: 2.5 A

Content: PSU
Housing

Length: 85 mm

Width: 56 mm

Height: 17 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2299358 TRU COMPONENTS Pure Set Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz PSU, Housing

Conformity certificate

Conformity certificate 2299358 TRU COMPONENTS Pure Set Raspberry Pi® 3 B 1 GB 4 x 1.2 GHz PSU, Housing

Description

This Pure Set is the perfect basis for your Raspberry Pi® 4 B. This gives you all the accessories you need to get your credit card-sized PC up and running.

The core piece - the Raspberry Pi® 3B
of the Raspberry Pi® 3 B was equipped with an ARM Cortex A53 64-bit processor (4x 1.2 GHz). Compared to the Raspberry Pi® 2 B, the Raspberry Pi® 3B offers the following upgrades:
- ARM Cortex A53 Quad-Core processor 4x 1.2 GHz (Raspberry Pi® 2 - ARM Cortex A7 4x 900 MHz)
- BCM43143 WiFi onboard (Raspberry Pi® 2 - no WiFi)
- Bluetooth Low Energy (BLE) onboard (Raspberry Pi® 2 - no Bluetooth)no overheating - including active fans
, this high-quality aluminum housing protects your Raspberry Pi® from negative environmental influences such as dirt, mechanical effects and electromagnetic interference. In addition to the elegant look, this aluminum case is also significantly more robust than plastic or acrylic housing. The active fan integrated in the cover (30 x 30 mm) provides for an ideal cooling even with high computing work. The openings on the top of the housing ensure optimum air circulation.

Convenient on/off switch operation means
that the Raspberry Pi® is switched on and off due to a missing switch by connecting the USB cable to the power supply. With the convenient power supply and the USB cable, you can easily switch your Raspberry or other single-board computer on and off without having to unplug the plug each time.
