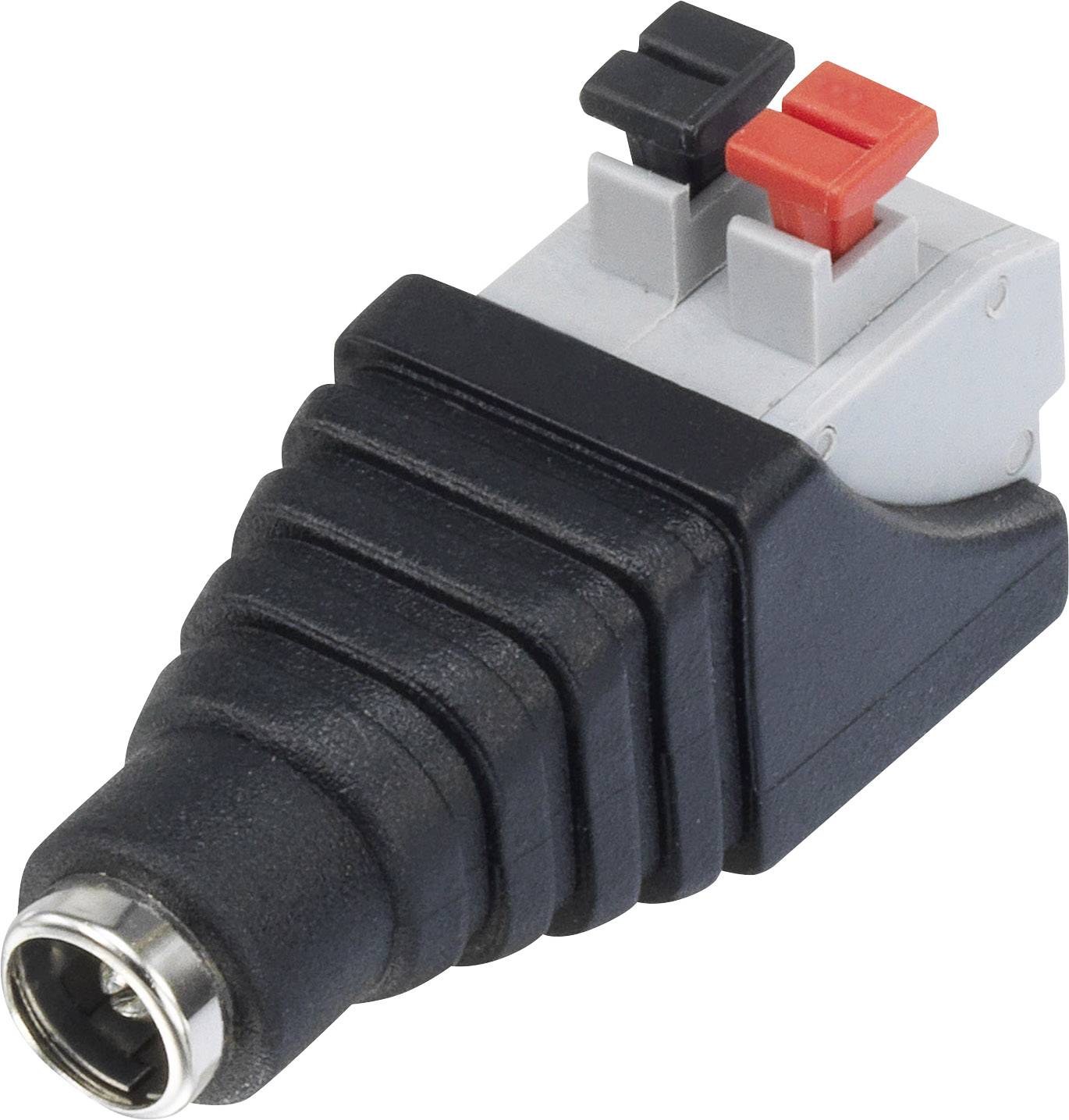

TRU COMPONENTS QT-DC2.1F Low power connector Socket, straight 5.5 mm 2.1 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Low power connector
Connector type
Socket, straight
Nominal current - rounded value
5 A
Outside Ø
5.5 mm
Inside diameter
5.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details

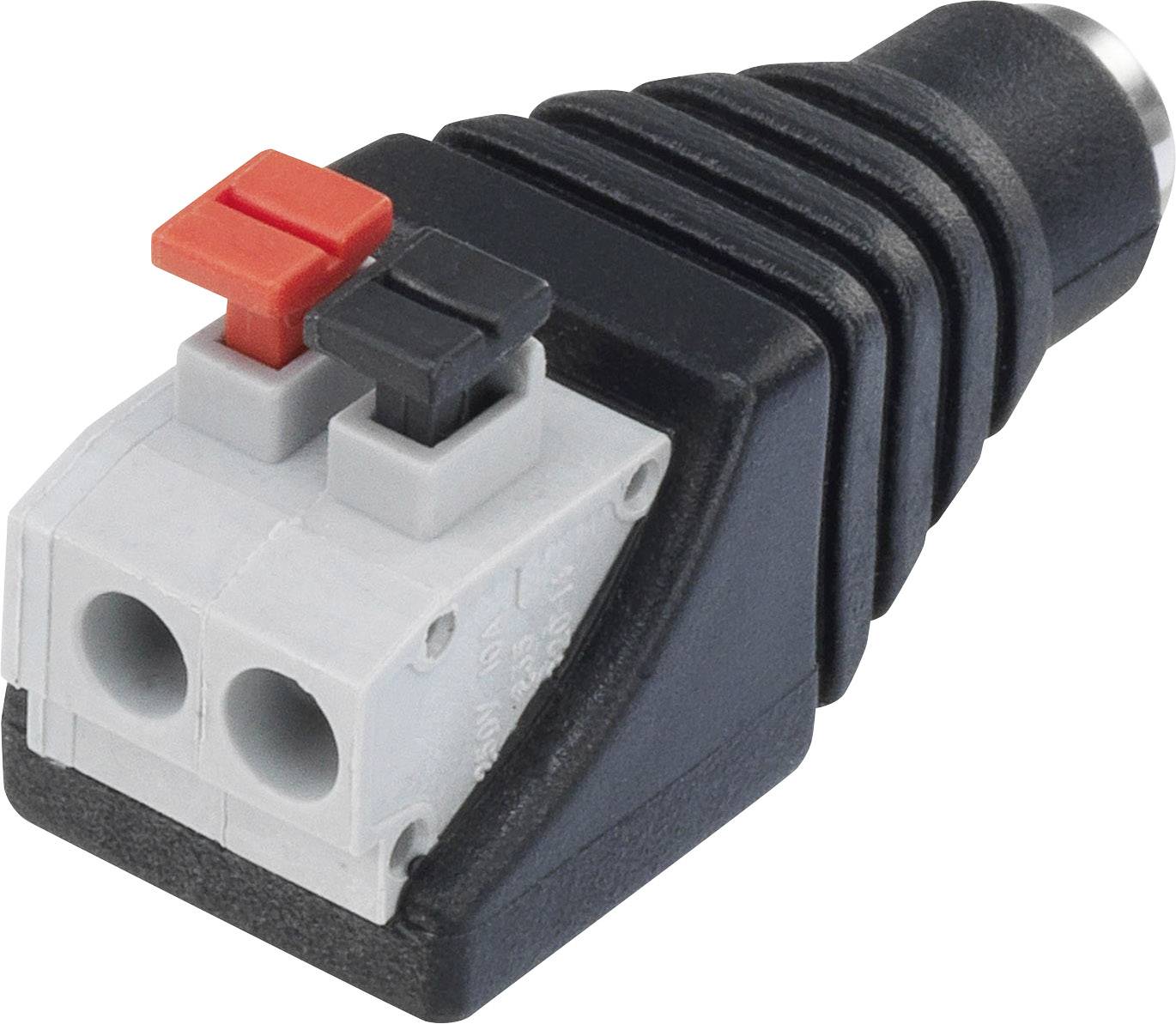

Low-voltage socket 5.5/2.1 mm spring load
- 5.5 mm
- 2.1 mm
Technical specifications
- Rated voltage: 12 V/DC
- Rated current: 5 A
- Contact resistance: 0 mΩ
- Insulation resistance: 5000 MΩ
- Torque: 0.5 Nm
- Strip length: 8 - 9 mm
- Product type
Low power connector
- Nominal current
5 A
- Connector type
Socket, straight
- Nominal current - rounded value
5 A
- Outside Ø
5.5 mm
- Inside diameter
5.5 mm
- Pin Ø
2.1 mm
- Connection
Pull spring
- Nominal voltage
12 V DC
- Content
1 pc(s)
- Manufacturer part #
TC-8829780
- Type
QT-DC2.1F
22 - 16
- Width
17 mm
- Height
32 mm
- Length
66 mm
- Temperature range
-40 - +105 °C
