TRU COMPONENTS Relay card Component 5 V DC
EAN:
Part number:
Item no:
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details
USB 4-fold relay card
- Control software (timer, presence simulation, etc.)
- Documentation and examples for development of control software
Technical specifications
- Version
Component
- Dim
(L x W x H) 72 x 76 x 16 mm
- Height
16 mm
- Length
72 mm
- Width
76 mm
- No. of relay outputs
1
- Relay current
8 A
- Operating voltage
5 V DC
- Plastic free packaging
Plastic-free packaging
- Product type
Relay card
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2256179 TRU COMPONENTS Relay card Component 5 V DC
Download
Download 2256179 TRU COMPONENTS Relay card Component 5 V DC
Download 2256179 TRU COMPONENTS Relay card Component 5 V DC
Description
This text is machine translated.
The relay card contains four relay with changeover contacts attached electrical appliances. The activation of the relay is powered via USB (Windows ® operating system required for Windows ® XP). The control software (via free download available) allows you to switch on/off the relay, switching state query, presence simulation (accidental switching of the relay) and timer function with 10 adjustable switching times (daily and weekly program). The source code examples (Visual Basic.net, VC++), which are also available via download, can be adapted to the requirements and extended.
The relay card contains four relay with changeover contacts attached electrical appliances. The activation of the relay is powered via USB (Windows ® operating system required for Windows ® XP). The control software (via free download available) allows you to switch on/off the relay, switching state query, presence simulation (accidental switching of the relay) and timer function with 10 adjustable switching times (daily and weekly program). The source code examples (Visual Basic.net, VC++), which are also available via download, can be adapted to the requirements and extended.
Scope of delivery
- USB 4-fold relay card
- User manual.
Hints

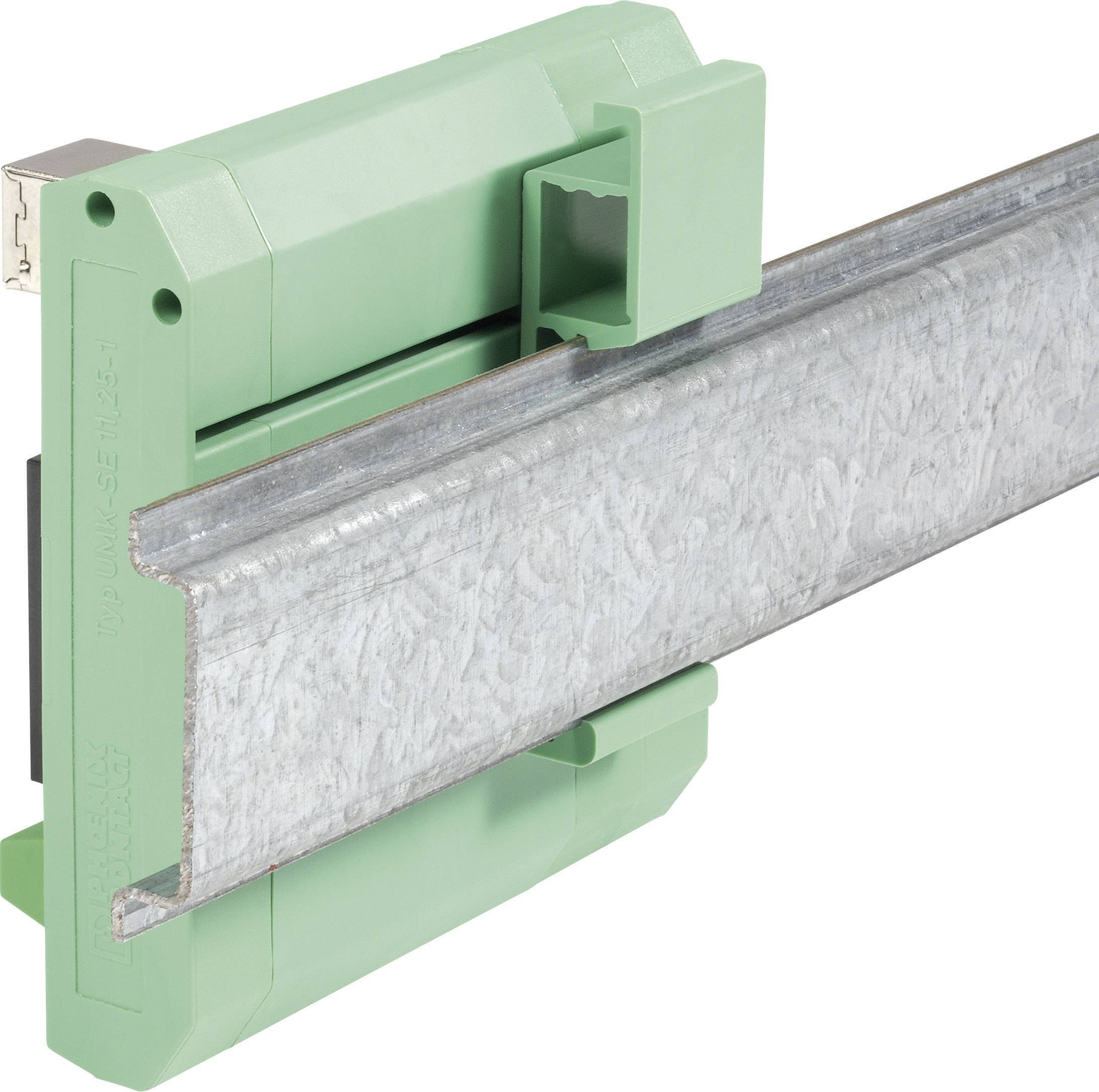

Recommended Accessories Phoenix Contact Structure housing for DIN rail mounting, consisting of 2 x UMK side element UMK-SE 11.25-1 (order no.: 74 32 23)
1x base element UMK UMK- BE 45 (order no.: 74 32 63)
1x base element UMK UMK- BE 11.25 (order no.: 74 32 37)
1 x base element UMK UMK- FE (Order No. 74 32 77)
USB-cable plug type A on plug type B (order no. 97 35 69).
