TRU COMPONENTS RS-OV7949-1818 Colour camera module 1 pc(s) 5 V DC (max) (L x W x H) 30 x 21 x 15 mm
EAN:
Part number:
Item no:
Product type
Colour camera module
Type
RS-OV7949-1818
Sensor type
CMOS
Sensor size
8.5 mm (1/3")
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Highlights & Details
CMOS mini color camera module
Our service for you
Technical specifications
- Illumination: 1.5 lx
- Output signal: Standard Video Out 1V PP (75 Ω)
- 2:1 interlaced scanning:
- Effective Screen size: 5,961 x 4,276 mm
- Signal-to-noise ratio:> 48 dB
- Dynamic range:> 72 dB
- Product type
Colour camera module
- Type
RS-OV7949-1818
- Sensor type
CMOS
- Sensor size
8.5 mm (1/3")
- Content
1 pc(s)
- Max. operating voltage
5 V DC
- Operating voltage
5 V DC (max)
- Max. current consumption
45 mA
- Resolution (TVL)
340 TVL
- Pic resolution
628 x 582 Pixel
- Resolution
365496 p
- F-number
f/1.6 (max)
- Max. focal length
6 mm
- Focal length (range)
6 mm (max)
- Angular aperture
FOV 51 ° x 43 °
- Length
30 mm
- Width
21 mm
- Height
15 mm
- Dim
(L x W x H) 30 x 21 x 15 mm
Documents & Downloads
Datasheet
Datasheet 1570575 TRU COMPONENTS RS-OV7949-1818 Colour camera module 1 pc(s) 5 V DC (max) (L x W x H) 30 x 21 x 15 mm
User & Safety Instructions
User & Safety Instructions 1570575 TRU COMPONENTS RS-OV7949-1818 Colour camera module 1 pc(s) 5 V DC (max) (L x W x H) 30 x 21 x 15 mm
Description

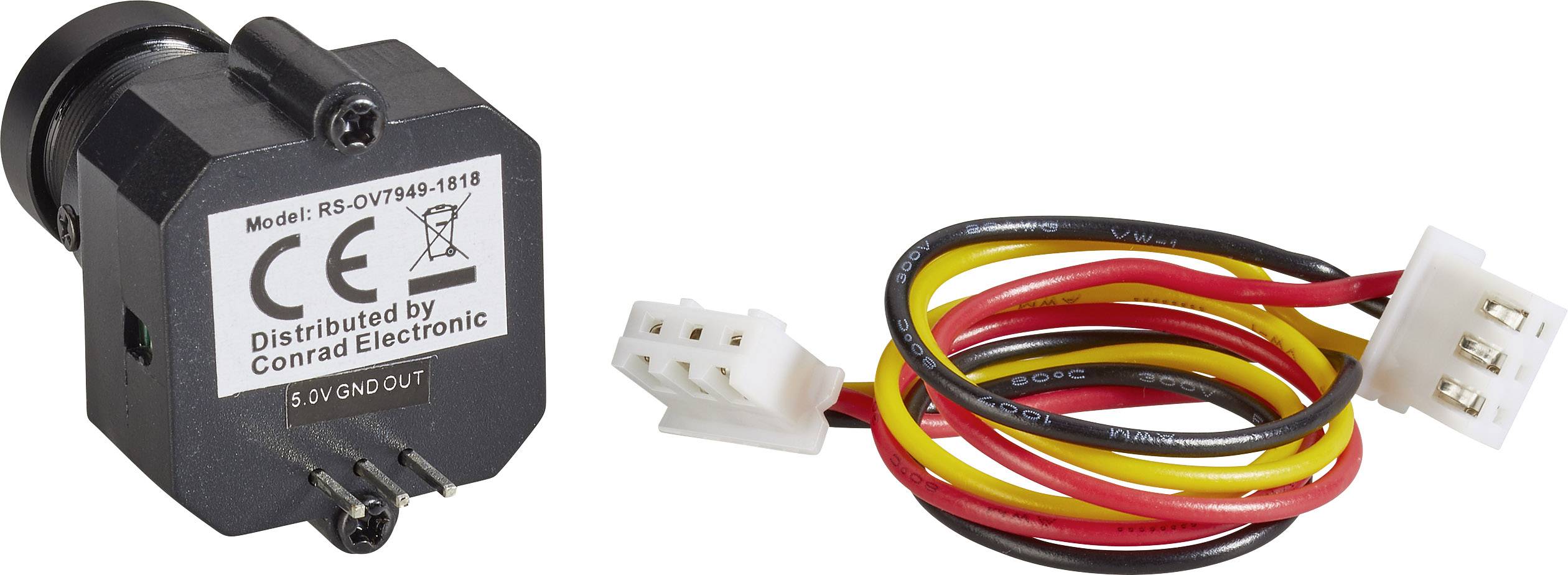

PAL color camera with high resolution, compact design, low power consumption and good image quality. The connection of the operating voltage, earth and video signal is done via connection pins.
