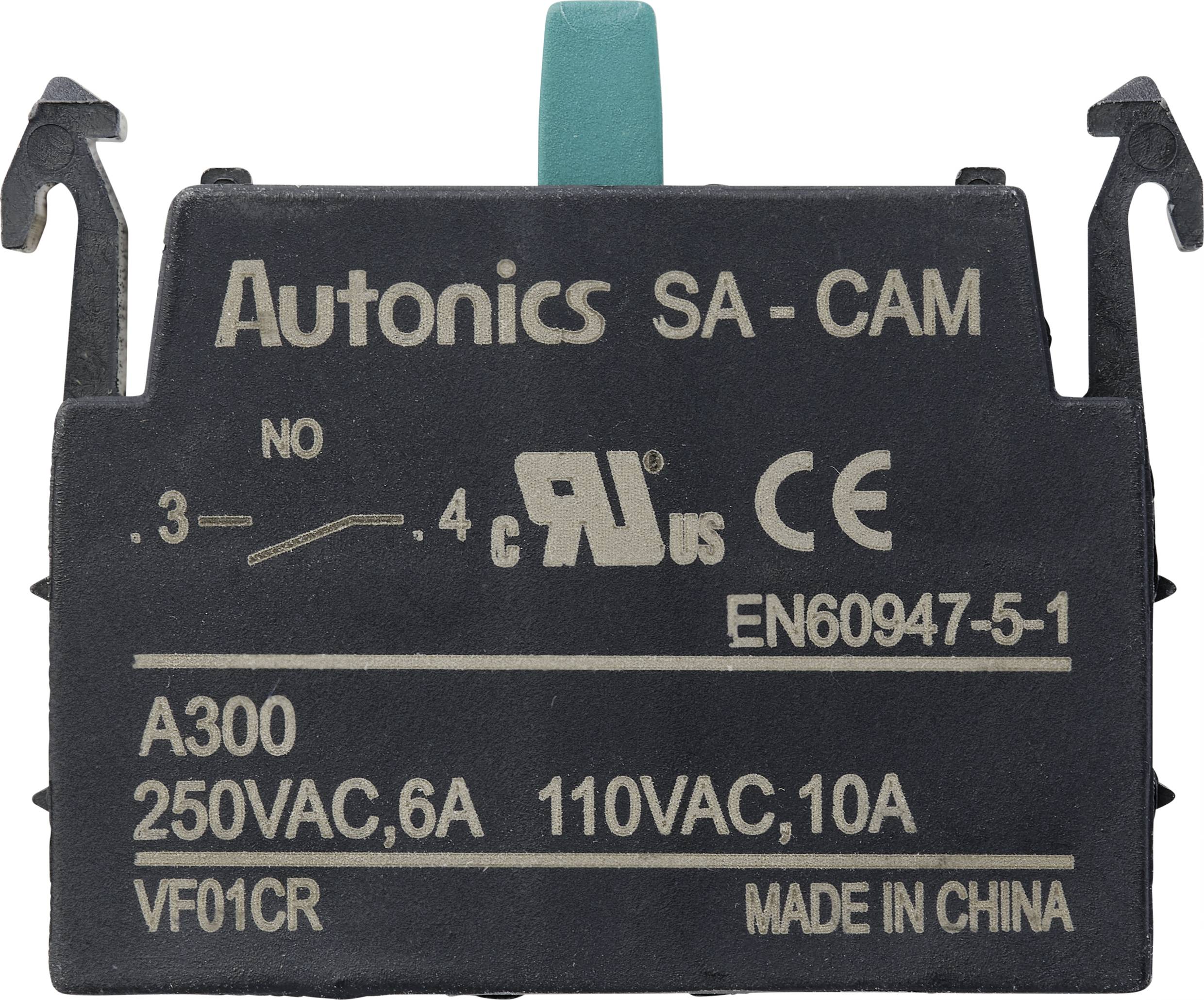

TRU COMPONENTS SA-CAM Contact 1 maker 110 V, 250 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS Contact SA-CAM 1 maker
- Contact block for Ø22/25 selector switch
- A Contact, normally open
- Modular type
- Loose screw prevention
Technical specifications
- Packaging type
Piece
- Product type
Contact
- Switch/button features
stackable
- Connection
Screw terminal
- Type
Modular type contact block
- Functions
Contact
- Contact type
1 maker
- Contact material
AgNi
- Switch position
1 NC
- Switching voltage
110 V
250 V
- Switching current (max.)
10 A
- Length
37.6 mm
- Width
10.2 mm
- Height
31.4 mm
- Content
1 pc(s)
- Dim
(L x W x H) 37.6 x 10.2 x 31.4 mm
- Type
SA-CAM
Documents & Downloads
Datasheet
Datasheet 2465054 TRU COMPONENTS SA-CAM Contact 1 maker 110 V, 250 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2465054 TRU COMPONENTS SA-CAM Contact 1 maker 110 V, 250 V 1 pc(s)
Description
Features
- Power supply/current 110 VAC~/10 A, 250 VAC~/6ADielectric strength 2,500 VAC 50/60 Hz for 1 minuteInsulation resistance > 1,000 MO (500 VDC= Megger)Forward resistance < 20 MQ (initial)Electrical life > : 100,000 cycles (20 per min)Contact material: AgNi10
