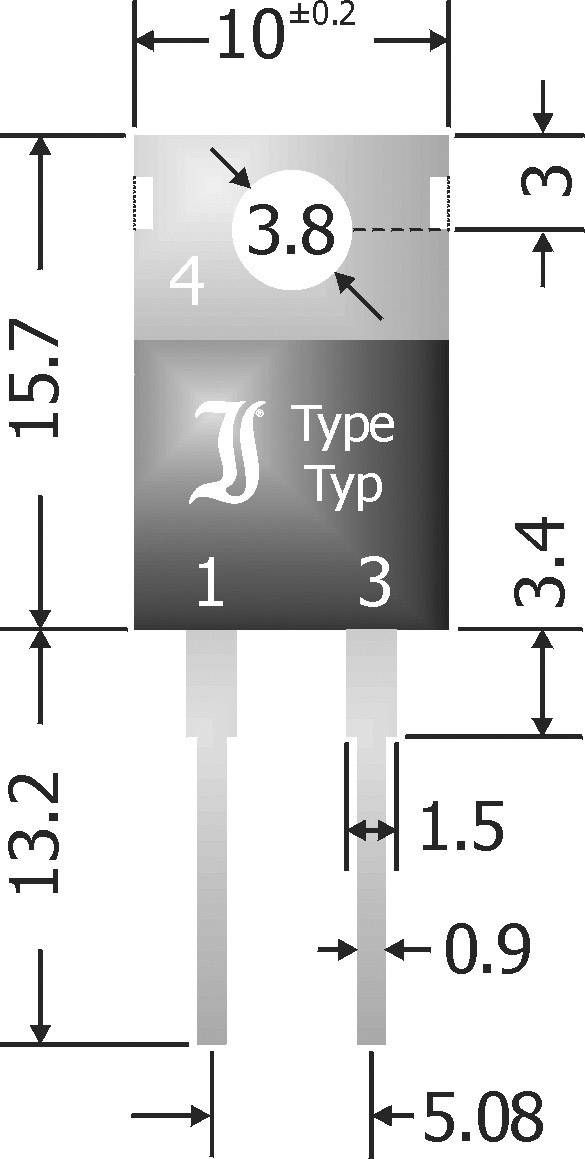

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
TRU COMPONENTS Schottky barrier rectifier TC-SBT1040 TO 220AC 40 V 10 A
EAN:
Part number:
Item no:
Product type
Schottky barrier rectifier
Enclosure
TO 220AC
Forward current I(F)
10 A
Reverse voltage U(R)
40 V
Forward voltage U(F)
0.55 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.64
15
8% = € 0.05
€ 0.59
25
12% = € 0.08
€ 0.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.64 / piece)
€ 3.20
plus VAT.
14-day return policy included
Highlights & Details
Schottky barrier rectifier Diotec SBT1040 40 V 10 A
Our service for you
Technical specifications
- Type
TC-SBT1040
- Product type
Schottky barrier rectifier
- Enclosure
TO 220AC
- Manufacturer
TRU COMPONENTS
- Manuf. code
TRU
- Forward current I(F)
10 A
- Reverse voltage U(R)
40 V
- Forward voltage U(F)
0.55 V
- Forward voltage reference
10 A
- Reverse leakage current I(r)
7 mA
- Reverse leakage current I(r) reference
40 V
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Through-hole
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1582002 TRU COMPONENTS Schottky barrier rectifier TC-SBT1040 TO 220AC 40 V 10 A
User & Safety Instructions
User & Safety Instructions 1582002 TRU COMPONENTS Schottky barrier rectifier TC-SBT1040 TO 220AC 40 V 10 A
