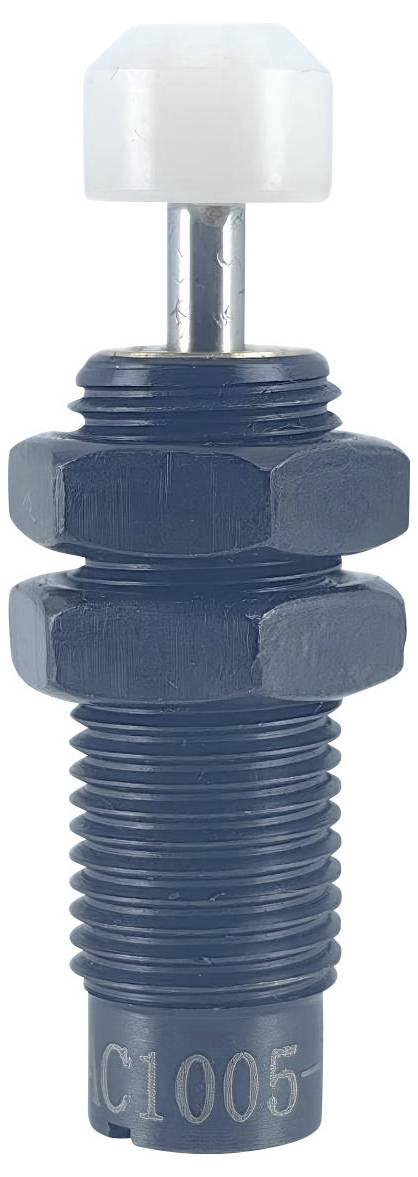

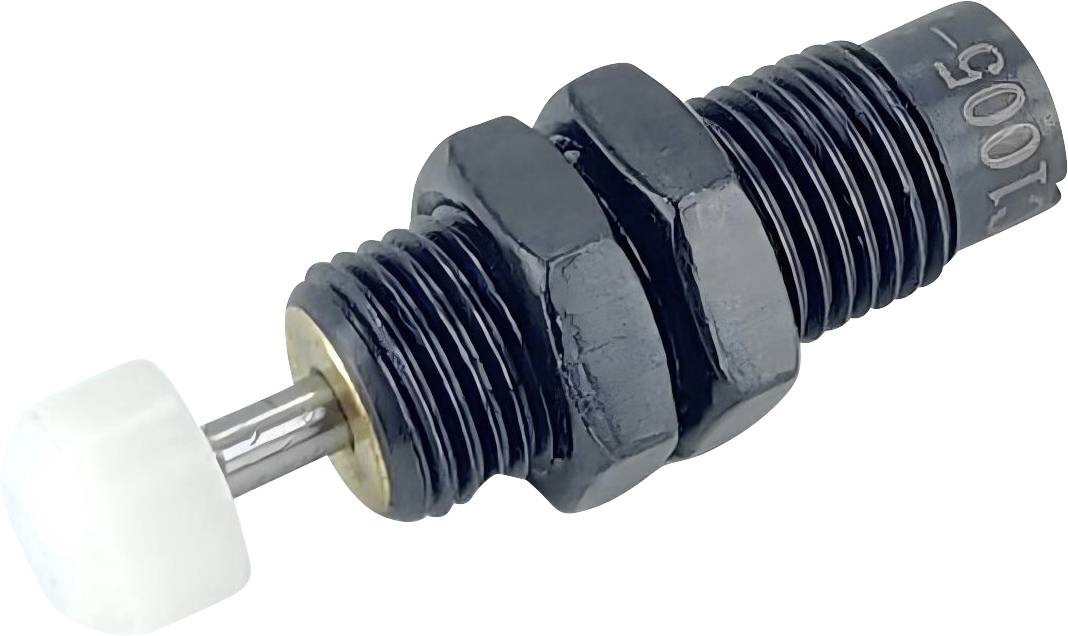

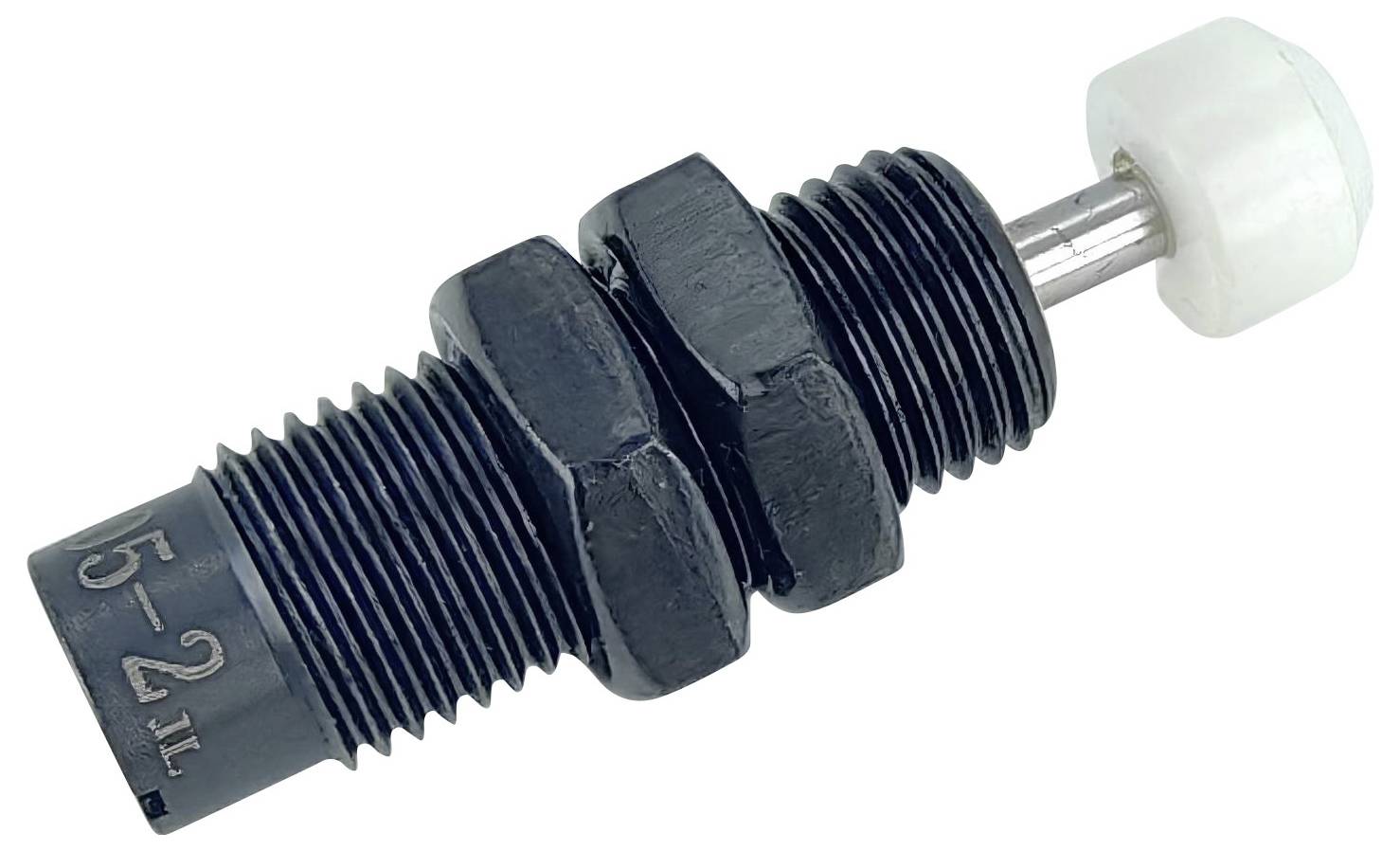

TRU COMPONENTS Shock absorber TC-14330864 TC-AC1005-2 Enclosure material: Steel Stroke length: 5 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details

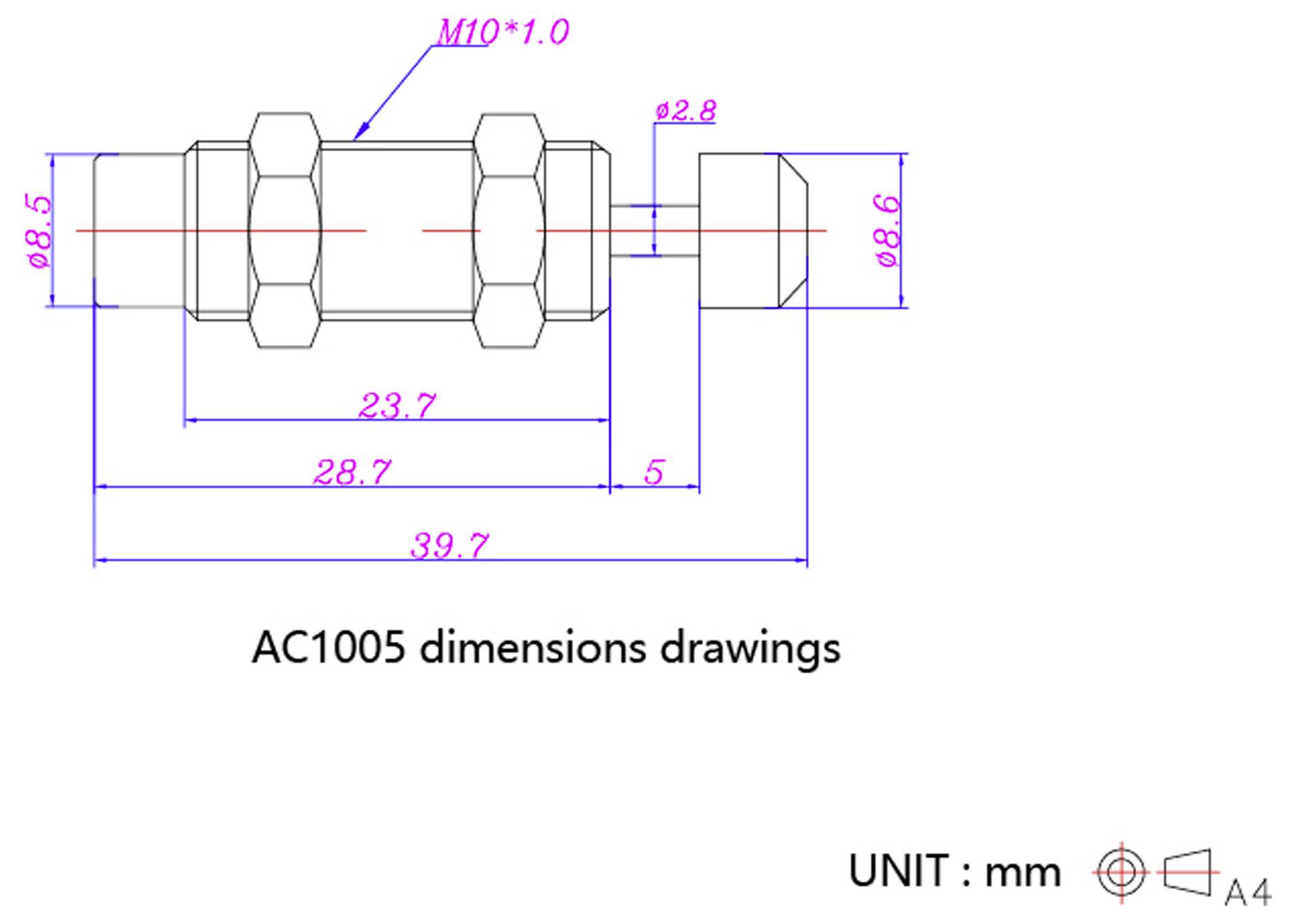

Self-compensating shock absorber M10 x 1.0, stroke: 5mm
- Stroke length: 5 mm
- Thread: M10 x 1.0
- Max. effective weight (kg): 3.0
- Max. impact speed (m/s): 1.5
Technical specifications
- Product type
Shock absorber
- Stroke length
5 mm
- (Ø)
8.5 mm
- Manufacturer part #
TC-14330864
- Thread mount
M10 x 1
- Sealant
NBR
- Enclosure material
Steel
- Piston rod material
Stainless steel
- Piston rod diameter
2.8 mm
- Operating principle
Single-acting
Documents & Downloads
Datasheet
Datasheet 3582716 TRU COMPONENTS Shock absorber TC-14330864 TC-AC1005-2 Enclosure material: Steel Stroke length: 5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3582716 TRU COMPONENTS Shock absorber TC-14330864 TC-AC1005-2 Enclosure material: Steel Stroke length: 5 mm 1 pc(s)
