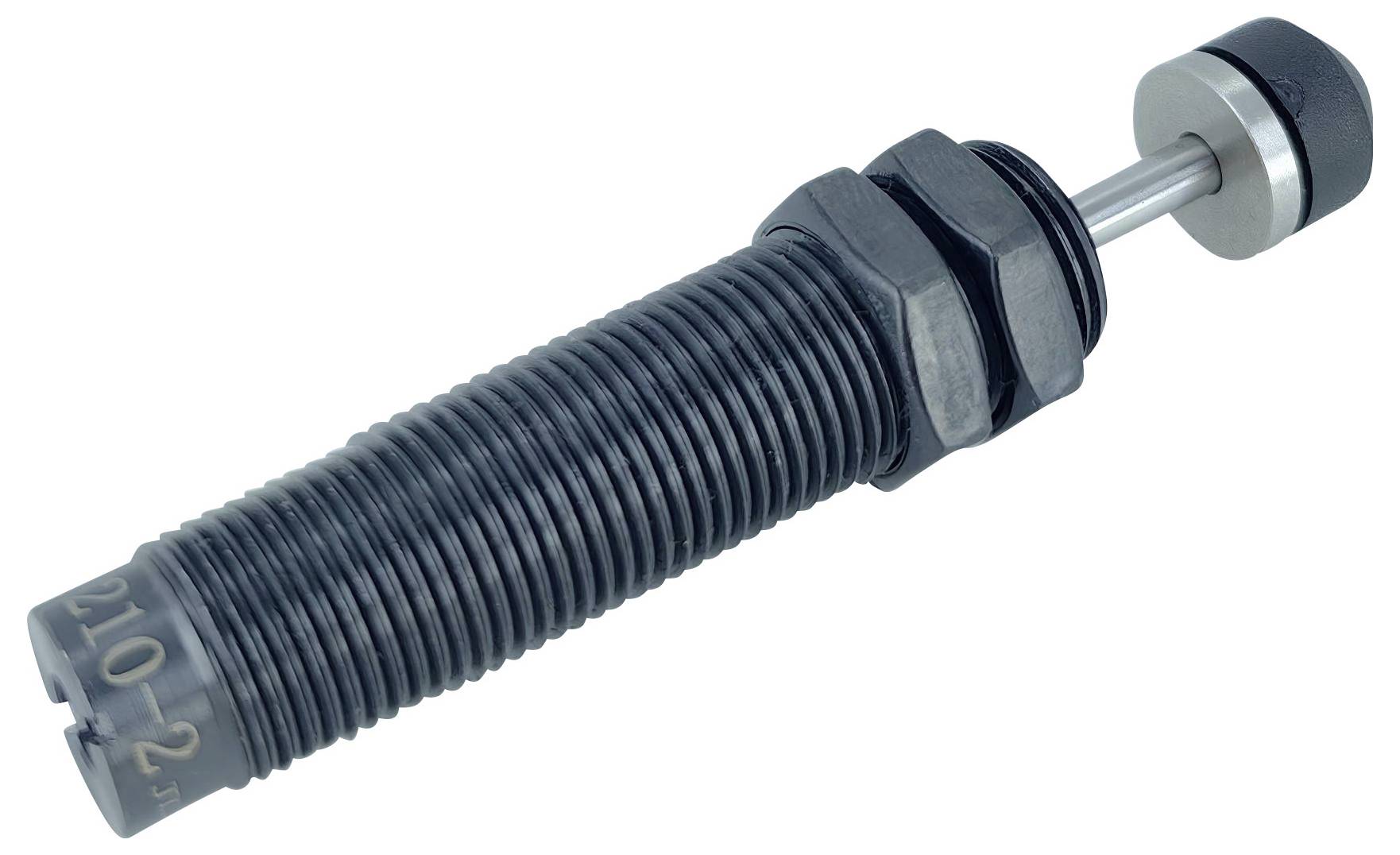

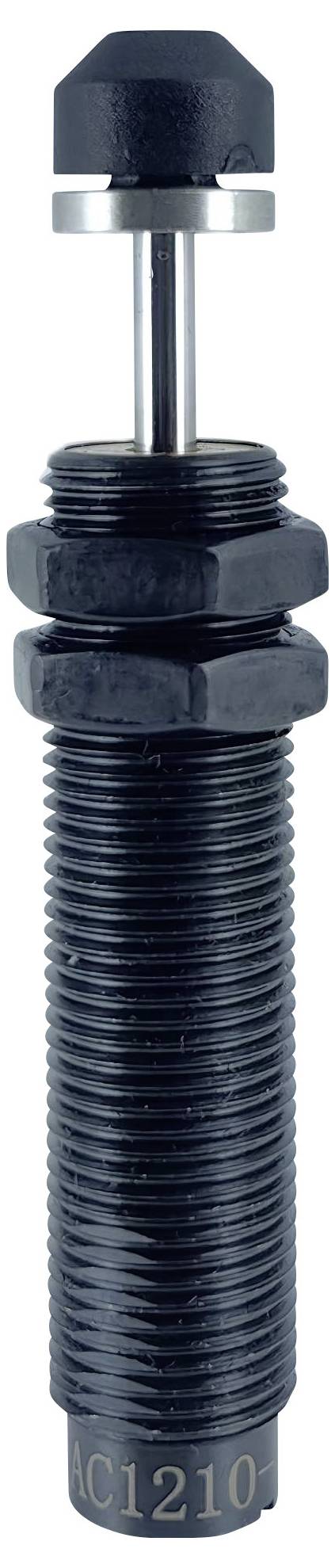

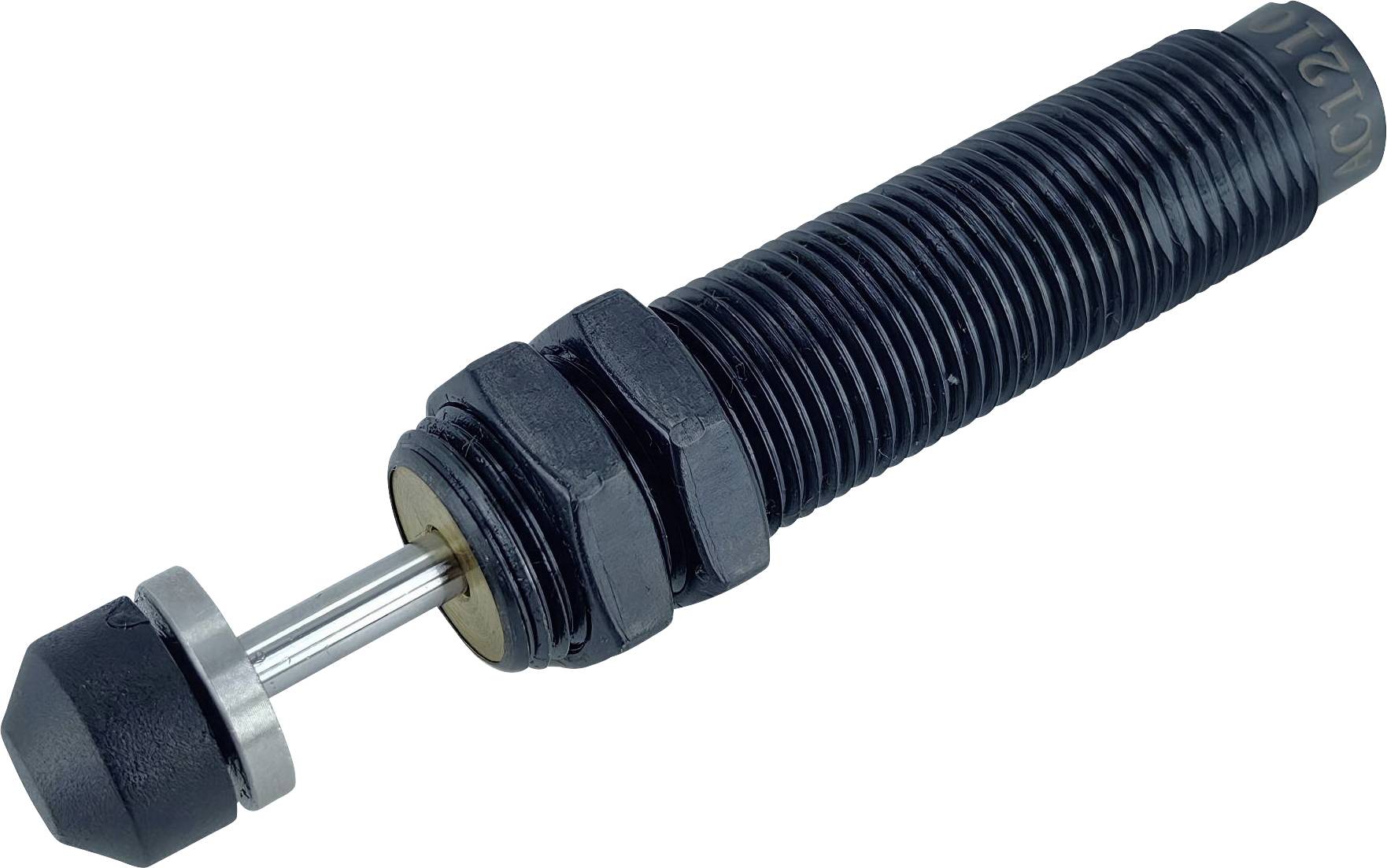

TRU COMPONENTS Shock absorber TC-14330872 TC-AC1210-2 Enclosure material: Steel Stroke length: 10 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
Self-compensating shock absorber M12 x 1.0, stroke: 10 mm
- Stroke length: 10 mm
- Thread: M12 x 1.0
- Max. effective weight (kg): 10.0
- Max. impact speed (m/s): 1.5
Technical specifications
- Product type
Shock absorber
- Stroke length
10 mm
- (Ø)
10.2 mm
- Manufacturer part #
TC-14330872
- Thread mount
M12 x 1
- Sealant
NBR
- Enclosure material
Steel
- Piston rod material
Stainless steel
- Piston rod diameter
3 mm
- Operating principle
Single-acting
