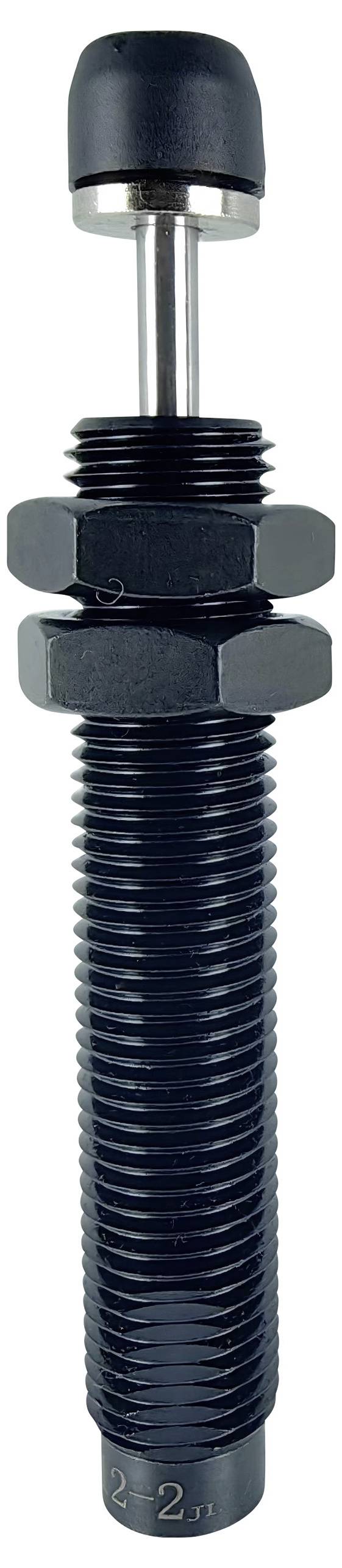

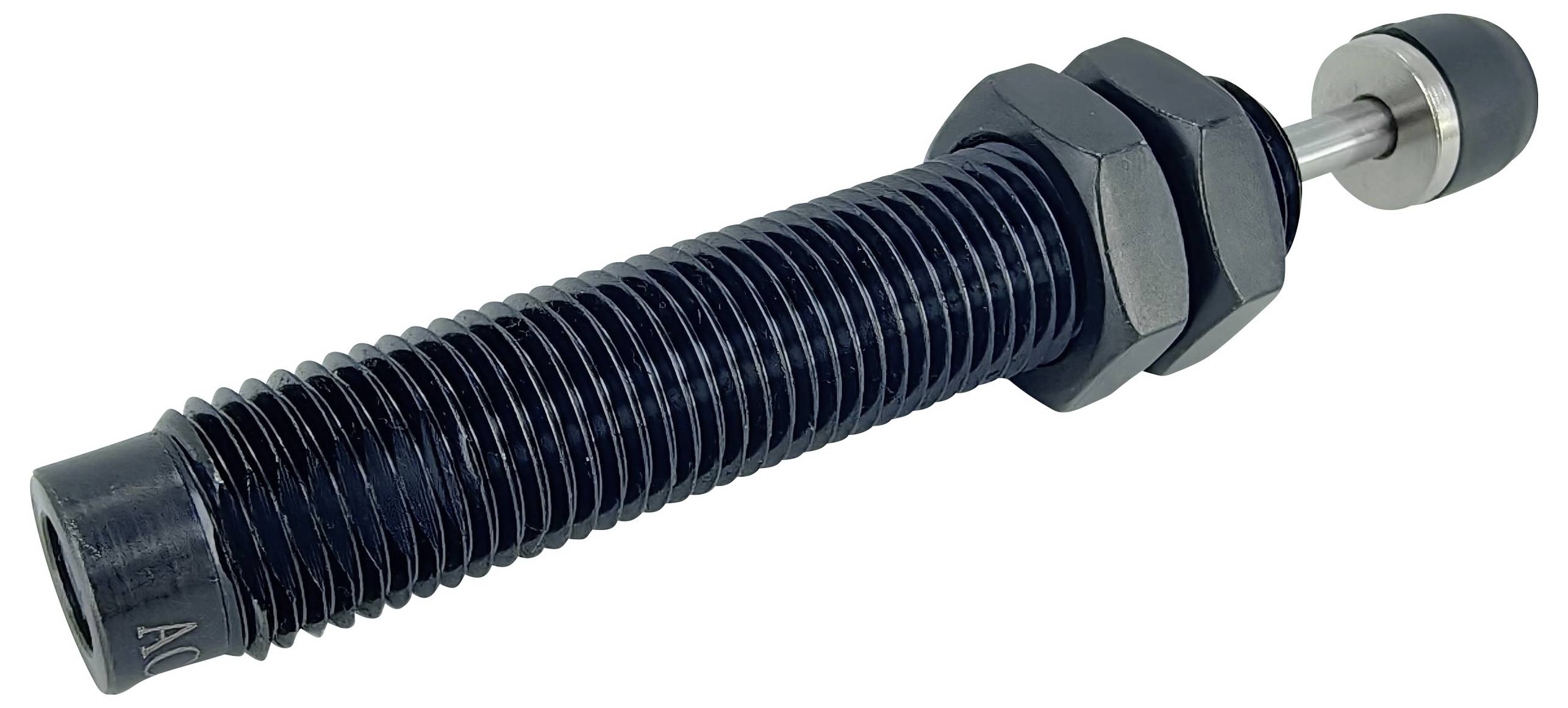

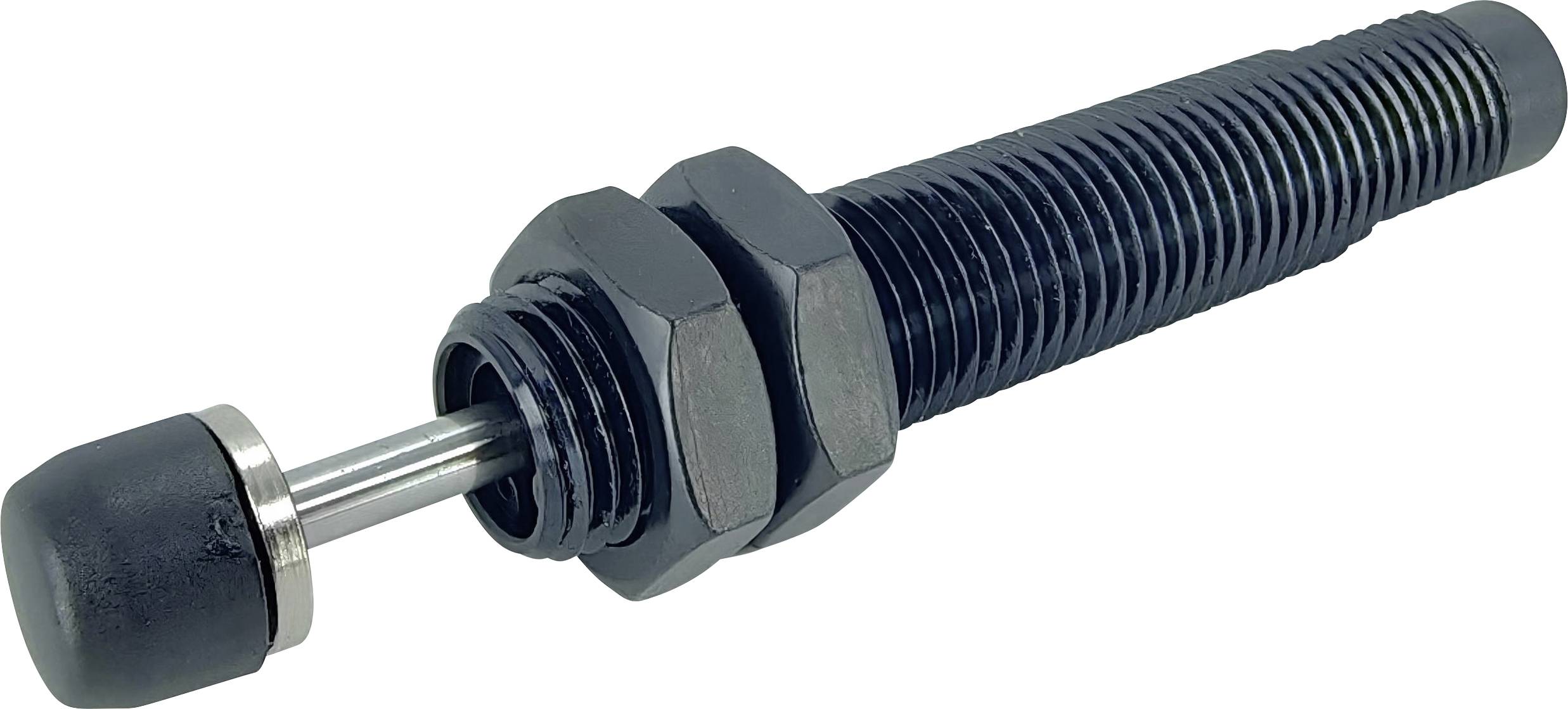

TRU COMPONENTS Shock absorber TC-14330876 TC-AC1412-2 Enclosure material: Steel Stroke length: 12 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Highlights & Details

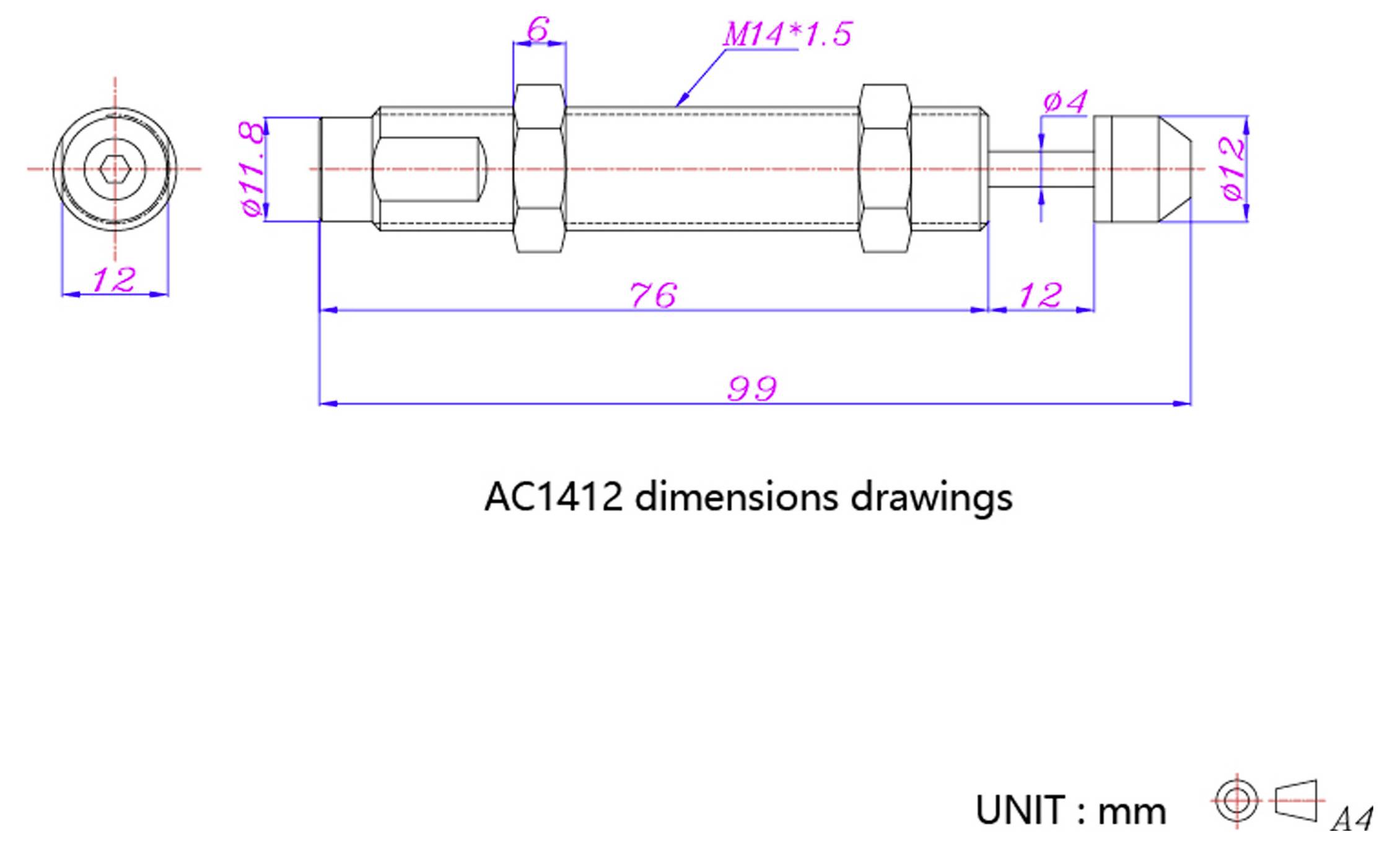

Self-compensating shock absorber M14 x 1.5, stroke: 12 mm
- Stroke length: 12 mm
- Thread: M14 x 1.5
- Max. effective weight (kg): 50.0
- Max. impact speed (m/s): 1.5
Technical specifications
- Product type
Shock absorber
- Stroke length
12 mm
- (Ø)
11.8 mm
- Manufacturer part #
TC-14330876
- Thread mount
M14 x 1.5
- Sealant
NBR
- Enclosure material
Steel
- Piston rod material
Stainless steel
- Piston rod diameter
4 mm
- Operating principle
Single-acting
Documents & Downloads
Datasheet
Datasheet 3582719 TRU COMPONENTS Shock absorber TC-14330876 TC-AC1412-2 Enclosure material: Steel Stroke length: 12 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3582719 TRU COMPONENTS Shock absorber TC-14330876 TC-AC1412-2 Enclosure material: Steel Stroke length: 12 mm 1 pc(s)
