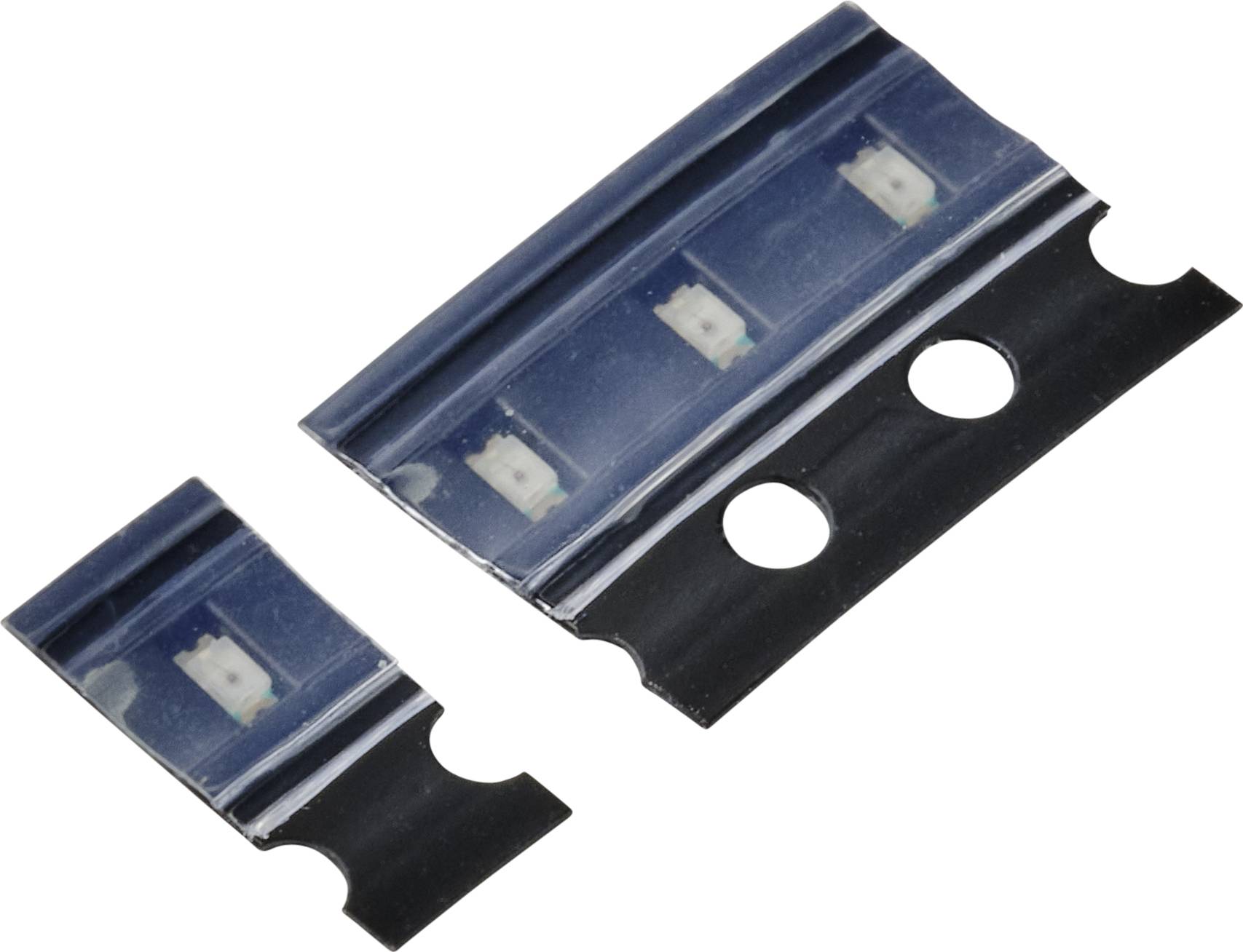

TRU COMPONENTS SMD LED Ice blue 140 mcd 120 ° 5 mA 2.8 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.8 V
Forward current I(F)
5 mA
Light intensity I(V)
140 mcd
Radiation angle
120 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.22
15
9% = € 0.02
€ 0.20
25
14% = € 0.03
€ 0.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.22 / piece)
€ 1.10
plus VAT.
14-day return policy included
Technical specifications
- Product type
SMD LED
- Type
Chip
- Factory colour
Ice blue
- Forward voltage U(F)
2.8 V
- Forward current I(F)
5 mA
- Light intensity I(V)
140 mcd
- Radiation angle
120°
- Type
0603
- Dim
(L x W x H) 1.6 x 0.8 x 0.6 mm
- Length
1.6 mm
- Width
0.8 mm
- Min. temperature
-40 °C
- Height
0.6 mm
- Max. temperature
85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2377734 TRU COMPONENTS SMD LED Ice blue 140 mcd 120 ° 5 mA 2.8 V
User & Safety Instructions
User & Safety Instructions 2377734 TRU COMPONENTS SMD LED Ice blue 140 mcd 120 ° 5 mA 2.8 V
Description
Backlighting(switches, keys, etc)
Marker lights (steps, exit ways, etc)
Marker lights (steps, exit ways, etc)
Features
- Super high brightness of surface mount LED
- Compatible to IR reflow soldering
- Compact package outline 1.6 x 0.8 x 0.6 mm
Scope of delivery
- Main unit
Hints
Full details free to download from our comprehensive product documents library. All standard LED chips require a current-limiting resistor/constant current power source.
