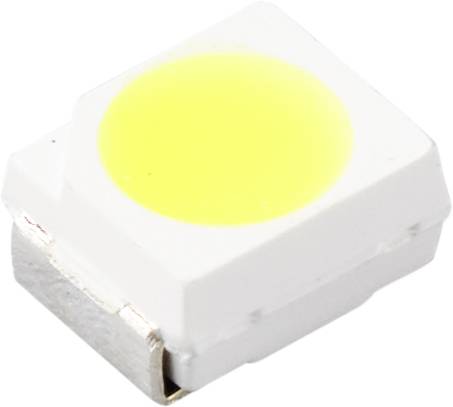

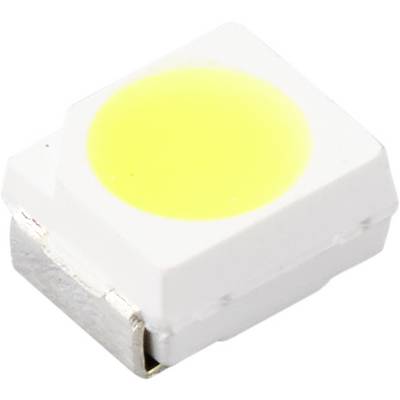

TRU COMPONENTS SMD LED Warm white 1250 mcd 120 ° 20 mA 3.1 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
3.1 V
Forward current I(F)
20 mA
Light intensity I(V)
1250 mcd
Radiation angle
120 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.49
15
8% = € 0.04
€ 0.45
25
12% = € 0.06
€ 0.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.49 / piece)
€ 2.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
SMD LED
- Type
SMD
- Factory colour
Warm white
- Forward voltage U(F)
3.1 V
- Forward current I(F)
20 mA
- Light intensity I(V)
1250 mcd
- Radiation angle
120°
- Type
PLCC2
Water Clear
- Dim
(L x W x H) 3.5 x 2.8 x 1.7 mm
- Length
3.5 mm
- Width
2.8 mm
- Min. temperature
-30 °C
- Height
1.7 mm
- Max. temperature
85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2377629 TRU COMPONENTS SMD LED Warm white 1250 mcd 120 ° 20 mA 3.1 V
User & Safety Instructions
User & Safety Instructions 2377629 TRU COMPONENTS SMD LED Warm white 1250 mcd 120 ° 20 mA 3.1 V
Description
Backlighting (switches, keys, etc)
Marker lights (steps, exit ways, etc)
Signal and channel letter
Other lighting
Marker lights (steps, exit ways, etc)
Signal and channel letter
Other lighting
Features
- High Luminous PLCC2 Top SMD LEDs
- 3.5 x 2.8 x 1.7 mm Standard directivity
- UV resistant silicane
- water clear type
Scope of delivery
- Main unit
Hints
Full details free to download from our comprehensive product documents library. All standard LED chips require a current-limiting resistor/constant current power source.
